We Tianjin Ansheng Valve Co., Ltd specialize in valve manufacturing for 15 years, with best quality, best service and competitive price, and we are Alibaba Gold Supplier.
More services we can provide:
1. Professional free design
2. OEM support
3. Low MOQ
4.Fast delivery
5. Free sample
6. Door to door service

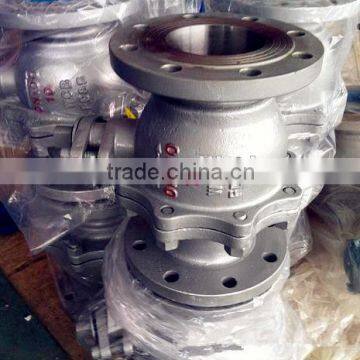

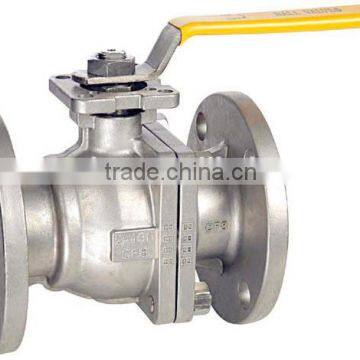

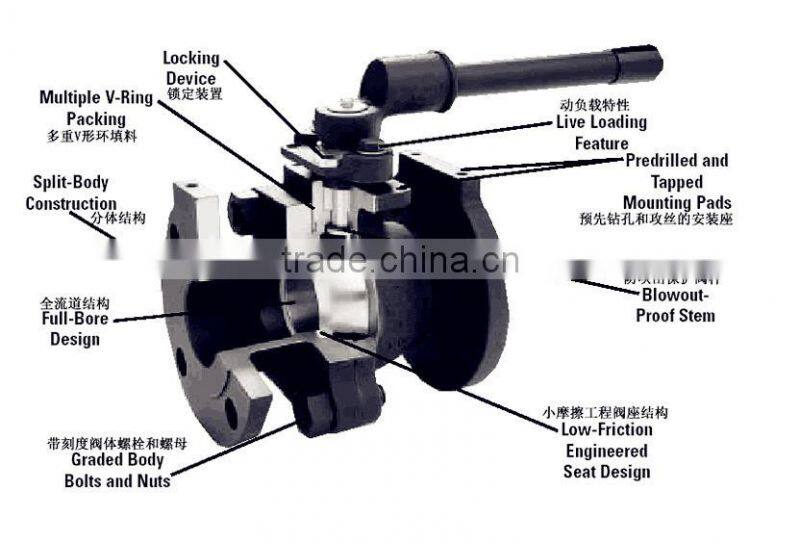

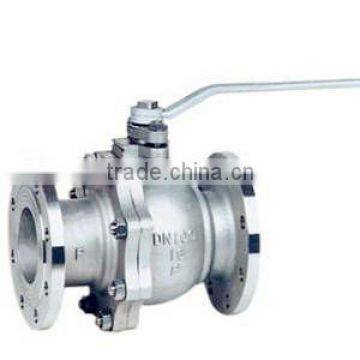

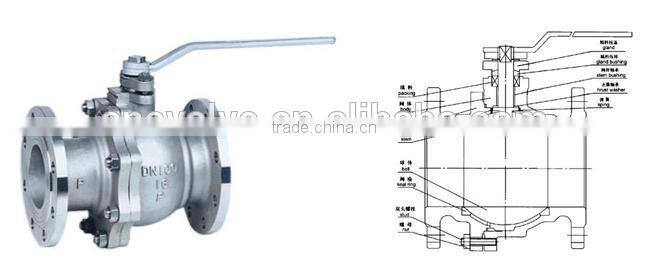

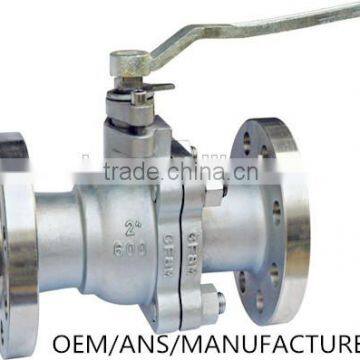

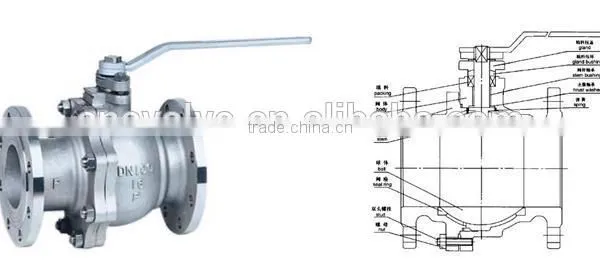

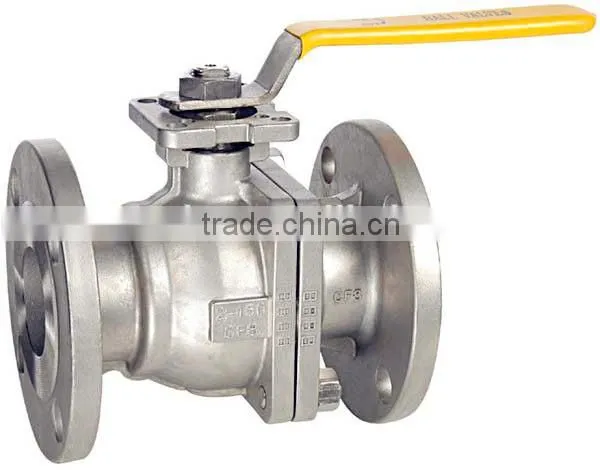

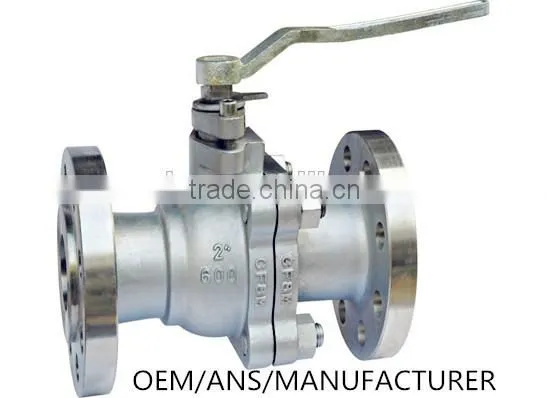

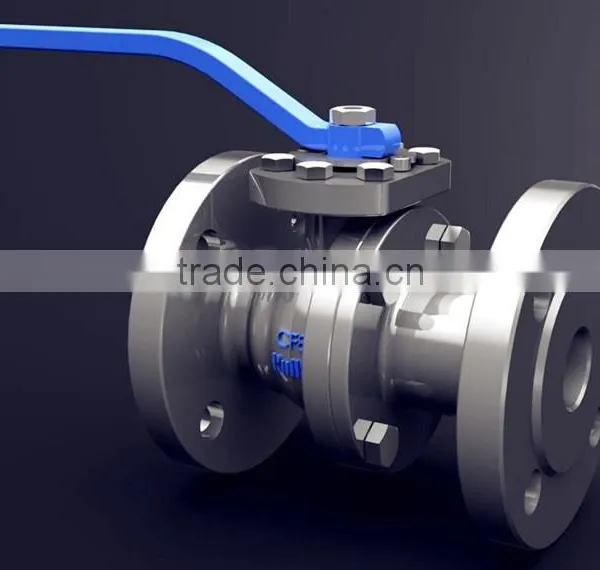

90 Degree Ball Valve
Material: Carbon steel, Forged steel, SS304 SS316 SS316L, etc.
Standard: ANSI, GB, JIS, DIN
Pressure: 1.6Mpa~32Mpa 150LB~600LB 5k~63k
End connection: RF/RTJ Flanged ends
Working Temperature:-160~550C
Bore: Full bore
Type: Floating type Trunion type
Medium: Water, Oil, Gas, Nitric Acid, etc.
Standard Design:
Valve Type |
Design and Manufacture |
Face to Face |
Flanged Dimensions |
Temperature Pressure |
Test- Inspect |
FLOATING |
BS5351 |
ANSI B16.10 |
ANSI B16.5 |
ANSI B16.34 |
API1598 |
TRUNNION |
API 6D |
|
|
|
API16D |
Specifications | ||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||

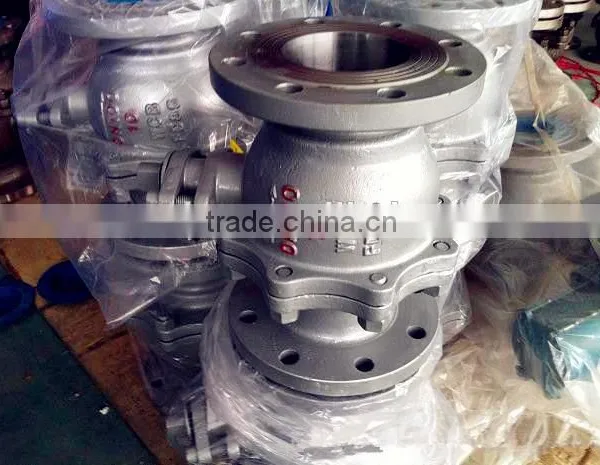

Packing and Transport:
1.100% factory price, because we are direct producer of butterfly valves, check/non-return valves, gate valves and so on.
2.Market, technical support and after-sale service within 24 hours.
3. You can order your own configuration.
A: Manual B: pneumatic C: electric D: bare shaft E: disc with pin F: disc without pin G: double half shaft H: one piece body I: two pieces body J: logo
4.All valves are tested twice before and after hammer pin to ensure its perfect sealing property.
5.Valves' back seats are phenolic resin under DN350 while above DN400 are aluminium back seat to prolong its working life.
6.Concentric valves can ensure zero leakge.
Our factory & Workshop:
Our company established in year 2001. Our plant occupies 6000 square kilometers and we have more than 100 sets of lathes. We are professional Valve manufactuer for about 20 years. We have 4 Engineers, 10 more Technicians, 10 more Craftsmen.
