guide rail double beam travelling overhead bridge crane
1.Brief description of bridge overhead crane:
QD moudle bridge overhead crane is mainly composed of bridge, running gear of crane, trolly and electrical device, etc. It is devided into two working classes: A5 A6 according to the use grade and load-up condition. Safe slide wire or angle iron can be use for electric conduction of the crane; it can be either at the opposite side of the cab or at the same side of the cab. Operate of the rail overhead crane shall be finished in the cab.
2.Features of bridge overhead crane:
- Reasonable structure and favorable performance.
- Large lifting capacity.
- Soft starting and stopping.
- Easy installation and convenient maintenance.
- Excellent exchangeability for parts and components.
- Negotiable price.
3.Applications of bridge overhead crane:
QD type bridge overhead crane is widely used in plants, warehouses, factory,material stocks to lift goods. It is prohibited to use the equipment in the combustible,
explosive to corrosives environment.
4.Safty features of bridge overhead crane:
1) Weight overload protective device
2) Top quality polyurethane buffer
3) Crane traveling limit switch and lifting limit switch
4) Low voltage protection function
5) Emergency stop system
6) Current overload protection function.
7) Low noise, commodious cabin and good view
8) Convenient maintenance, excellent exchangeability for parts and components
5.Product parameters of bridge overhead crane:
| Lifting Capacity T | 5 | 10 | 16/3.2 | 20/5.0 | 25/5.0 | 32/5.0 | 50/10.0 | |||
| Span M | 10.5-31.5 | |||||||||
| Lifting height M | Main Hook | 16 | 16 | 16 | 12 | 12/11.0 | 16 | 12 | ||
| Aux Hook | 18 | 11 | 14/13 | 18 | 16 | |||||
| Speed M/min | hoist |
Main hook |
A5 | 12.5 | 8.5 | 7.9 | 7.2 | 7.3 | 7.8 | 5.9 |
| A6 | 15.5 | 13.3 | 13 | 9.7 | 9.8 | 9.5 | 7.8 | |||
|
Aux hook |
14.5 | 12.7 | 12.7 | 19.5 | 13.2 | |||||
|
Trolley traveling |
37.2 | 43.8 | 44.6 | 44.6 | 37 | 42.4 | 38.5 | |||
|
Bridge traveling |
A5 | 89.8 /92.3 | 89.8-91.9 | 84.7-87.6 | 84.7/ 87.6 | 85.5/88 | 74.2-87.6 | 74.6 | ||
| A6 | 116.2/ 117.4 | 112.5-116.8 | 112.5 | 112.5/ 101.4 | 112/ 101.4 | 86.8-101.4 | 87.3 | |||
| Weight Kg | Trolley | A5 | 2126 | 3424 | 6227 | 6856 | 7185 | 10877 | 15425 | |
| A6 | 2224 | 3562 | 6427 | 7180 | 7856 | 11652 | 15765 | |||
|
Total Weight |
A5 | 12715-31405 | 14270-34405 | 19128-39428 | 19947-41497 | 20795-42796 | 26901-52748 | 35317-64880 | ||
| A6 | 12991-31596 | 14719-34699 | 20045-41315 | 20984-44225 | 22632-16324 | 28061-55272 | 36075-67242 | |||
| Max Wheel Load KN | A5 | 74-125 | 102-160 | 141-205 | 163-231 | 185-255 | 237-327 | 333-450 | ||
| A6 | 75-126 | 104-162 | 145-211 | 167-239 | 189-263 | 242-335 | 336-457 | |||
| Rail recommended | Trolley | 15kg/m | 43kg/m | |||||||
| Bridge | 43kg/m | QU70 | QU80 | |||||||
| Power Source | 380V 50HZ 3Phase or based on your request | |||||||||

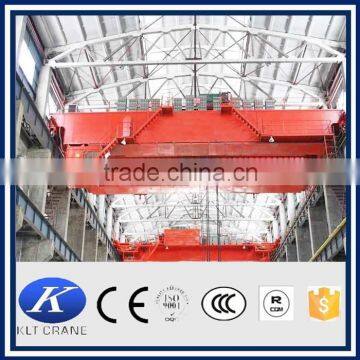

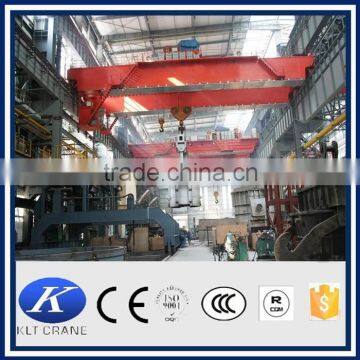

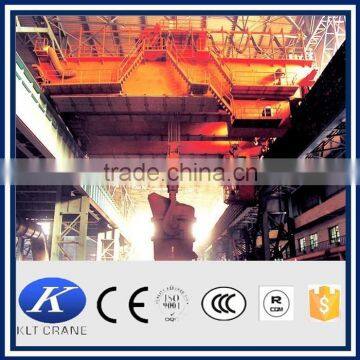

6.Product details show of bridge overhead crane:

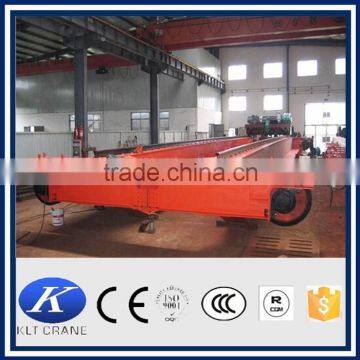

7.Product flow of bridge overhead crane:
All of our products are manufactured by standard process and excellent meterial.
8.Installations of bridge overhead crane:
9.We also have LDA series bridge overhead crane for your choise:
A: Introduction of LDA series bridge overhead crane:
LDA model bridge overhead crane is improved and designed on the basis of LD model. It is characterized by more reasonable structure and higher strength steel as a whole. Used together with CD1 model, MD1 model or HC model electric hoist as hoist mechanism is designed to serve light duty(iso A3)working
B: product parameters of LDA series bridge overhead crane:
Lifting capacity (t) |
3 |
5 |
10 |
16 |
20 |
|||||||||||||||||
Span (m) |
10.5-31.5 |
|||||||||||||||||||||
Control type |
Cabin control or Pendent ground control |
|||||||||||||||||||||
Lifting height (m) |
6-18 |
9-18 |
6-18 |
|||||||||||||||||||
|
Speed m/min |
Lifting |
8, 8/0.8 |
7, 0.7/7 |
3.5, 0.35/3.5 |
6, 0.6/6 |
|||||||||||||||||
Trolley |
20 |
|||||||||||||||||||||
Crane |
Pendent |
20 (30) |
20 |
|||||||||||||||||||
Cabin |
20 (30) |
20 |
||||||||||||||||||||
Electric Hoist |
CD1 / MD1 |
|||||||||||||||||||||
Work duty |
A4 A5 |
|||||||||||||||||||||
Power supply |
380V, 50Hz, 3-phase |
|||||||||||||||||||||
Recommended rail (kg/m) |
38-43 |
|||||||||||||||||||||
Max. wheel loading (Kn) |
38.6-124.3 |
51.5- 124.3 |
80.8-178 |
110-225.4 |
132.6-255.8 |
|||||||||||||||||
|
Weight (t) |
Pendent control |
5.2- 19.9 |
5.7-21.8 |
7.2-25.2 |
8.3-26.9 |
11.3-30.1 |
||||||||||||||||
Cabin control |
6- 20.7 |
6.5-23.1 |
8.0-26.5 |
9.1-28.2 |
12.1-31.4 |
|||||||||||||||||
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
· If the size is suitable for container ship, usually by container;
· If the size is too big, usually by bulk ship or by container after truncation;
· Transport ways are based on reducing cost for you and keep the crane performance!
You may have interests in these products
According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our wedsite www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation, people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
Customer-visits:
You can use our cranes at ease, the best after-sales service will be offered from Kailite.
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Low charge for continue maintenance when warranty is expired.
4, Exclusive engineer support at any time.
5, We can provide free training to end-users.
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on
detail requirement! So if you give us more information about the lift capacity, span, lift height,
power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepar
e for you! The information such as the lift capacity, span, lift height, power source or other special
s you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with
push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin
(space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as jib crane , grab,
overhead crane,flatcar or other specials as your requirement!
NOTICE
Welcome to sent us email or leave me message to tell me details of bridge overhead crane demand so that I can sent you offer in shortest time:
- 1. Llifting capacity?
- 2. Span?
- 3. Power supply mode?
- 4. Lifting height?
- 5. Or other detailed requirements?
