JL-1 Corrugated Cardboard Rotary Die Cutting Machine for Carton Box Pakaging Machine / Semi-automatic Rotary Creasing Die Cutter
US$ 5,000 - 5,000
MOQ: 1 Carton
Key Specifications
Get Latest Price
Condition:
New
Function:
Other, die cutter
Application:
Beverage, Chemical, Other, Beverage, Chemical, Machinery & Hardware
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JL-1 Semi-auto Flexo Printer Rotary Die Cutter/ Corrugated Cardboard Roller Printing Slotting Carton MachineUS$ 5,000 - 5,000MOQ: 1 Carton -
JL-1 Series Semi-auto Rotary Die-cutting MachineUS$ 5,000 - 5,000MOQ: 1 Carton
-
JL-1 Latest Product Semi-Auto Corrugated Cardboard Carton Box Flexo Rotary Die Cutting Machine With CEUS$ 5,000 - 5,000MOQ: 1 Carton
-
JL-1 Corrugated Chain Feeding Rotary Die CutterUS$ 5,000 - 5,000MOQ: 1 Carton
-
JL-1 Semi-auto Flexo Printer Rotary Die Cutter/ Corrugated Cardboard Roller Carton MachineUS$ 5,000 - 5,000MOQ: 1 Carton
Condition
New
Function
Other, die cutter
Application
Beverage, Chemical, Other, Beverage, Chemical, Machinery & Hardware
Packaging Type
Film
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
4KW
Place of Origin
Hebei, China
Brand Name
JIALONG
Model Number
JL-1
Dimension(L*W*H)
5000X3500X1500
Certification
CE/ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Dongguang county Jialong carton machienry factory

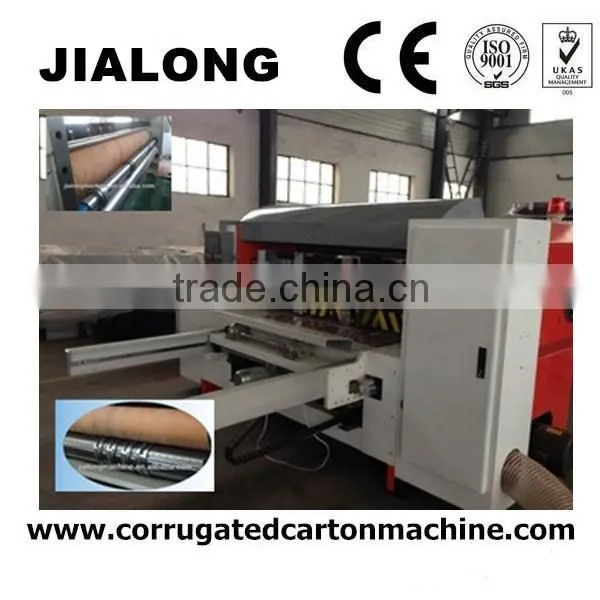

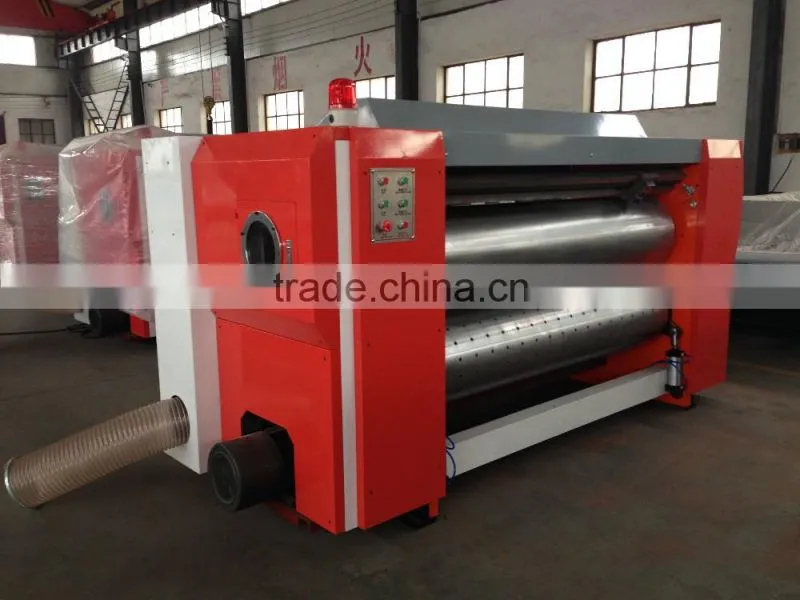

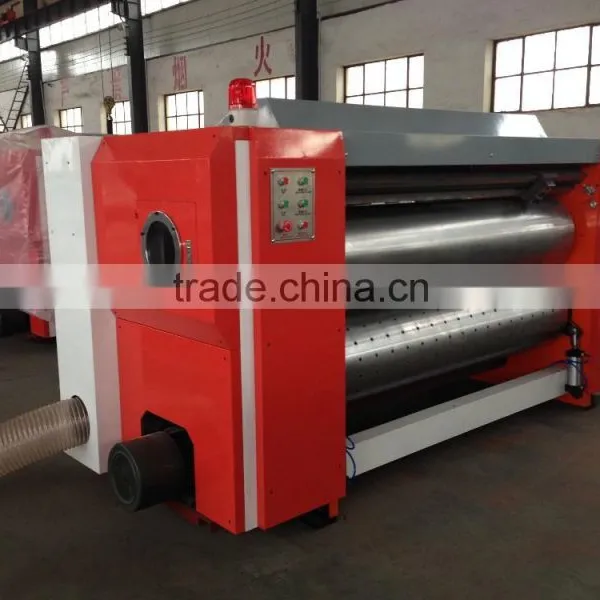

JL corrugated cardboard Rotary Die cutting machine for
carton box pakaging machine / semi-automatic rotary creasing die cutter
- This machine is the exclusive equipment for die cutting and molding, suitable for ther manufacturing of colorful cartons, boxes and other package products of abnormal shape.
- It adopts the double roller pressing nd urethane soft template, die cutting speed difference servo make up he linear velocity automatically, completing the paperboard and the siding, slotting, punching, creasing and folding of the corrugated paper of medium and small thickness once.
- It adopts the vacuum absorption to supplement the paper feeding; the main machine adjusts the speed by frequency control and the die cutting phase by electro-motion. It is featured with high cutting precision, high speed and convenient operation.
- Option kick feeding or lead edge feeding
Main Technical parameters |
Serial |
Wyazs name |
Unit |
Model |
|||
1 |
Max paper coverage area |
Mm |
1470*2400 |
1470*2000 |
1270*2400 |
1270*2000 |
2 |
Effective die cutting area |
Mm |
1400*2200 |
1400*1800 |
1200*2200 |
1200*1800 |
3 |
Max. mechanical speed |
Pcs/min |
108 |
108 |
115 |
115 |
4 |
Height of die-cutting |
Mm |
25.4 |
25.4 |
25.4 |
25.4 |
5 |
Power of main motor |
kw |
7.5 |
7.5 |
7.5 |
7.5 |
Technical instruction of the equipment
- The die cutter phas is controlled by computer and electric digit with 360°adjustment
- The die cutting scraper could be adjustd horizontally with computer and eletric digit control ranging form +5mm to -5mm.
- Uniflair glue die cutting cushion foller servo traces simultaneously, when the restored roller is input inside the servo computer system, it will calculate accurately and automatically and follow the print speed to ensure the vilocity of blade line the same sa the cushion roller and make the formation of the die cutting beautiful and same in size. No matter how the diameter of the cushion changes, the die cutting plate will not be damaged, The upper and lower roller of the die cutting adopts the design of different size, th servo system ensures the renovated cushion could be used for many times and treatly reduce the use cost.
- The cushion roller’s mechanical, horizintal and cam facility from +35mm to -35mm could raise the service life of the cushion of the die-cutting.
- The light alloy aluminum back-kick vacuum adsorption paper feed mechanism with serval groups of rolling bearing to ensure more steady machinery operation.
- Left and right baffle and back baffle position are controlled by computer and electric digit; the side baffle is equipped with pneumatic trimming facilities.
- Consecutive of skip paper feed, infrared electrophonic counter, brush dust removal mechanism
- Imported control system, Siemens low voltage electric appliance and host frequency conversion contrlo,30% electricity saving.
Arrangement Scheme
Auto feeder machine
Gluer machine & stitcher machine
