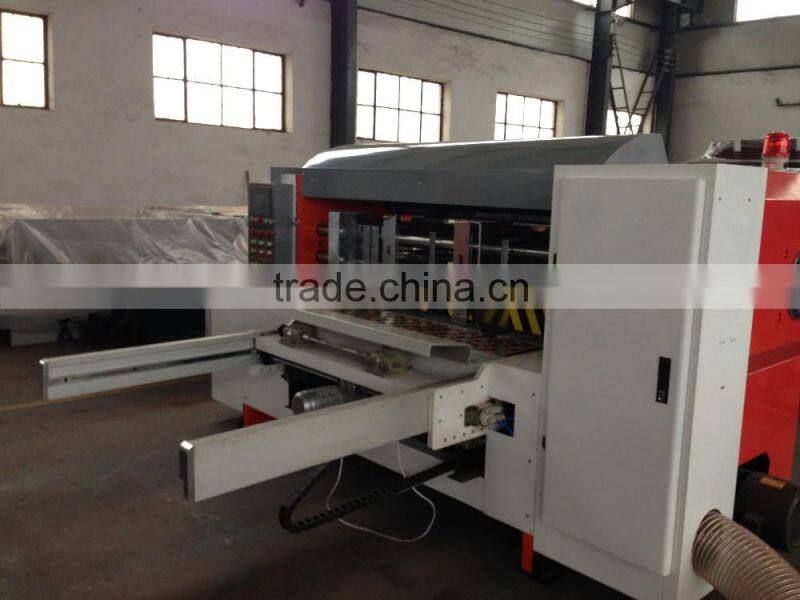

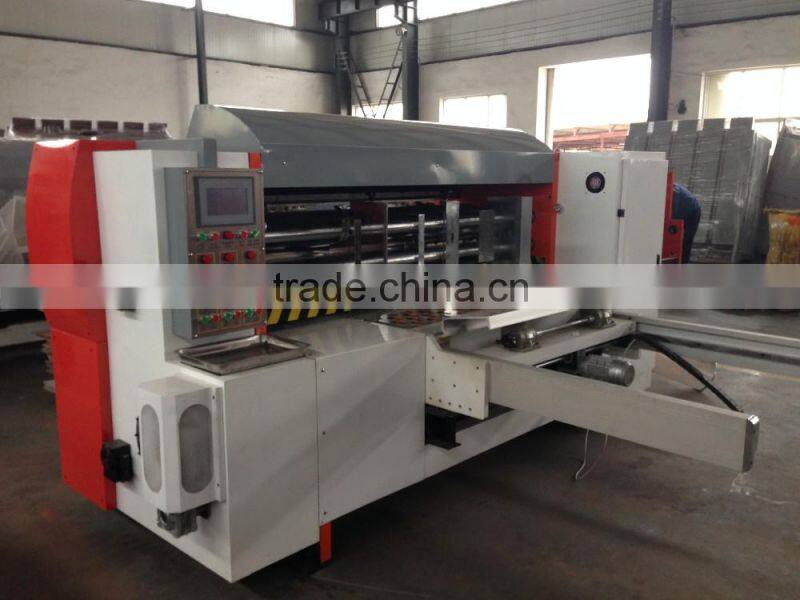

Carton box making machine price / Automatic Rotary Die Cutter for making Corrugated Cardboard

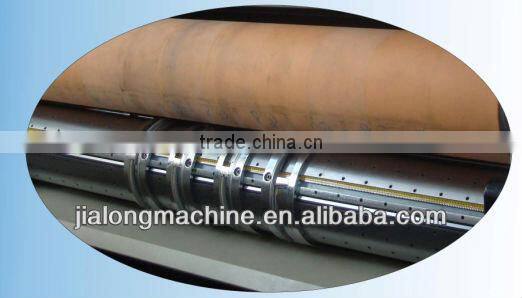

1.Die Cutting Department
a)Die-cutting roller for the high quality steel materials.30mm thickness,balance correction,hard-chrome plating.
b)Wallboard for high-quality cast iron material.50mm thickness,and large processing center production
c)Soft-roll automatic grinding institutions to pouches repeat usage,grinding 3-4times.
Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line
d)Juan Zhi cut imports of soft pouches,ease of installation,the die-12000000.
d)Mechanical soft roll about 40 mm lateral movement,the pads wear uniform.
e)40cr material the use of grinding gears for 6,low noise,long life.
f)Die-cutting roller cylinder automatic separation devices to reduce wear pouches.
2.Feeding Department
a)Adopt the world′s most advanced leading-edge feed system,feeding precision is high,speed and long life round feed,feeding the achievement of 10,000pcs/hour,accuracy±0.5mm;
b)Blower air volume can be adjusted to meet the feed air flow requirements;
c)The use of microcomputer control phase can be adjusted 360°phase,faster and more accurate;
d)Manual adjustments before the tailgate,side baffle to adjust the computer;
e)Paper roll guide groove plastic surface of cardboard to prevent damage and increase the accuracy of feeding.
f)Dusting paper.and the slider for rigid aluminum alloy.lightweight wear-resistant.
g)After the block box,push the cardboard electric adjustment,digital equipment can be achieved,the adjustment is accurate,convenient.
3.Computer Department
a)Adopt of PLC control, improve the protection,control and high reliability;
b)LCD touch screen is easy to operate to achieve an intuitive man-machine dialogue:
c)Frequency host used to save power,smooth acceleration;
d)Machine by light,electricity,gas joint control system
Technical Parameter
Model | Max feeding paper(mm) | Max feeding paper(mm) | Thickness of feeding paper | Feeding speed(pcs/min) | Feeding speed(pcs/min) | Machine weight |
MQJ17A | 1700×1200 | 350×500 | 11mm | 30-120 | 4.0kw | 4500kg |
MQJ17A | 2000×1200 | 350×500 | 11mm | 30-120 | 5.5kw | 5000kg |
MQJ20B | 2100×1400 | 400×600 | 11mm | 50-160 | 7.5kw | 5500kg |
MQJ25C | 2400×1400 | 400×600 | 11mm | 50-160 | 7.5kw | 6000kg |
MQJ25C | 2500×1400 | 500×600 | 11 mm | 30-100 | 11.0kw | 6500kg |
PACKAGING CORRUGATED CARDBOARD PAPER CARTON BOX MAKING MACHINE
1. Q: Are you factory or trading company ? why choose us?
A:we are professional manufacturer factory for carton box making machinery.Our factory has professional produce many kinds of carton box Making machinery for more than 20 years, our machines has export To many countries abroad, We have an experienced production research and development and after-sales service team!
our company rule is : we insist only produce High quality machine with best price, we never produce low quality machine with lowest price, because high quality machine and customers' Satisfaction is the most important foundation of our company development.
2Q: what is your machine Warranty period?
A: We insist only produce high quality machine with best price,
We never produce low quality machine with lowest price,
So we trust our machine quality well, we promised all of the
Machines we produce the warranty period is 24 months.
Because we believe our machine quality, so we dare to Extended warranties!
3.Q:How about the packing of products?
A:Tighten to container with steel wire rope and welded machine with container by angel iron B. Main corrugated box machines and un-coiler is packed with water-proof plastic) C. PLC contral system and motor pump are packed in wooden box with water proof paper coverage
