10t single beam overhead traveling crane
- 30 Set / Sets per Month
- Shanghai Qingdao Lianyuangang Tianjin
- T/T Credit Card
- Pillar column type jib cantilever slewing crane light working duty equipment
- New type boxed single beam bridge crane hoist traveling on square beam
- European design electric hoist double beam bridge crane hard tooth VFD
- Boxed type single girder gantry crane hoist lifting mechanism for sale
- European design double girder overhead crane KSQ model VFD speed control
- QD model double beam overhead crane bridge boxed beams for sale
Product Details
Condition: | New | Application: | factory,workshop,warehouse,yard | Rated Loading Capacity: | 16t |
Rated Lifting Moment: | different | Max. Lifting Load: | 16t | Max. Lifting Height: | 30m |
Span: | 6.5m--28.5m | Place of Origin: | Henan, China | Brand Name: | KLT CRANE |
Model Number: | LD | Certification: | ISO CE | Warranty: | 1 year |
After-sales Service Provided: | Overseas third-party support available |
Product Description

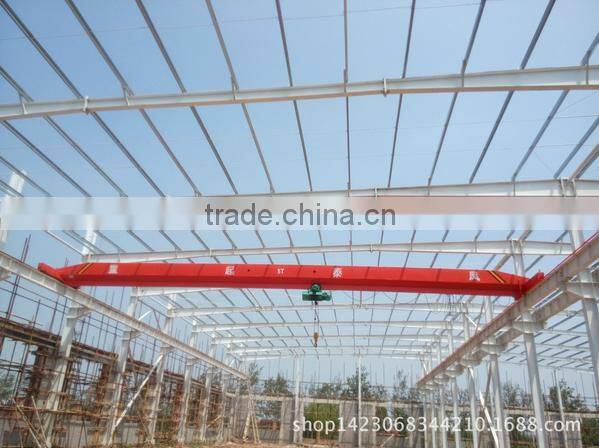

10t Single Beam Overhead Traveling Crane
1. Brief Introduction:
10t Overhead Crane
a. Simple structure, light weight, small load of plant, building height and less consumption.
b. hoisting capacity of 1-16t,operating level of A3-A5 and operating ambient temperature of -20-45°C.
c. 10 ton overhead crane has the advantages of rational structure and strong rigidness of whole unit which will be used together with electric hoist in the operation.
2. Features:
10t Overhead Crane
10t Overhead crane is characterized by more reasonable structure and higher strength steel as a whole. Used together with CD1 model, MD1 model or HC model electric hoist as hoist mechanism is designed to serve light duty(iso A3)working.
3. Advantages:
10t Overhead Crane
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Saves electricity
4. Parameters:
10t Overhead Crane
Lifting capacity (t) | 3 | 5 | 10 | 16 | 20 | |||||||||||||||||
Span (m) | 10.5-31.5 | |||||||||||||||||||||
Control type | Cabin control or Pendent ground control | |||||||||||||||||||||
Lifting height (m) | 6-18 | 9-18 | 6-18 | |||||||||||||||||||
Speed m/min | Lifting | 8, 8/0.8 | 7, 0.7/7 | 3.5, 0.35/3.5 | 6, 0.6/6 | |||||||||||||||||
Trolley | 20 | |||||||||||||||||||||
Crane | Pendent | 20 (30) | 20 | |||||||||||||||||||
Cabin | 20 (30) | 20 | ||||||||||||||||||||
Electric Hoist | CD1 / MD1 | |||||||||||||||||||||
Work duty | A4 A5 | |||||||||||||||||||||
Power supply | 380V, 50Hz, 3-phase | |||||||||||||||||||||
Recommended rail (kg/m) | 38-43 | |||||||||||||||||||||
Max. wheel loading (Kn) | 38.6-124.3 | 51.5- 124.3 | 80.8-178 | 110-225.4 | 132.6-255.8 | |||||||||||||||||
Weight (t) | Pendent control | 5.2- 19.9 | 5.7-21.8 | 7.2-25.2 | 8.3-26.9 | 11.3-30.1 | ||||||||||||||||
Cabin control | 6- 20.7 | 6.5-23.1 | 8.0-26.5 | 9.1-28.2 | 12.1-31.4 |
Note: The technical just for reference, we can design according to customer's requirements.
5. Application:
10t Overhead crane is widely used in plants, warehouses, material stocks to lift goods or materials. Please do not use the equipment in the combustible, explosive to corrosives environment.
6. Detail:
There is always one type suitable for you!
According to meet various requirements from customers, we also produce gantry crane , electric flat car ,
overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our website www.kltqz.en.china.cn for more details.
How to Order Our Products
a. Customers offer general drawing of the product.
b.Our designer will make a professional drawing according to your product layout.
c. After your confirming of the drawings, inform us the material and types you need.
d. We will do quote once get the confirmation of you.
Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different collors and types are available.
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail: Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Service we can provide
1. Payment terms is flexible
2. Design the crane according to your technical request
3. Delivery on time
4. Diversity products
Customer Visit
1. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands, our
engineers can make suitable design for you.
2. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by
yourself, or you can let some third-partied to do the inspection for you.
3. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
Please never hesitate to contact me!
