12m aluminium hydraulic alloy lifting platforms
- 300 Set / Sets per Month
- Shanghai Qingdao Guangzhou Tianjin
- T/T Credit Card PayPal
-
China easy operated scissor lift platform, truck mounted platform scissor lift
-
China low cost hydraulic elevating platform, truck mounted platform scissor lift
-
2015 hot sale double ladder stop type hydraulic scaffolding lift
-
Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
-
China factory direct sale self propelled scissor lift table / hydraulic scissor lift
-
China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
| Place of Origin: | Henan, China | Brand Name: | KLT CRANE | Model Number: | SHJII |
| Lift Mechanism: | Scissor Lift | Lift Drive / Actuation: | Hydraulic | Power: | 1.5 or 2.2KW |
| Rated Loading Capacity: | 200kg | Min. Lifting Height: | 8m | Max. Lifting Height: | 18m |
| Table Size: | different | Overall Dimensions: | different | Weight: | 430-930kg |
| Certification: | ISO CE, ISO CE | Warranty: | 1 year, One year guarantee | After-sales Service Provided: | Overseas third-party support available |
Product Description

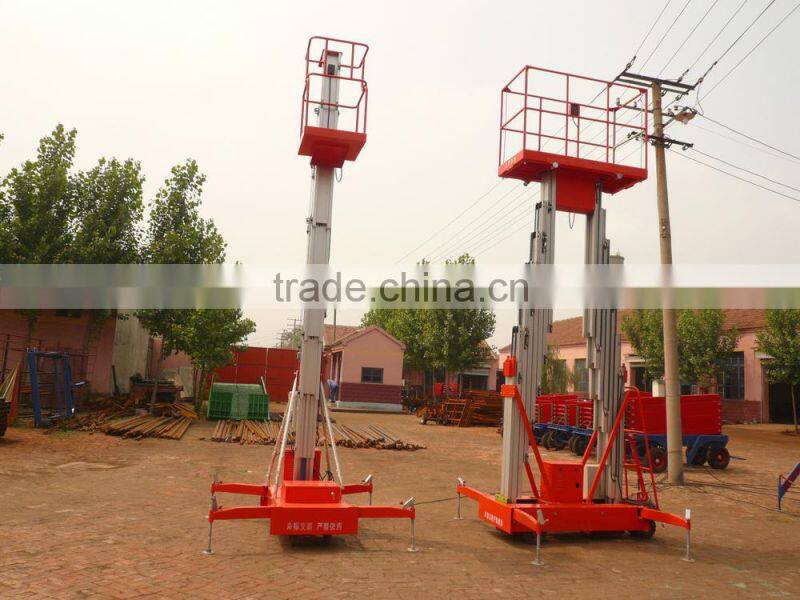

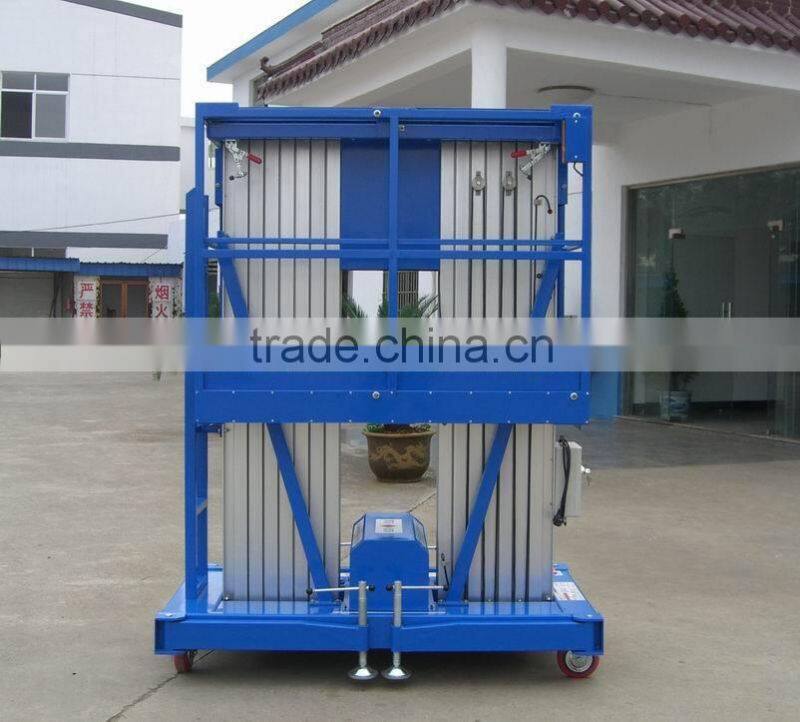

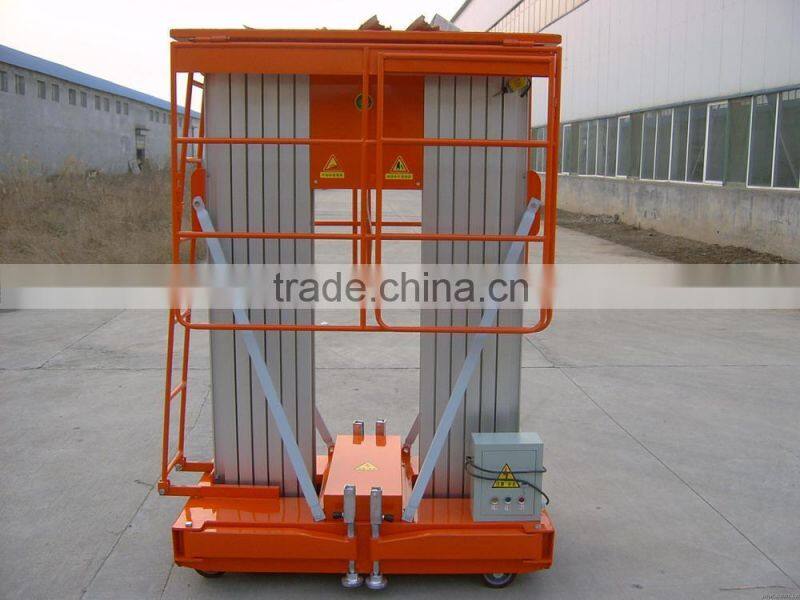

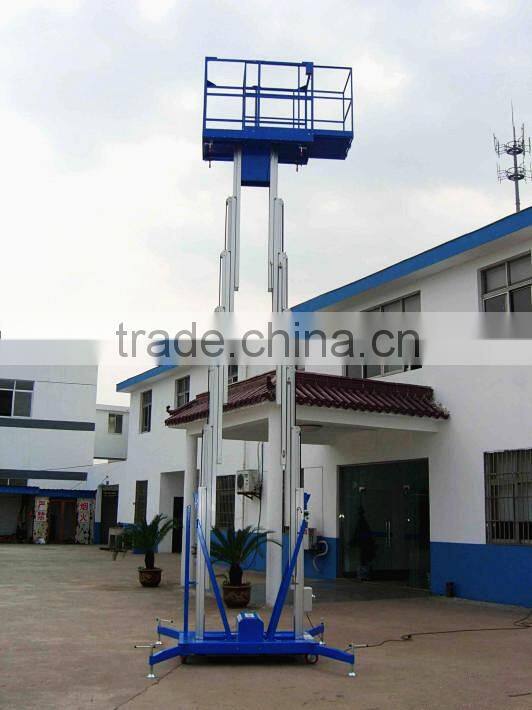

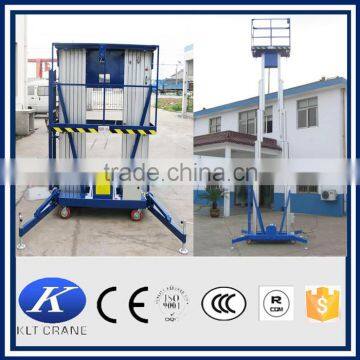

10m aluminium hydraulic alloy lifting platforms
Luxurious mobile hydraulic lift platform uses the high strength aluminum alloy materials, with beautiful shape, small volume, light weight, lifting balance, the advantages of safe and reliable, the platform of their own insurance rope wear and safety protection device, and can up and down operation, widely used in factories, hotels, restaurants, stations, theaters, exhibition halls and other airport place.
Product advantage of aluminium hydraulic alloy lifting platforms

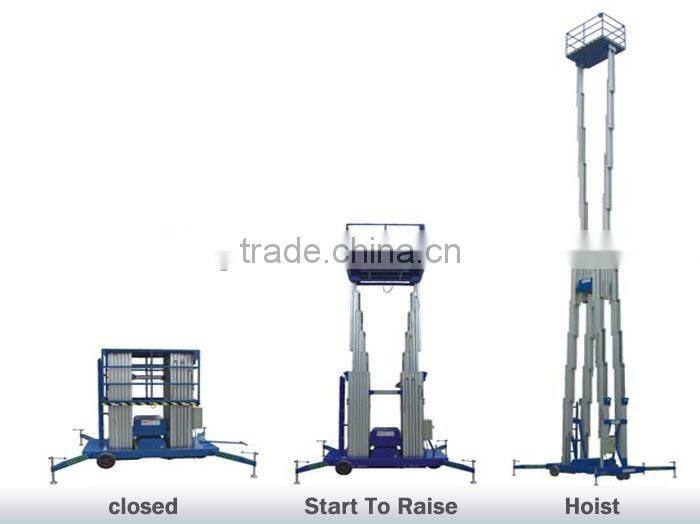

1.Lift or fall steadily: The seamless transmission is used between the lifting masts, thus minimizing the amount of sway after lifting.

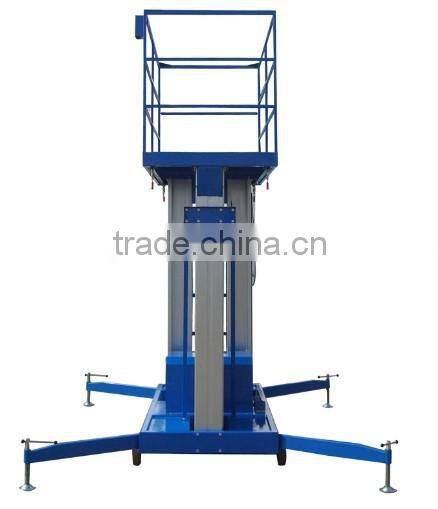

2.Safe and reliable: The four turning stabilizers of the unit connected to the four corners of the chassis support the MEWP duringwork. They are designed for leveling regulation and preventing inclination. They are composed of stand bars and turning legs. The stand bars are installed in the turning legs. Extending out the turning legs before operating the unit enlarges the area of supporting. Therefore, the steadiness of the whole platform is guaranteed.
3.Convenient: The whole work platform is light because the lifting masts are made of alloy aluminum. The structure is compact and the volume is small, so only one person can move the equipment and carry it through a very narrow passage.
It is widely used for the equipments installations and maintenance at the following places like construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.

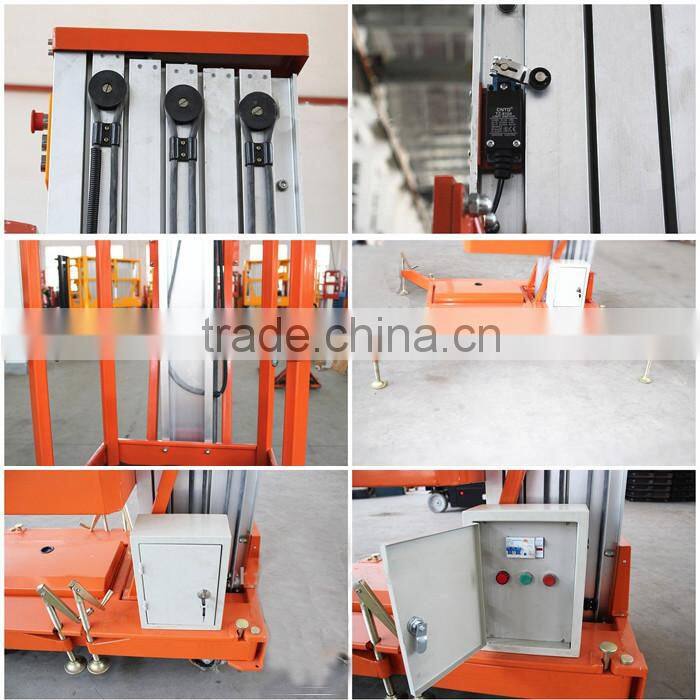

Product details of aluminium hydraulic alloy lifting platforms
| model | Working height (m) | Paltfrom height (m) | Load capacity (kg) | Weight (kg) | Dimensions (mm) | Power source (v) | Power (kw) | configurable |
| SHJⅡ-8 | 8 | 6.5 | 200 | 430 | 1500×900×1900 | 220 | 1.5 | DC or hand pump |
| SHJⅡ-10 | 10 | 8.5 | 200 | 560 | 1500×900×2100 | 220 | 1.5 | |
| SHJⅡ-12 | 12 | 10.5 | 200 | 580 | 1500×900×2350 | 220 | 1.5 | |
| SHJⅡ-14 | 14 | 12.2 | 200 | 620 | 1600×1000×2600 | 220 | 1.5 | |
| SHJⅡ-16 | 16 | 14.2 | 200 | 820 | 1800×1000×3000 | 220 | 2.2 | |
| SHJⅡ-18 | 18 | 16.2 | 200 | 930 | 1800×1000×3000 | 220 | 2.2 |
We also can provide products as your requirement.
According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contact me or scan our website www.kltqz.en.china.cn for more details.
Standared packing
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation, people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
You can use our cranes at ease, the best after-sales service will be offered from Kailite.
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Low charge for continue maintenance when warranty is expired.
4, Exclusive engineer support at any time.
6. Design the crane according to your technical request.
We Cherish Every Order From Every Customer !
your inquires will be responded within 24 hours .
This is only an overview of our products ,for more details,please never hesitate to contact me .
