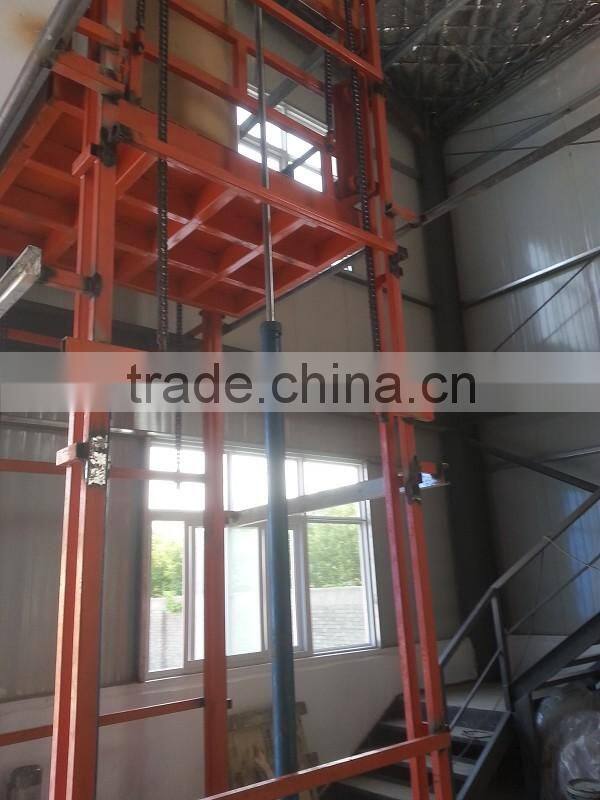

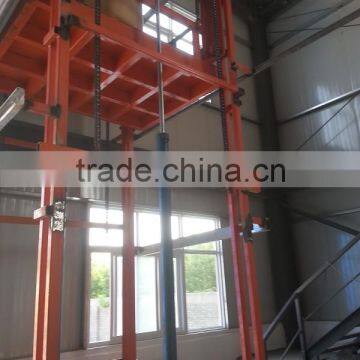

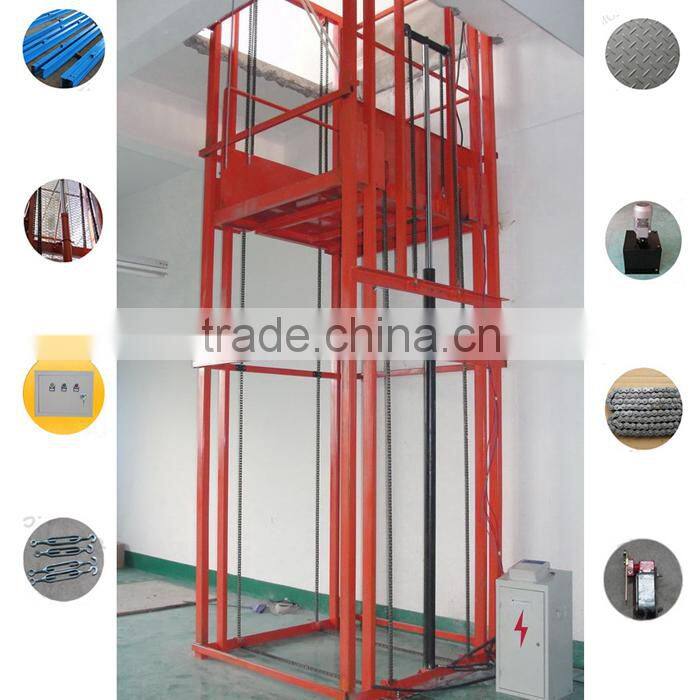

1 ton warehouse hydraulic cargo lift platform
1. Product description:
hydraulic warehouse cargo lift driven by the electric and hydraulic system ,lifting up and down along the guide rail.Equipped with single side or double sides hydraulic cylinder to keep the machinery work smooth and steady.

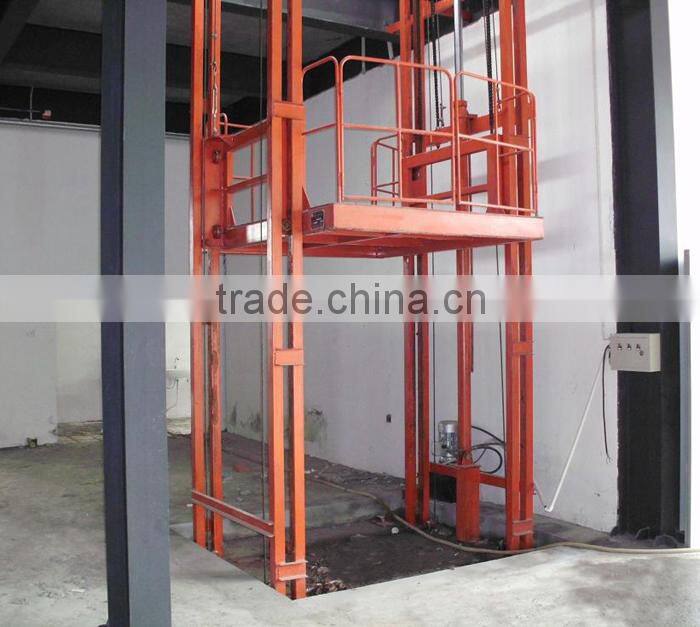

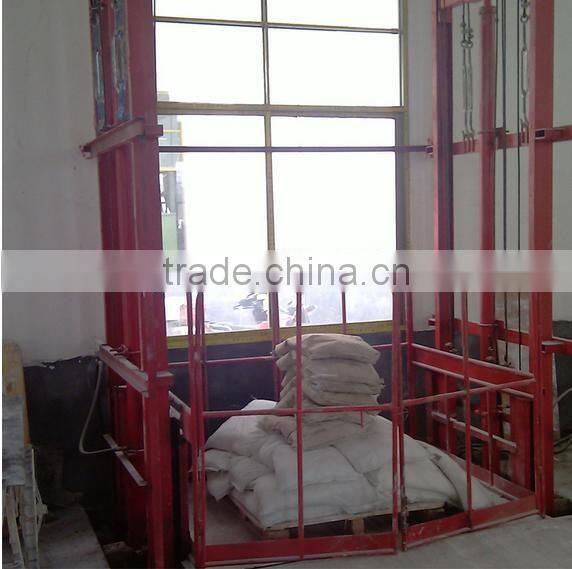

It is installed in the pit or the ground floor to convey the goods from one working lever to another.The control panels are avaliable at the designated floors and one the lift platforms,with up down stop button.
2. Safety features:

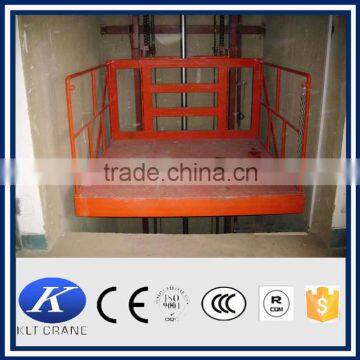

1.The platform equipped with antiskid plate to prevent slipping,it is enough safe when working.
2.The platform would equipped with the guardrail to guarantee the safety.
3.The lift freight elevator lift has hydraulic overload protective device to ensure that the equipment will stop work when the load beyond the rated load capacity.
4.The lift freight elevator lift equipped with singe control solenoid valves to preventthe platform drop if power failure,You can open the manual deopped valve to lower the platform to the home position
3. Applications:
4.Contrlling ways:

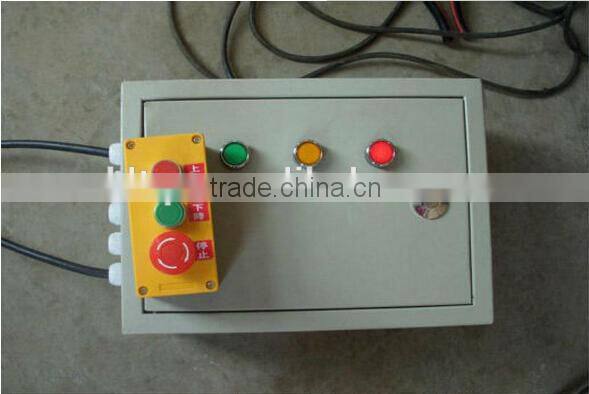

Control Box with "up" "down" "stop" button,You can control the lift up and down both on the platform and on the ground,just need press stop button,It can stop at any point you need.
5.Technical parameters:
| Model | Load Capacity | Vertical Stroke | Min. Height | Platform Size | Power |
| SJD0.3-4.5 | 300 | 4500 | 150 | 1000*800 | 1.5 |
| SJD0.5-4.5 | 500 | 4500 | 150 | 1500*1000 | 1.5 |
| SJD1.0-4.5 | 1000 | 4500 | 150 | 1500*1500 | 2.2 |
| SJD2.0-4.5 | 2000 | 4500 | 150 | 2000*1000 | 2.2 |
| SJD3.0-4.5 | 3000 | 4500 | 160 | 2000*1200 | 3 |
| SJD0.3-7.5 | 300 | 7500 | 150 | 1000*1000 | 1.5 |
| SJD0.5-7.5 | 500 | 7500 | 150 | 1200*1200 | 1.5 |
| SJD1.0-7.5 | 1000 | 7500 | 150 | 1800*1400 | 2.2 |
| SJD2.0-7.5 | 2000 | 7500 | 150 | 2000*1500 | 2.2 |
| SJD3.0-7.5 | 3000 | 7500 | 160 | 2000*1600 | 3 |
| SJD1.0-10.5 | 1000 | 10500 | 150 | 1800*1400 | 2.2 |
| SJD1.0-14 | 1000 | 14000 | 150 | 1800*1500 | 2.2 |

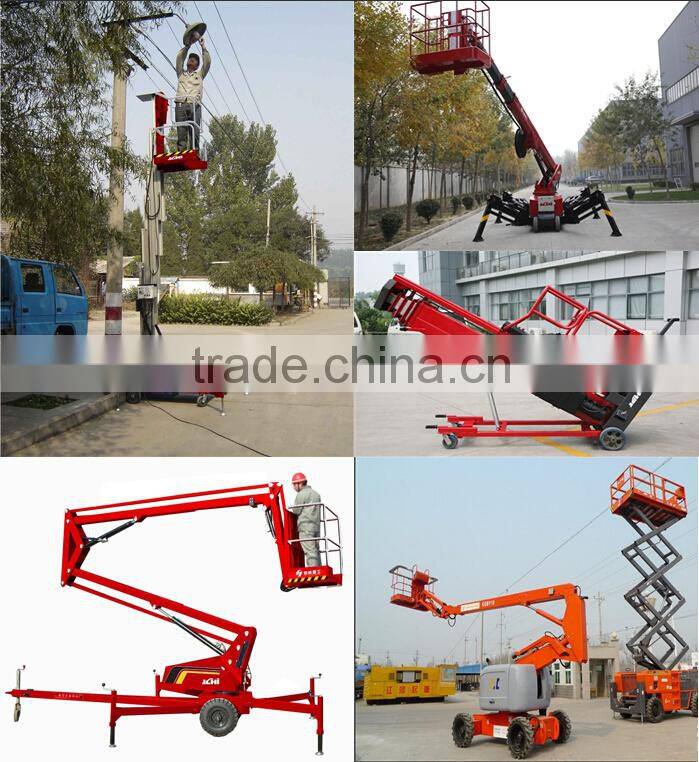

We also have other series lift platforms for your different choice:
According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our wedsite www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long
trading history, having rich technical experience. We are located in Xinxiang-- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental
management system certification and OHSAS18001 occupational health and safety management system
certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation,
people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
Customer-visits:
You can use our cranes at ease, the best after-sales service will be offered from Kailite.
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Low charge for continue maintenance when warranty is expired.
4, Exclusive engineer support at any time.
5, We can provide free training to end-users.
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on
detail requirement! So if you give us more information about the lift capacity, span, lift height,
power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepar
e for you! The information such as the lift capacity, span, lift height, power source or other special
s you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with
push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin
(space capsule seat) control with joystick. You can choose any of them, just tell us.
NOTICE
Welcome to sent us email or leave me message to tell me details of portable lifting platform demand so that I can sent you offer in shortest time:
- 1. Lifting capacity?
- 2. Lifting height?
- 3. Table size?
- 4. Industry power source in your country?
- 5. Or other detailed requirements?
We Cherish Every Order From Every Customer !
I am Jackie,waiting for your contact!
