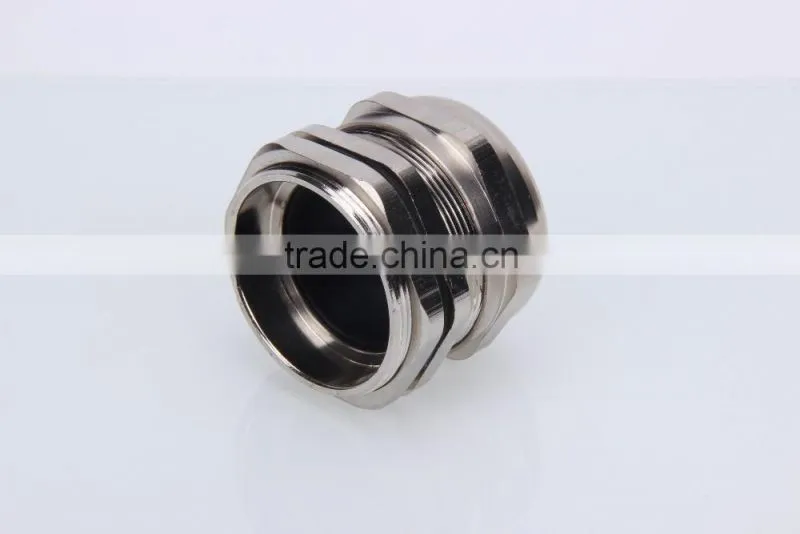

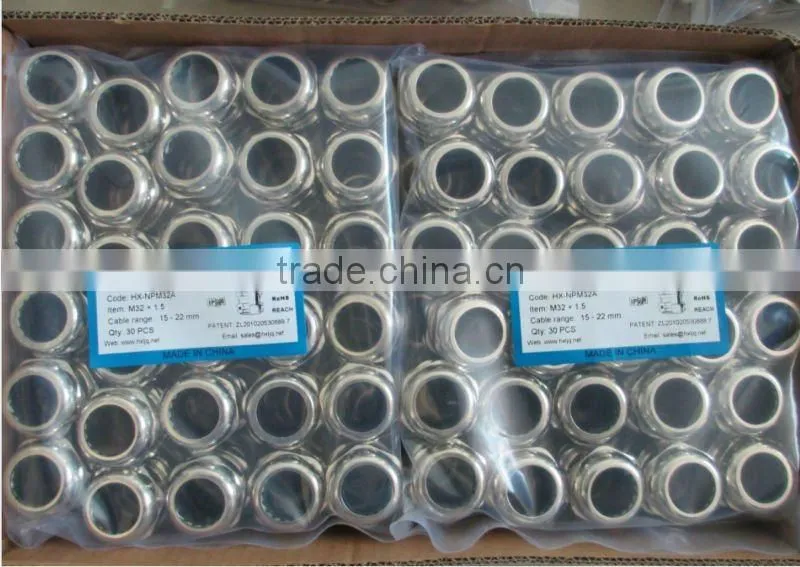

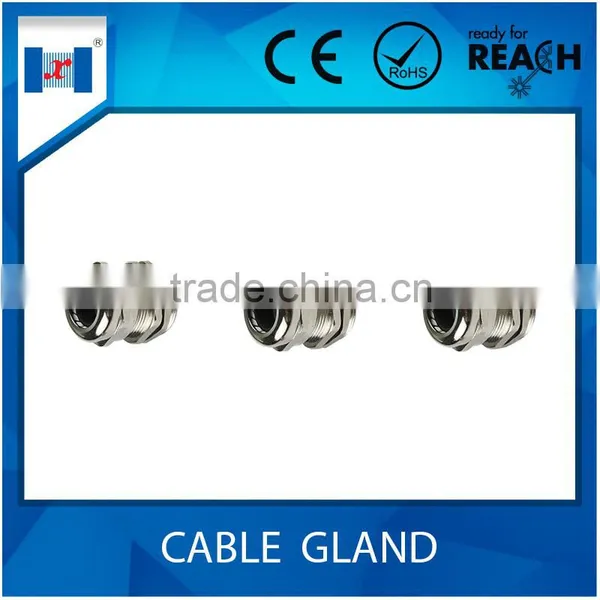

Metal Cable Grand M8-M100

Name: Metal Cable Grand M8-M100
Brand: HONG XIANG
SKU: 123788045
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HONG XIANG

Model Number:

M8-M100

Yueqing HongXiang Connector Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HONG XIANG

Model Number M8-M100

Protection Level IP68

Size M8-M100

Material Other, Brass, Brass, nickel plated

Waterproof Brass Cable Gland--Metric thread type
Item AG	Code	Cable Range (mm)	Thread O.D.(mm)	Thread length GL(mm)	Joint length H (mm)	Spanner size(mm)
M8×1	HX-NPM8	2-5	8	5	16	12
M10×1	HX-NPM10	3-6.5	10	6.5	19	14
M12×1.5	HX-NPM12	3-6.5	12	6.5	19	14
M12×1.5	HX-NPM12-8	4-8	12	6.5	19	14
M14×1.5	HX-NPM14	4-8	14	8	19	17
M16×1.5	HX-NPM16	4-8	16	8	20	18
M16×1.5	HX-NPM16-10	5-10	16	8	20	18
M18×1.5	HX-NPM18	5-10	18	8	21	20
M18×1.5	HX-NPM18-12	6-12	18	8	21	20
M20×1.5	HX-NPM20	6-12	20	8	22	22
M20×1.5	HX-NPM20-14	10-14	20	8	22	22
M22×1.5	HX-NPM22	10-14	22	8	23	24
M24×1.5	HX-NPM24	10-14	24	9	25	24/27
M25×1.5	HX-NPM25-14	10-14	25	9	25	24/27
	HX-NPM25-16	12-16	25	9	27	27
	HX-NPM25-18	13-18	25	9	27	30/27
M27×1.5	HX-NPM27	13-18	27	9	27	30
M28×1.5	HX-NPM28	13-18	28	9	27	30
M30×1.5	HX-NPM30	13-18	30	9	29	30/32
M32×1.5	HX-NPM32	15-22	32	10	29	35
M32×1.5	HX-NPM32-25	18-25	32	10	29	36
M33×1.5	HX-NPM33	15-22	33	10	29	35
M36×1.5	HX-NPM36	18-25	36	10	31	40
M37×1.5	HX-NPM37	18-25	37	10	31	40
M40×1.5	HX-NPM40-25	18-25	40	11	31	40/45
M40×1.5	HX-NPM40-30	22-30	40	11	35	45
M42×1.5	HX-NPM42	22-30	42	11	35	45
M47×1.5	HX-NPM47	25-33	47	11	37	50
M48×1.5	HX-NPM48	25-33	48	11	37	50/52
M50×1.5	HX-NPM50	32-38	50	12	37	50/55
M54×1.5	HX-NPM54	32-38	54	12	38	57
M60×1.5	HX-NPM60	37-44	60	13	38	64
M63×1.5	HX-NPM63	37-44	63	14	38	64/68
M64×2	HX-NPM64	37-44	64	14	38	64/68
M72×2	HX-NPM72	42-52	72	16	42	78
M72×2	HX-NPM72-58	48-58	72	16	42	78
M75×2	HX-NPM75	42-52	75	16	42	78/80
M80×2	HX-NPM80	55-62	80	18	45	88
M88×2	HX-NPM88	65-70	88	18	45	94
M100×2	HX-NPM100	78-84	100	20	45	110
