Europe Design Best Price KBK type Overhead Crane 3.5 Ton With Design Drawing

brief introduction:

KBK crane is composed of the suspension device, rail, turnout, walking trolley, electric hoist, mobile power supply device (bus bar) and control device,etc. Because this product could simply hang in the workshop roof or beam frame. It can realize the material directly transportation in the air, therefore, it is widely used in all walks of life conveying link or system.

Flexible suspension crane system enjoys a wide usage scope, especially suitable for modern production conveyors, because of  its following characteristic:

1. Good reliability and high stability

2. Strong adaptability

3. Easy installation, economical and efficiency

 2. application:

It is widely used in the automobile industry, shipbuilding industry, the electronic assembly industry, food processing, machinery manufaturing, warehouse, covering from birth the production processing, the assembly to repair service as well as warehouse and other types of materials handling field.

3.Features

1.good reliability, high stability KBK light crane components of the system are all standard modules, you can ensure high-volume, high-quality production,

2.which system is very reliable; system module is the mainstay of three sizes of rolled profiles, intensity good rigidity, light weight, to ensure stability of the system.

3. KBK system adaptable plant each station according to the needs, flexible design and installation of the crane system, from sentinel transported to a high accuracy multi-point,

4.multi-beat automated conveyor line, can be arbitrary combination. The plant can be used for new designs can also be used to modify or extend the old system.

5.It is easy to install, cost-effective KBK system installation is very convenient, and the standard profiles bolted between the modules can only be used to save the factory space and area,

6.greatly reducing the human resources, improve production efficiency, thereby reduce energy consumption, improve enterprise efficiency.

7.System can be operated manually or can achieve automatic and semi-automatic operation, efficient operation.

4.Advantage

1.European modular design ------ special light weight, the friction between the pulley and the track is small, easy operation, can be very quickly transported handling those inconveniently heavy workpieces, to adapt to plant station requirements.

2. Flexible suspension means can swing rail cranes ------ can effectively absorb the braking effect caused when horizontal impact load can be easily mounted on the light inside the steel plant.

3. Multi-track suspension ------ cover a larger warehouse and production area, the crane can easily be moved by hand. Note: Crane span greater than 6m, crane loads over 500kg, in order to reduce operator work load and recommended electrically driven walking program.

All electrical connections for the plug-in design, start-up and speed limit switch integrated in the control card, the DC motor smooth starting and braking.

You may have interests in these products

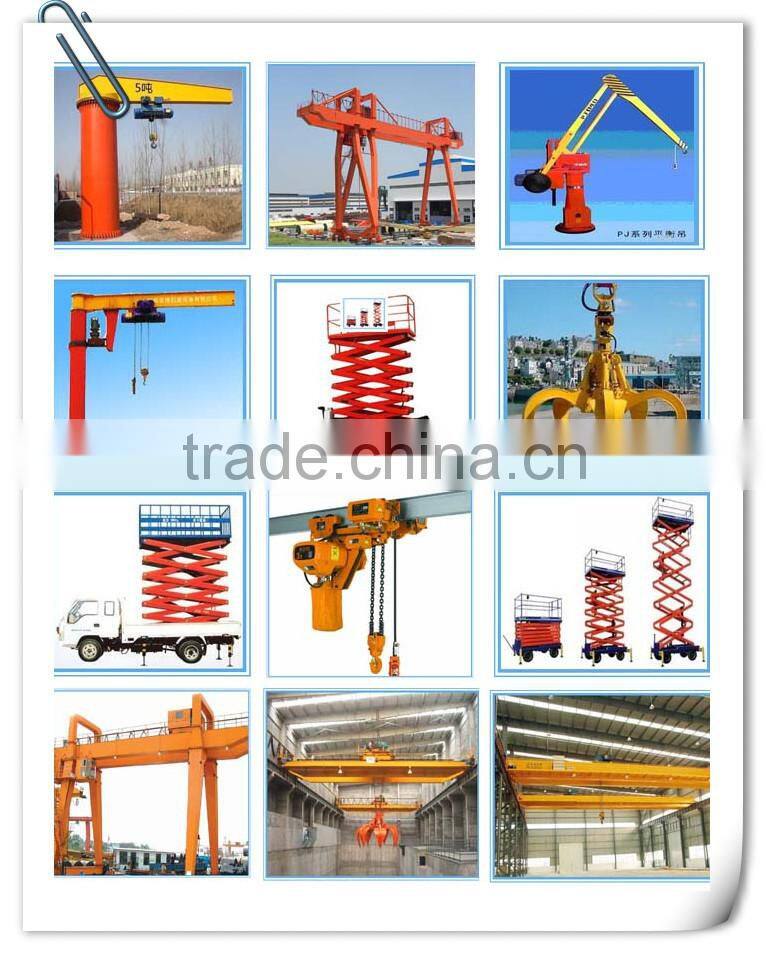

According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our wedsite www.kltqz.en.china.cn for more details.

Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.

  Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation, people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.

csutomer visits:

our team:

You can use our cranes at ease, the best after-sales service will be offered from KAILITE

1, One year warranty for whole machines.

2, Providing free quick-wear part.

3, Freely provide project designing, process designing, choosing suitable

equipment for you.

4, Exclusive engineer support at any time.

5, Technical advisory for any time

As a professional exporter,our target is to serve worldwide clients with high-quality products,great-reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.We will supply you 24 hours a day and 7days a week after-sale services.
