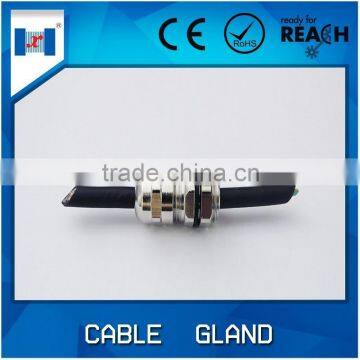

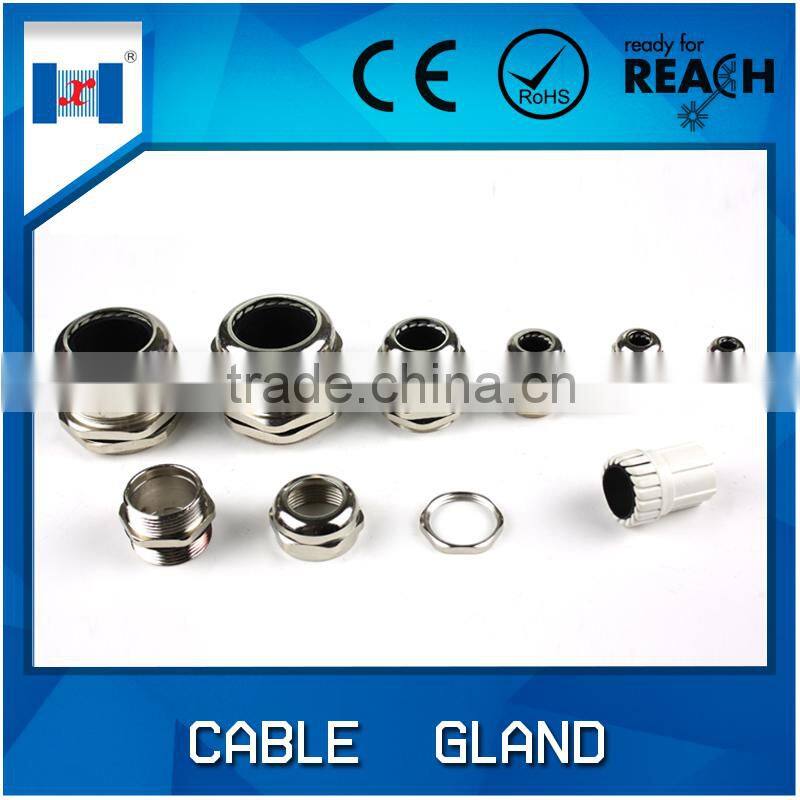

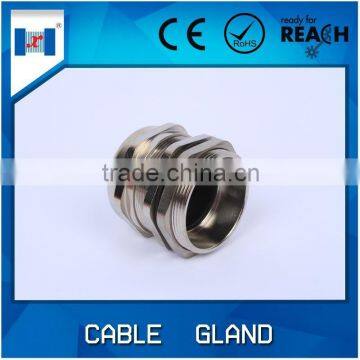

EX Cable Glands Free Samples Sales at Factory Price
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HONG XIANG
Model Number:
M12-M64
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EX Cable GlandNegotiableMOQ: 1000 Pieces -
Armoured Cable GlandNegotiableMOQ: 1000 Pieces
-
HX Through Type Waterproof ex d Cable GlandUS$ 0.5 - 0.5MOQ: 200 Pieces
-
HX Through Type Waterproof EX Cable GlandUS$ 0.5 - 0.5MOQ: 200 Pieces
-
HX Waterproof Junction Box Cable Gland Size for Cables Pg13.5 Cable GlandUS$ 0.5 - 0.5MOQ: 200 Pieces
Place of Origin
Zhejiang, China
Brand Name
HONG XIANG
Model Number
M12-M64
Protection Level
IP68
Size
M12-M64
Material
Other, Brass, Brass, nickel plated
Cable Gland
Specifications:
Thread Available: PG, Metric, NPT and G.
Materials: Brass, nickel plated
Claw: PA
Sealing: NBR
O-Sealing: NBR
Protection degree: IP68-10 pressure (Rotate position, with O-sealing)
Ambient temperature: -40 degree centigrade to 100 degree centigrade, short time to 120 degree centigrade.
Features:
1.Superior strain relief
2. Nickel plated brass for corrosion protection
3.Unique "camera shutter" principal protects the cable
4. Neoprene seal for fluid tightness
5. No need to disassemble
6. Large cable connection area
7. Hand tightening---only a low torque needed
8.Safety standard—IP68
9.Optimized tooling area
10. Trapezoid thread, for a secure hold
| CODE | Thread AG | Cable range(mm) | Thread O.D.(mm) | Mounting hole diameter (mm) | Thread length GL(mm) | Joint length H(mm) | Spanner size (mm) |
| HX-NPM12/EX | M12*1.5 | 6.5-3 | 12 | 12-12.2 | 7 | 19 | 14 |
| HX-NPM14/EX | M14*1.5 | 8-4 | 14 | 14-14.2 | 7 | 19 | 18 |
| HX-NPM16/EX | M16*1.5 | 8-4 | 16 | 16-16.2 | 8 | 20 | 18 |
| HX-NPM18/EX | M18*1.5 | 10-5 | 18 | 18-18.2 | 8 | 21 | 20 |
| HX-NPM20/EX | M20*1.5 | 12-6 | 20 | 20-20.2 | 8 | 22 | 22 |
| HX-NPM22/EX | M22*1.5 | 14-10 | 22 | 22-22.2 | 8 | 23 | 24 |
| HX-NPM27A/EX | M27*1.5 | 18-13 | 27 | 27-27.2 | 9 | 27 | 30 |
| HX-NPM27B/EX | M27*2 | 18-13 | 27 | 27-27.2 | 9 | 27 | 30 |
| HX-NPM28A/EX | M28*1.5 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| HX-NPM28B/EX | M28*2 | 18-13 | 28 | 28-28.2 | 9 | 27 | 30 |
| HX-NPM30A/EX | M30*1.5 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| HX-NPM30B/EX | M30*2 | 18-13 | 30 | 30-30.2 | 9 | 29 | 30/32 |
| HX-NPM32A/EX | M32*1.5 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| HX-NPM32B/EX | M32*2 | 22-15 | 32 | 32-32.2 | 10 | 29 | 35 |
| HX-NPM33A/EX | M33*1.5 | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 |
| HX-NPM33B/EX | M33*2 | 22-15 | 33 | 33-33.2 | 10 | 29 | 35 |
| HX-NPM37A/EX | M37*1.5 | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 |
| HX-NPM37B/EX | M37*2 | 25-18 | 37 | 37-37.2 | 10 | 31 | 40 |
| HX-NPM40A/EX | M40*1.5 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| HX-NPM40B/EX | M40*2 | 25-18 | 40 | 40-40.2 | 11 | 31 | 40/45 |
| HX-NPM40C/EX | M40*1.5 | 30-22 | 40 | 40-40.2 | 11 | 35 | 45 |
| HX-NPM40D/EX | M40*2 | 30-22 | 40 | 40-40.2 | 11 | 35 | 45 |
| HX-NPM42A/EX | M42*1.5 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| HX-NPM42B/EX | M42*2 | 30-22 | 42 | 42-42.2 | 11 | 35 | 45 |
| HX-NPM47A/EX | M47*1.5 | 33-25 | 47 | 47-47.2 | 11 | 37 | 50 |
| HX-NPM47B/EX | M47*2 | 33-25 | 47 | 47-47.2 | 11 | 37 | 50 |
| HX-NPM48A/EX | M48*1.5 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| HX-NPM48B/EX | M48*2 | 33-25 | 48 | 48-48.2 | 11 | 37 | 50/52 |
| HX-NPM54A/EX | M54*1.5 | 38-32 | 54 | 54-54.2 | 12 | 38 | 57 |
| HX-NPM54B/EX | M54*2 | 38-32 | 54 | 54-54.2 | 12 | 38 | 57 |
| HX-NPM56A/EX | M56*1.5 | 38-32 | 56 | 56-56.2 | 12 | 38 | 57/59 |
| HX-NPM56B/EX | M56*2 | 38-32 | 56 | 56-56.2 | 12 | 38 | 57/59 |
| HX-NPM60A/EX | M60*1.5 | 44-37 | 60 | 60-60.2 | 13 | 38 | 64 |
| HX-NPM60B/EX | M60*2 | 44-37 | 60 | 60-60.2 | 13 | 38 | 64 |
| HX-NPM63A/EX | M63*1.5 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
| HX-NPM63B/EX | M63*2 | 44-37 | 63 | 63-63.2 | 13 | 38 | 64/68 |
| HX-NPM64A/EX | M64*1.5 | 44-37 | 64 | 64-64.2 | 13 | 38 | 64/68 |
| HX-NPM64B/EX | M64*2 | 44-37 | 64 | 64-64.2 | 13 | 38 | 64/68 |
