500kg flexible workshop kbk crane
- 3000 Set / Sets per Month
- Shanghai Tianjin Qingdao
- T/T Credit Card PayPal
- Pillar column type jib cantilever slewing crane light working duty equipment
- New type boxed single beam bridge crane hoist traveling on square beam
- European design electric hoist double beam bridge crane hard tooth VFD
- Boxed type single girder gantry crane hoist lifting mechanism for sale
- European design double girder overhead crane KSQ model VFD speed control
- QD model double beam overhead crane bridge boxed beams for sale
Product Details
Condition: | New | Application: | factory,workshop,warehouse,yard | Rated Loading Capacity: | 3t |
Rated Lifting Moment: | 50-100KN | Max. Lifting Load: | 3t | Max. Lifting Height: | As per demand |
Span: | 2-10m | Place of Origin: | Henan, China | Brand Name: | KLT CRANE |
Model Number: | KBKI/ KBKII | Certification: | CE,ISO,SGS | Warranty: | 1 year |
After-sales Service Provided: | Overseas third-party support available |
Product Description
500kg flexible workshop kbk crane
introduction of workshop kbk crane

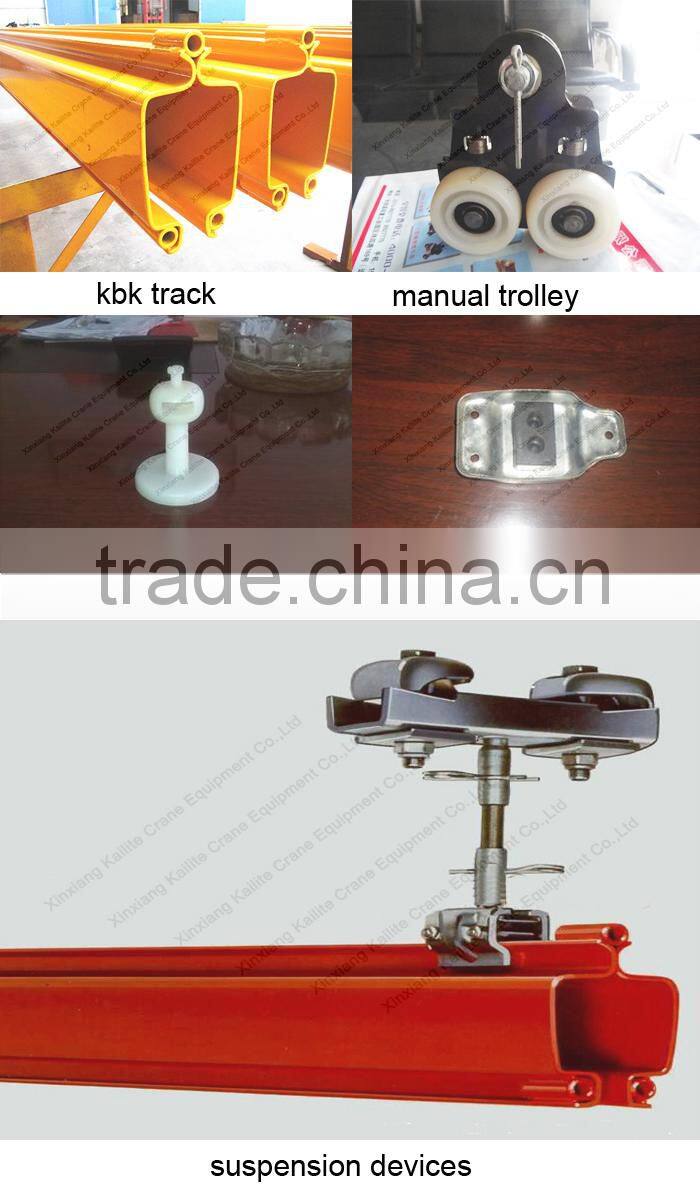

KBK crane is composed of the suspension device, rail, turnout, walking trolley, electric hoist, mobile power supply device (bus bar) and control device,etc. Because this product could simply hang in the workshop roof or beam frame. It can realize the material directly transportation in the air, therefore, it is widely used in all walks of life conveying link or system.
Features of workshop kbk crane
- good reliability, high stability KBK light crane components of the system are all standard modules, you can ensure high-volume, high-quality production,
- which system is very reliable; system module is the mainstay of three sizes of rolled profiles, intensity good rigidity, light weight, to ensure stability of the system.
- KBK system adaptable plant each station according to the needs, flexible design and installation of the crane system, from sentinel transported to a high accuracy multi-point,
- multi-beat automated conveyor line, can be arbitrary combination. The plant can be used for new designs can also be used to modify or extend the old system.
- It is easy to install, cost-effective KBK system installation is very convenient, and the standard profiles bolted between the modules can only be used to save the factory space and area,
- greatly reducing the human resources, improve production efficiency, thereby reduce energy consumption, improve enterprise efficiency.
- System can be operated manually or can achieve automatic and semi-automatic operation, efficient operation.
Advantage of workshop kbk crane
- European modular design ------ special light weight, the friction between the pulley and the track is small, easy operation, can be very quickly transported handling those inconveniently heavy workpieces, to adapt to plant station requirements.
- Flexible suspension means can swing rail cranes ------ can effectively absorb the braking effect caused when horizontal impact load can be easily mounted on the light inside the steel plant.
- Multi-track suspension ------ cover a larger warehouse and production area, the crane can easily be moved by hand. Note: Crane span greater than 6m, crane loads over 500kg, in order to reduce operator work load and recommended electrically driven walking program.
- All electrical connections for the plug-in design, start-up and speed limit switch integrated in the control card, the DC motor smooth starting and braking.

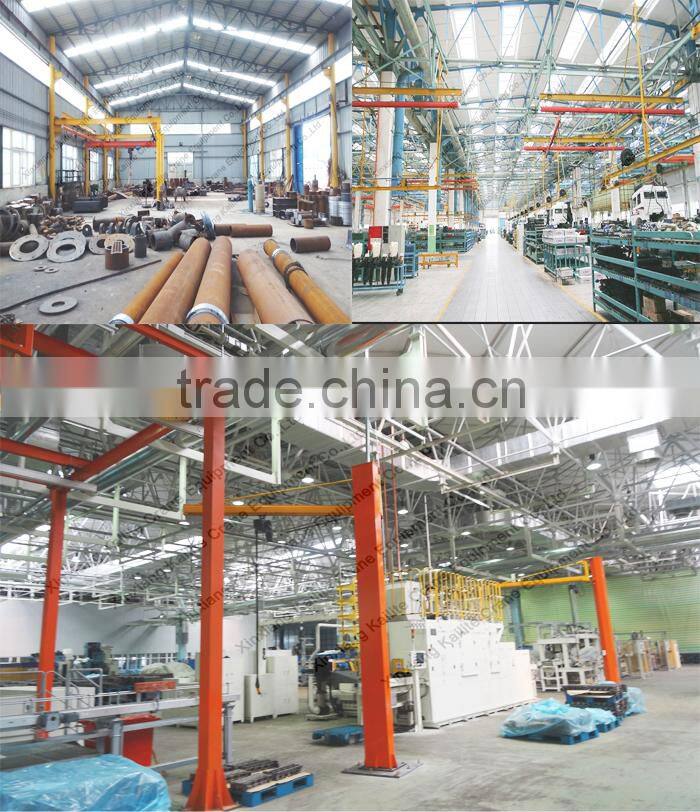

Application of workshop kbk crane
It is Wildly used in car industry,ship industry,food processing,machine manufaturing,warehouse and so on.
Product details of flexible underslung crane
Lifting capacity(t) | 0.5 | 1 | 2 | 3 | ||||||||||||
Span(m) | 3-5 | 5.5-8 | 9-10 | 11-12 | 3-5 | 5.5-8 | 9-10 | 11-12 | 3-5 | 6-8 | 9-10 | 11-12 | 3-5 | 6-8 | 9-10 | 11-12 |
Lifting height(m) | 2.5-12 | 2.5-12 | 3-12 | 3-12 | ||||||||||||
Type of track | 120a-130c | 120a-130c | 124a-136c | 124a-136c | ||||||||||||
Type of natched crab | SDX-3.WA1/2 | SDX -3.WA1 | SDX -3.WA1 | SDX -3.WA1 has1 | ||||||||||||
Type of material hoist | HS1/2 | HS 1 | HS2 | HS3 |
You may have interests in those products
According to meet various requirements from customers,we also produce gantry crane,electric flat car,overhead/bridge crane,jib crane,electric hoist ect.If you have any interests in those products,please contact me or scan our website www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation, people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
customer-visits
Our high quality products and prestige enjoy unanimous favorable comments of customers from America,Pakistan,South Africa,Qatar,Mexico,India,Thailand,Malaysia and so on, they sell well all over the world. You really have a good taste on our products!
You can use our cranes at ease, the best after-sales service will be offered from KAILITE
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Freely provide project designing, process designing, choosing suitable
equipment for you.
4, Exclusive engineer support at any time.
5, Technical advisory for any time
As a professional exporter,our target is to serve worldwide clients with high-quality products,great-reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.We will supply you 24 hours a day and 7days a week after-sale services.
1. How about the delivery time?
Within 15 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, Western Union,Paypal, Trade assurance.
3.What is Trade assurance?
Trade Assurance is a free payment protection service for buyers.The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
4. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
5 Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size.
6. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.At the same time, pls rest assured that your information is also safe here
7. How about the warranty?
Our warranty is 1 year, within 1 year, any questions, we send spare parts as free.
NOTIC
As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.
1. Lifting capacity.
2. Lifting height.
3. Have you installed the rails? Do you need us supply the rails? How long is it?
4. Power supply: V--Hz
5. Working condition: which material to lift? temprature?
This is only an overview of our products ,for more details,please never hesitate to contact vivian !
