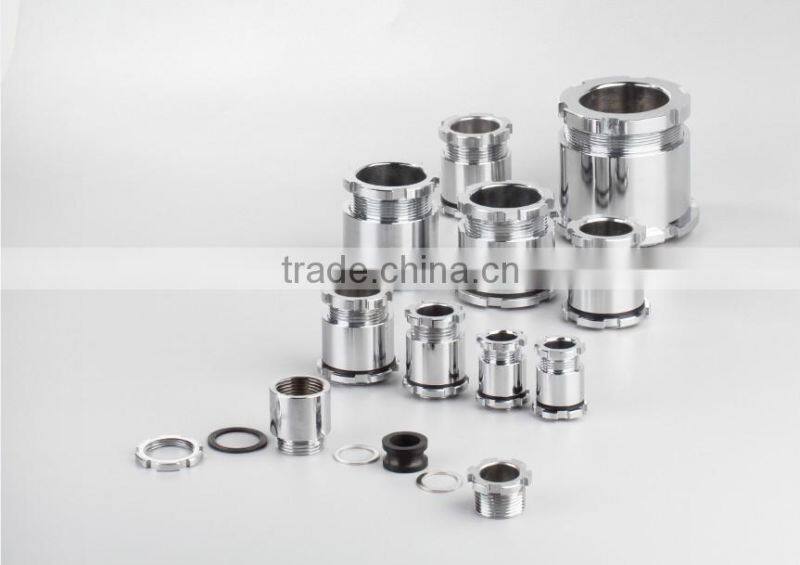

Japan Standard Cable Gland,3/8"- 3"

Name: Japan Standard Cable Gland,3/8"- 3"
Brand: HONG XIANG
SKU: 123785289
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HONG XIANG

Model Number:

3/8"-- 3"

Yueqing HongXiang Connector Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HONG XIANG

Model Number 3/8"-- 3"

Protection Level Other, IP54

Size 3/8"-- 3"

Material Brass

Product Overviews

Marine Cable Gland --JIS standard type
Gland size	Thread AG	CODE	Packing Type	Cable range(mm)	Thread length(mm)	Mounting Hole Diameter(mm)
JIS-10	3/8"	HX-JIS10A	A	6-7	11	16.6
JIS-10	3/8"	HX-JIS10B	B	7-8	11	16.6
JIS-15	1/2"	HX-JIS15A	A	8-9	11	20.9
		HX-JIS15B	B	9-10
		HX-JIS15C	C	9-11
JIS-20	3/4"	HX-JIS20A	A	11-12	11	26.4
		HX-JIS20B	B	12-13
		HX-JIS20C	C	12-15
JIS-25	1"	HX-JIS25A	A	15-16	11	33.2
		HX-JIS25B	B	16-18
		HX-JIS25C	C	16-20
JIS-30	1-1/4"	HX-JIS30A	A	20-22	12	41.9
		HX-JIS30B	B	22-24
		HX-JIS30C	C	22-26
JIS-35	1-1/2"	HX-JIS35A	A	26-28	12	47.8
		HX-JIS35B	B	28-30
		HX-JIS35C	C	26-30
JIS-40		HX-JIS40A	A	30-32
		HX-JIS40B	B	32-34
		HX-JIS40C	C	30-34
JIS-45	2"	HX-JIS45A	A	34-36	12	59.6
		HX-JIS45B	B	36-38
		HX-JIS45C	C	36-40
JIS-50		HX-JIS50A	A	40-42
		HX-JIS50B	B	42-44
		HX-JIS50C	C	40-44
JIS-55	2-1/2"	HX-JIS55A	A	44-46	12	75.1
		HX-JIS55B	B	46-48
		HX-JIS55C	C	46-50
JIS-60		HX-JIS60A	A	50-52
		HX-JIS60B	B	52-54
		HX-JIS60C	C	52-56
JIS-65	3"	HX-JIS65A	A	56-58	14	87.8
JIS-65		HX-JIS65B	B	58-60
JIS-70		HX-JIS70A	A	60-62
JIS-70		HX-JIS70B	B	62-64
JIS-75		HX-JIS75A	A	64-66
JIS-75		HX-JIS75B	B	66-70
