Help CenterTH Marine Cable Gland
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HONG XIANG
Model Number:
TH-8 to TH-58
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CG Marine Cable GlandNegotiableMOQ: 1 Piece -
JIS Standard Marine Cable GlandNegotiableMOQ: 1 Piece
-
JIS10 - JIS75 Waterproff Brass Janpen Standard Cable GlandUS$ 1 - 8MOQ: 1 Piece
-
HongXiang TJ8-TJ58 Factory Price Brass Marine Hardware for Cable Supplier's ChoiceUS$ 1 - 8MOQ: 1000 Pieces
-
Marine Cable Gland(PGM Type)NegotiableMOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
HONG XIANG
Model Number
TH-8 to TH-58
Protection Level
Other, IP54
Size
TH-8 to TH-58
Material
Brass

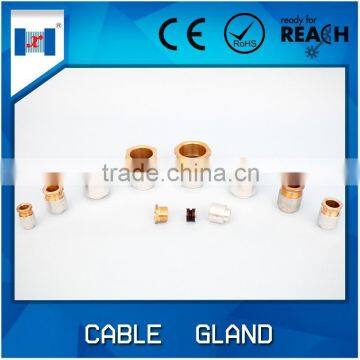

TH marine cable gland
| CODE | Size | d(mm) | D(mm) | d1 (mm) | D1(mm) | H(mm) | H1 (mm) | Cable range(mm) |
| HX-SMTH8 | TH-8 | 8 | M16*1 | 13 | 20 | 32 | 3 | 5-7 |
| HX-SMTH13 | TH-13 | 13 | M20*1 | 17 | 24 | 35 | 8 | 6-12 |
| HX-SMTH16 | TH-16 | 16 | M27*1.5 | 22 | 32 | 40 | 8 | 11-15 |
| HX-SMTH19 | TH-19 | 19 | M30*1.5 | 24 | 35 | 42 | 8 | 14-18 |
| HX-SMTH24 | TH-24 | 24 | M35*1.5 | 30 | 41 | 44 | 8 | 17-23 |
| HX-SMTH28 | TH-28 | 28 | M42*2 | 35 | 49 | 46 | 8 | 22-27 |
| HX-SMTH34 | TH-34 | 34 | M47*2 | 42 | 53 | 49 | 8 | 26-33 |
| HX-SMTH42 | TH-42 | 42 | M55*2 | 50 | 60 | 54 | 8 | 32-41 |
| HX-SMTH50 | TH-50 | 50 | M62*2 | 58 | 69 | 56 | 8 | 40-49 |
| HX-SMTH58 | TH-58 | 58 | M71*2 | 66 | 80 | 56 | 8 | 48-57 |
| Material: D part is made of brass while D1 part is made of steel,the clamping part is made of NBR. | |||||||||
| Protection degree: IP54 | |||||||||
| Temperature Resistance: -40°C to 110°C | |||||||||
| Approval: CE | |||||||||
| Features: Marine cable gland is a high quality cable accessories which installed in the connections of | |||||||||
| explosion-proof electrical equipment and cable port, with the advantages of superior performance of | |||||||||
| flameproof, safe and reliable structure, easy installation and high protection degree. | |||||||||
| Application: Outdoor or Indoor for use with all types of braided or unarmoured marine electrical cable fittings. |
