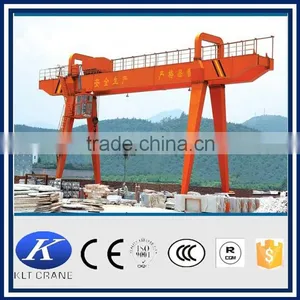

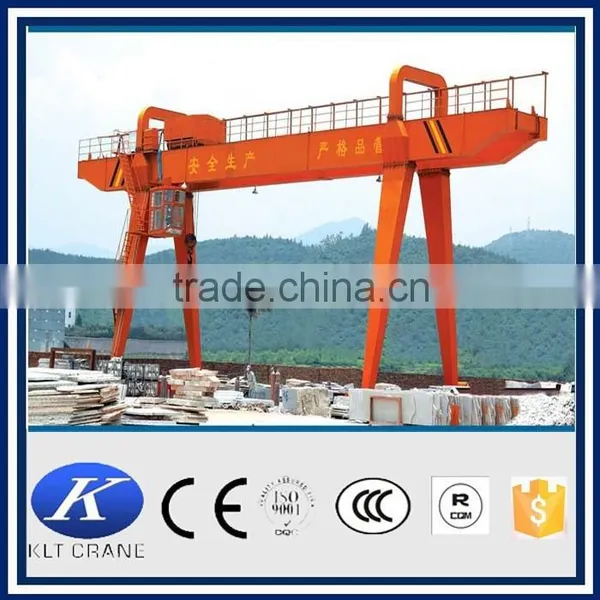

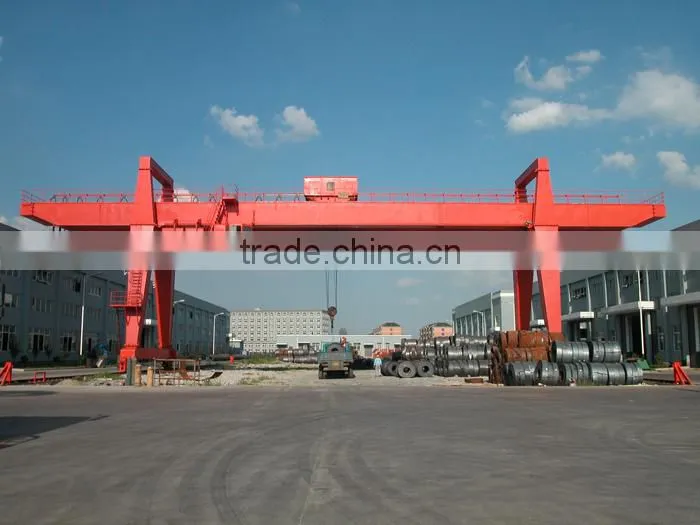

double beam rail mounted gantry crane 25 ton
- 3000 Set / Sets per Month
- Tianjin Dalian Shanghai
- T/T Credit Card PayPal
- Shed Operation Heavy Type 50 ton eot crane Double Beam 5 ton 10 ton 15 ton 20 ton 25 ton 25 ton 30 ton 35 ton 40 ton Overhead Crane Manufacturer
- Bridge crane 3ton 4ton 5ton 6ton 8ton 10ton double girder overhead crane with hoist trolley for sale
- 5 ton/10 ton/20 ton/30ton QDY Double girder ladle steel making foundry bridge crane
- professional customized double girder hook lifting bridge crane 30 ton 50 ton price
- Workshop Warehouse 1 Ton 2 Ton 3 Ton 5ton 10ton 15 Ton 20 Ton electric Europe single Girder Overhead EOT Bridge Crane for sale
- Cleanroom Gantry Crane for Optical/Semiconductor/Pharmaceutical
Product Details
Condition: | New | Application: | Indoor, outdoor, warehouse | Rated Loading Capacity: | 30-500t |
Rated Lifting Moment: | different | Max. Lifting Load: | 30t | Max. Lifting Height: | 20m |
Span: | 12-35m | Place of Origin: | Henan, China | Brand Name: | KLT CRANE |
Model Number: | MG | Certification: | ISO9001 | Warranty: | 12 months |
After-sales Service Provided: | Overseas third-party support available |
Product Description

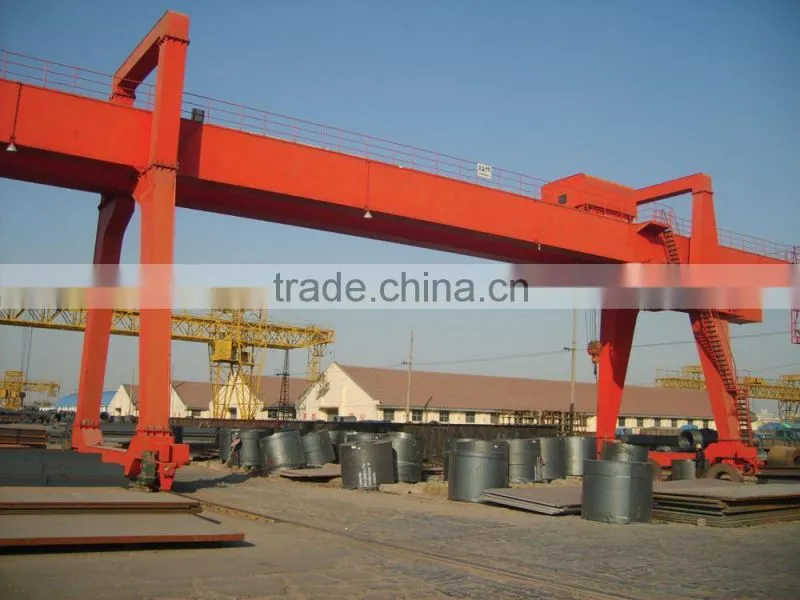

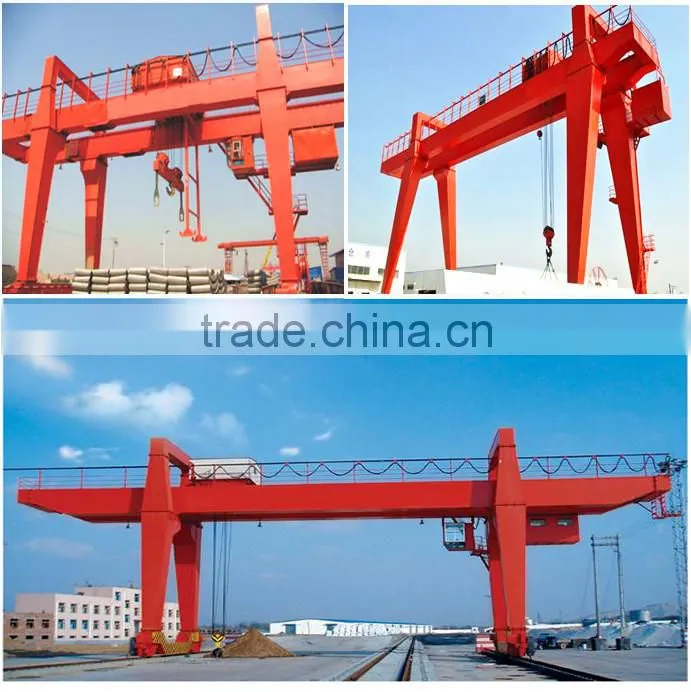

double beam rail mounted gantry crane 25 ton
Product description of double beam rail mounted gantry crane

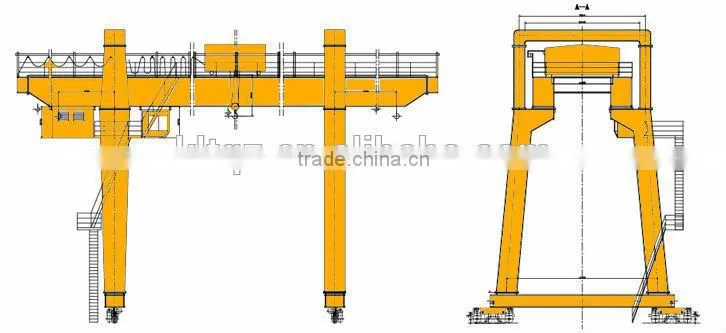

Specification of double beam rail mounted gantry crane
1. Double girder gantry Crane is widely used together with winch or trolley for lifting device.
2. It is a medium and heavy size crane which travels in track.

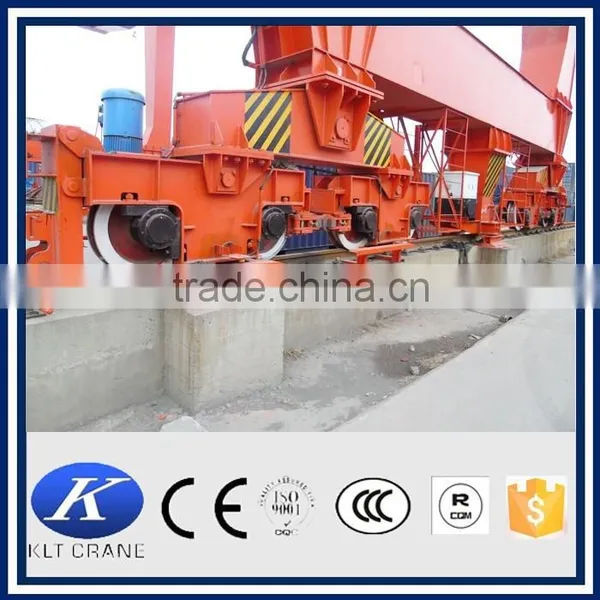

3. The beams and legs adopts box-type welding frame, the crane travelling mechanism adopts separate drive.

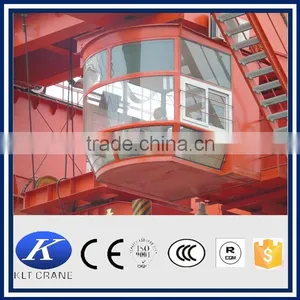

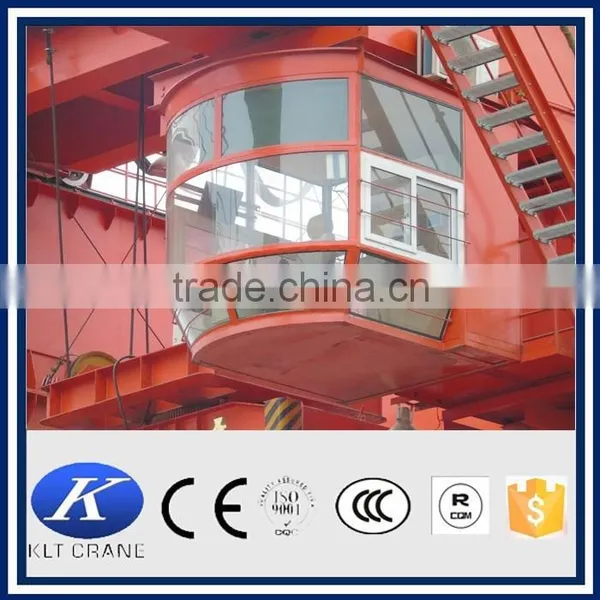

4. All motions are operated in the driver's cabin or wireless remote control, the power supply of crane adopts cables or sliding wires, select one when ordering.
5 Power is supplied by cable or slide wire.
6. It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.
Working condition of double beam gantry crane
1. It is prohibited to use the equipment in the combustible, explosive and corrosives environment.
2. The industry voltage is 3Phase AC, 380V, 50 HZ. It can be design by your requirement.
Double girder container gantry crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.
It with a maximum load handling capacity of 300t,the crane is commonly found at port, storage yard, and outdoor freight yard, where it is used to load or unload bulk goods or various others.
In a gantry crane, the main bridge beam is supported by two supporting legs that run along the rail at the ground level. The main beam can be extended at both ends by using the girder overhangs so that the peripheral area of workshop can be served.
Detail features of double beam rail mounted gantry crane

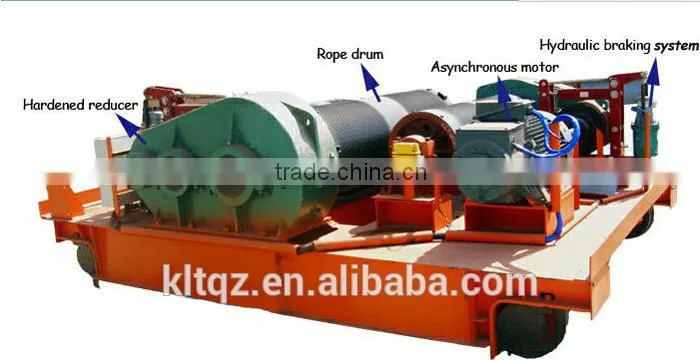

Lifting trolley

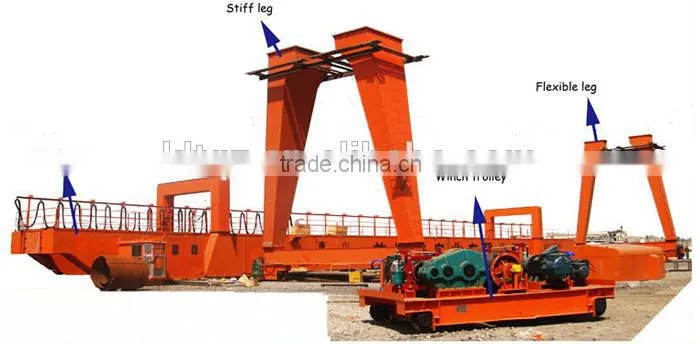

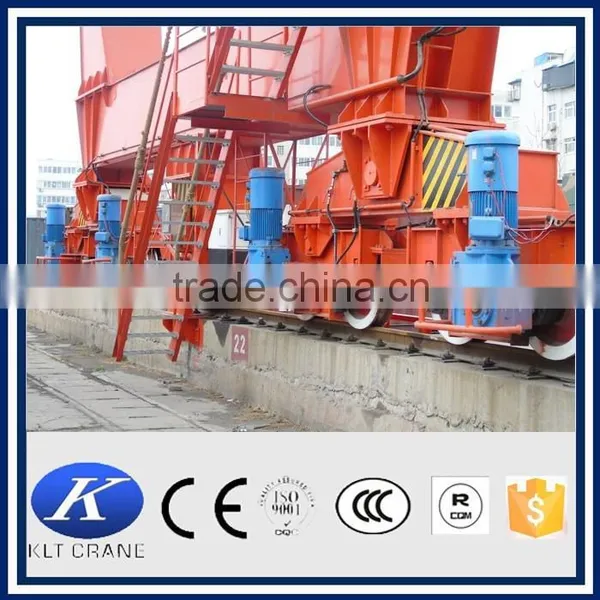

Crane parts

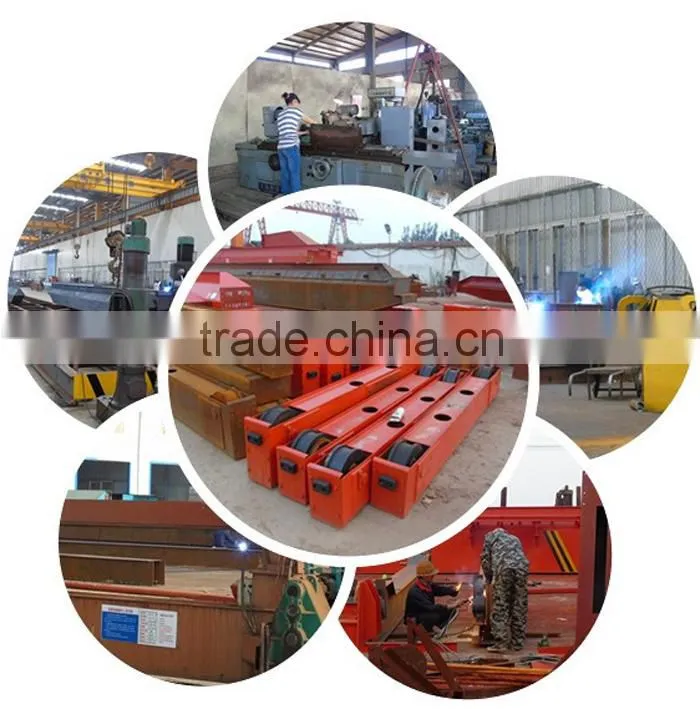

Production Processing of double beam rail mounted gantry crane
Control methods of double beam rail mounted gantry crane
Safe features of double beam rail mounted gantry crane
1) Weight overload protective device
2) Top quality polyurethane buffer
3) Crane traveling limit switch and lifting limit switch
4) Low voltage protection function
5) Emergency stop system
6) Current overload protection function.
Technological parameter | ||||||||||
Lifting Weight | t | May-32 | Oct-50 | |||||||
working class | A5 | |||||||||
Span | S(m) | 18 | 22 | 26 | 18 | 22 | 26 | 30 | ||
(m) Lifting Height | Primary | H1(m) | 10 | 10 | 12 | |||||
Secondary | H2(m) | 10.73 | 10.918 | 12.918 | ||||||
Speed | Lift | Primary | m/min | 7.5 | 5.9 | |||||
Secondary | 19.7 | 13.2 | ||||||||
cart travel | 34 | 36 | ||||||||
handcart travel | 42.4 | 38.5 | ||||||||
Motor total power | KW | 99.3 | 126.5 | |||||||
Max.Wheel Pressure | KN | 245 | 258 | 276 | 356 | 356 | 377 | 409 | ||
Steel track | 43kg/m QU70 | |||||||||
Power Supply | 3-Phase A.C 50HZ 380V | |||||||||
Note: crane weight are machine reference weight (based on the actual weight) |
Our technical team design the high quantity and energy-efficient standard product which can reduce the operation cost through the flexible design mode.
Related products
You may have interests in these products

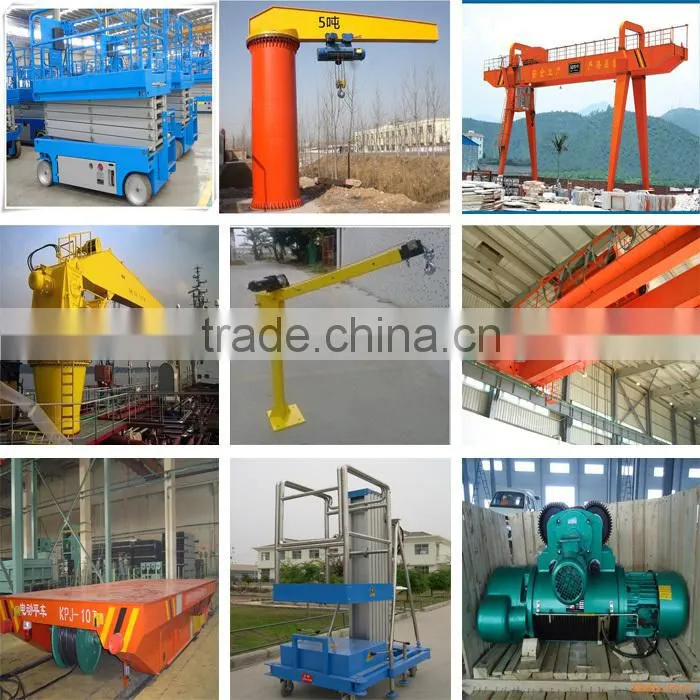

According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contact me or scan our website www.kltqz.en.china.cn for more details.
1. Large pieces like main girders and supporting legs are delivered as bulk cargoes;
2. Smaller pieces such as electrical control, trolley, end carriages, motors ect. are packed in wooden boxes and delivered inside containers to avoid damages during sea transportation as much as possible.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation, people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
After-sale service
u 14 months warranty from the date of B/L
u One year quick-wear parts for free
u Professional technicians provide installation, commissioning services.
u Technical advisory for any time
As a professional exporter,our target is to serve worldwide clients with high-quality products,great-reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.We will supply you 24 hours a day and 7days a week after-sale services
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift, jib crane , grab, overhead crane,flatcar or other specials as your requirement!
5. What kind of payments do you support?
T/T, L/C, Western Union,Paypal, Trade assurance.
6.What is Trade assurance?
Trade Assurance is a free payment protection service for buyers.The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
Notice
As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.
1. Lifting capacity.
2. Lifting height.(hook center to ground)
3. Span(distance between the two rails)
4. Have you installed the rails? How long is it?
5. Power supply:--V--Hz--Phase?
This is only an overview of our products ,for more details,please never hesitate to contact VIVIAN
We Cherish Every Order From Every Customer !
