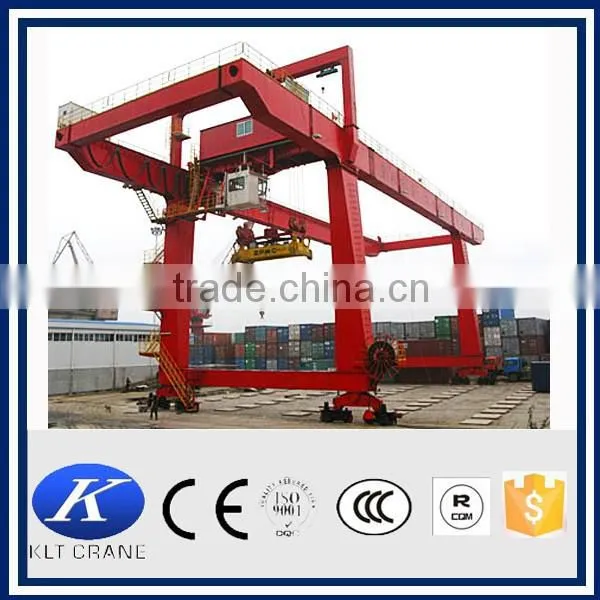

Port gantry crane, dock crane, container lift equipment
1.Brief description about Port gantry crane, dock crane, container lift equipment :
Port gantry crane, dock crane, container lift equipment:
(1)Mainly made up of bridge, trolley, crane traveling mechanism and electric system.
(2)Applies to the open warehouse or rail along for general handling and lifting work.
(3)Also can equipped with many lifting device for special work.
(4)Prohibited for lifting high temperature solution, flammable, explosive, corrosion,overloading,
dust and other dangerous operations .
Specifications of Port gantry crane, dock crane, container lift equipment :
- capacity: 10t~300t
- span: 20m~40m
- lifting height: 6~40m
2.Features of Port gantry crane, dock crane, container lift equipment :
Port gantry crane, dock crane, container lift equipment:
- Reasonable structure and favorable performance.
- Smooth starting and stopping.
- Safe and reliable traveling, long life.
- Low noise, commodious cabin with good view.
- Easy installation and convenient maintenance.
- Excellent exchangeability for parts and components.
- Negotiable price.
3.More details about Port gantry crane, dock crane, container lift equipment :
Port gantry crane, dock crane, container lift equipment:
| Port gantry crane, dock crane, container lift equipment | ||||||||
| Capacity | Main | t | 50 | 75 | 100 | 300 | ||
| Aux | 10 | 20 | 20 | 50 | ||||
| Span | S(m) | 30 | 35 | 35 | 35 | 35 | ||
| Lifting height | Main | m | 20 | 20 | 20 | 20 | 20 | |
| Aux | 18 | 18 | 18 | 18 | 18 | |||
| Lifting speed | Main | m/min | 8 | 8 | 8 | 8 | ||
| Aux | 9 | 9 | 9 | 9 | ||||
| Trolley speed | m/min | 20 | 20 | 20 | 20 | |||
| Crane speed | ||||||||
| Work duty | A5~A7 | A5~A7 | A5~A7 | A5~A7 | ||||
Port gantry crane, dock crane, container lift equipment:
As a lift equipment manufacturer with over 20 years experience, we KLT CRANE has set up a perfect sales
network and after-sales service system. We have 36 sales managers and 12 engineers especially for exporting
business.
We believe that with our rich experience, we can provide you a professional solution supporting and satisfied
service.
After order:
Delivery Time: After signing the contract and receiving the deposit, the products will take 15~25 working days.
Special standard will cost 5~10 more working days.
Order Tracking: After the deposit received, there will be a professional team tracking the order from production
to package and shipment.
Crane Testing: All the materials are purchased from high quality supplier in China or the world, beyond this, we
also make commissioning and test before packaging to avoid the trouble back.
After-sale Service:
Warranty Period: We provide 12 month warranty for main body. Within 12 month, there is any quality problem
with the main body(not including the wearing parts), we will arrange our professional engineers to provide repairing service. Also we will provide one group wearing parts for free.
Installation Service: If customer don't need our engineers for installation, we will provide Remote Advisory
Services. Also we could arrange engineers to provide installation service if customer need.
Periodic follow up: for cranes serving situation. Collecting customers comment, develop better products and service.
Any problems come out in the usage, if that because of the quality we will take full responsibility, and arrange
professional after-sale department to provide solution. if that because of the misoperation or other problems,
we will also provide a professional technological supporting or arrange our engineers to help if customer need.
4.More Gantry Cranes:Product OEM:
High Quality Double Beam Gantry Crane with Electric Trolley
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
- Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
- Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Delivery Detail:
- If the size of whole crane are suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Within 25-60 working days after the deposit received.
Customer visiting
Our services
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
-
Trade Assurance Service.
(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
If you have any interest in our products or any questions,
please do not hesitate to contact me. I will help you to know
more about our products' detail.
