Specifications
polyester silicone film manufactureProduction Capacity:800tons per month above
20FCL :12-16tons
40FCL:22-24tons
1) silicone film specifications:
Product name : polyester silicone film manufacture
Product number : Shengda-101
Peel strength:1-250G
Product thickness:23um~250um
specifications:100um*1120m*500m or as client's requirement
Product name |
Material |
Release force |
thickness |
Color |
width |
usage |
Transparent pet release film |
PET |
Light mold and heavy mold |
23um~250um |
White, transparent,Blue ,red, yellow and so on |
Below2000mm(can do as customer’s requirement) |
Tape,MLCC,Die-cuttingetc |
Product structure:transparent PET(Polyethylene terephthalate glycol ester)+Mold coating
Technical indicators:
features |
PET release film |
|
film |
material |
Polyethylene terephthalate glycol ester |
color |
transparent |
|
inner diameter(mm) |
76.2±0.5 |
|
Density ( g/cm3) |
1.4 |
|
The tensile strength (Mpa) |
≥140 |
|
Elongation at break(%) |
≥90 |
|
Shrinkage(%) |
≤0.6; The difference between the vertical and horizontal≤0.6 |
|
Turbidity(%) |
≤3.5 |
|
Temperature resistance(℃) |
-100~200 |
|
Surface coating weight ( G/m2) |
0.2-0.6g |
|
odour |
No |
|
soluble |
Insoluble in water and solvents |
|
Residual adhesion (%) |
≥90 |
|
3)
Feature: Excellent physical and mechanical properties, advantages: Small thickness tolerance, High transparency, Low thermal shrinkage, Good flexibility and so on.
High temperature resistant ,Smooth surface is bright and clean, even coating thickness,no fold, no tear, no granule, no air bubble, no Other defects.

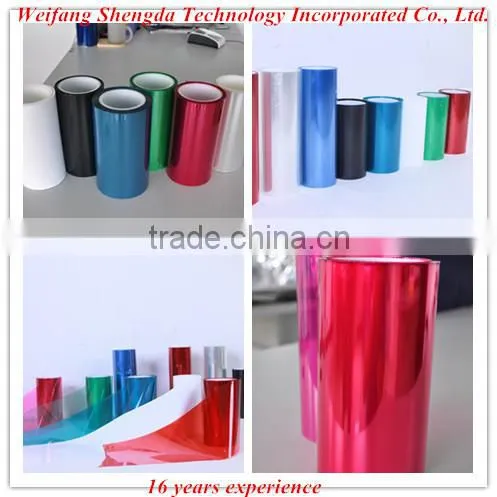

2)silicone film pictures:

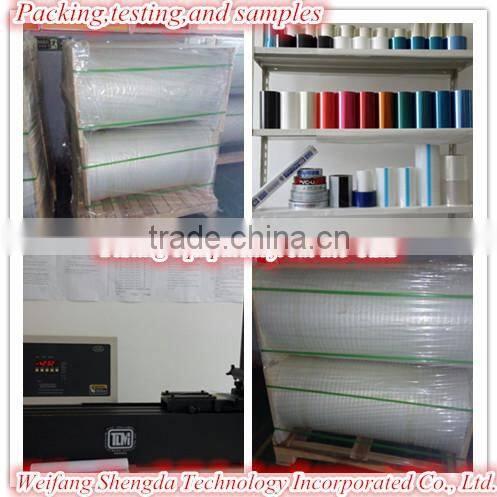

3)Our testing equipment and samples:
Testing equipment:
Origin: The United States
The equipment company : Chemlnstruments
The equipment model: AR-1000

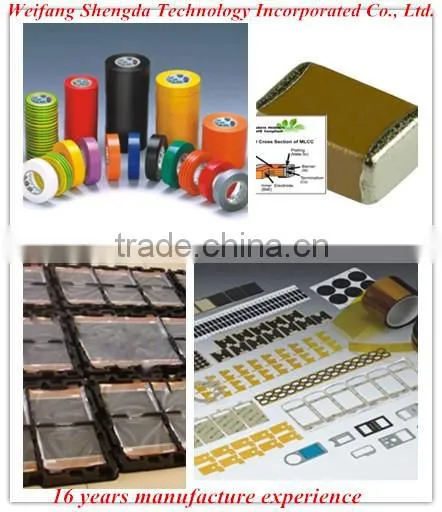

4) Transparent pet release film usage:
4)Our certificate for blue PET release film:

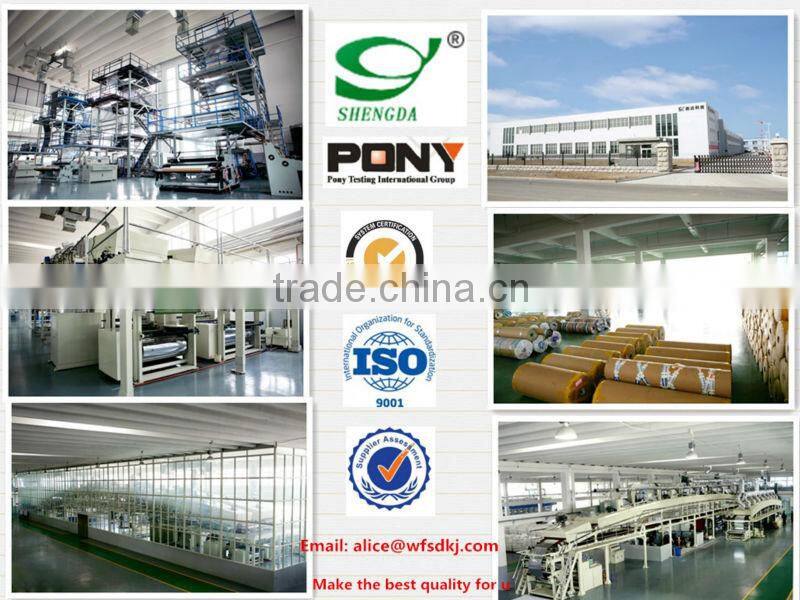

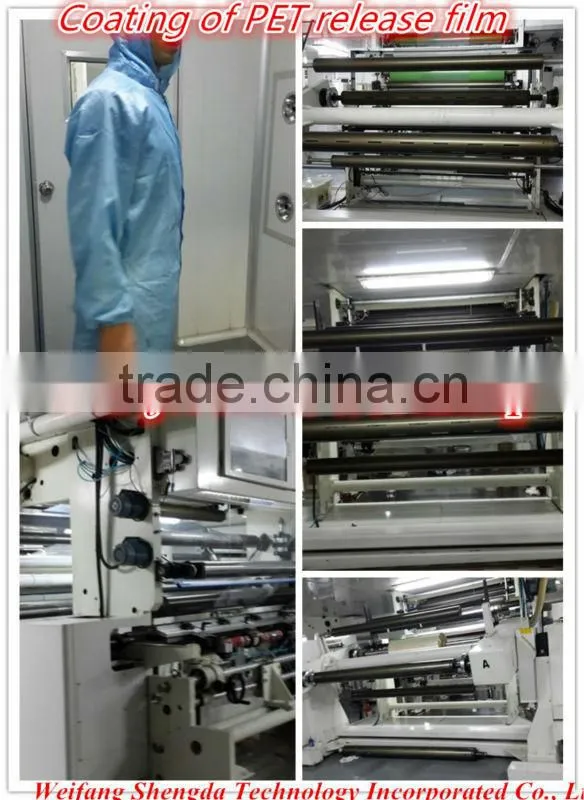

5) Purification workshop workshop and factory picsfor silicone release film:
5)why us:
1)Our main product is PET release film (base material is PET film, coating silicon).We have the whole production line of PET release film (Including coating ,rolling, rewinding, cutting, packing and so on ).We also have testing equipment from the USA. With professional testing personnel, we do strict process for every production line.
2)Our factory is about one hour to Qingdao port. So we have Powerful traffic advantages.
Almost 20 years experience ,stable supplier for LG,Sumsang,Haier and so on.
Advanced testing equipment from the USA.
Good quality with competitive factory price;
It’s better that you can send us the samples of your pet release film for our testing. Our engineers will analyze the surface condition of your products, then provide you the appropriate protection solution and products.
If you are interested in our products ,please don't hesitate to contact me!
6)Contact us:
