Specifications
One side silicon release liner with 16 years factory experience1)Good release
2)smooth surface
3)silicon release liner
One side silicon release liner with 16 years factory experience
1) silicon release liner specifications:
Product name : silicon release liner manufacture
Product number : Shengda-100
Peel strength:1-250G
Product thickness:23um~250um
specifications:100um*1120m*500m
Base material |
Data composition |
PET film |
Polyethylene terephthalate glycol ester |
Mold release agent |
Organic silicon |
Item |
Unit |
Measurement method |
|
|||||||
SD02 |
SD04 |
SD06 |
SD08 |
SD10 |
SD12 |
|||||
thickness |
um |
ASTMD374 |
36~250 |
23~250 |
23~250 |
23~250 |
23~250 |
23~250 |
|
|
Haze |
% |
ASTMD1003 |
2~10 |
2~10 |
2~6 |
8~10 |
2~10 |
2~10 |
|
|
Peel strength |
g/inch |
TESA 7475 tape(300mm/180 ) |
12~120 |
4~66 |
5~40 |
4~66 |
8~20 |
5~40 |
|
|
Residual adhesiveness rate |
% |
NITTO 31B tape |
>=85 |
85~97 |
97 |
85~97 |
>=95 |
97 |
|
|
Surface wetting tension |
Dynes |
|
|
19~40 |
|
|
|
|
|
|
Product structure:transparent PET(Polyethylene terephthalate glycol ester)+Mold coating
Technical indicators:
features |
PET release film |
|
film |
material |
Polyethylene terephthalate glycol ester |
color |
transparent |
|
inner diameter(mm) |
76.2±0.5 |
|
Density ( g/cm3) |
1.4 |
|
The tensile strength (Mpa) |
≥140 |
|
Elongation at break(%) |
≥90 |
|
Shrinkage(%) |
≤0.6; The difference between the vertical and horizontal≤0.6 |
|
Turbidity(%) |
≤3.5 |
|
Temperature resistance(℃) |
-100~200 |
|
Surface coating weight ( G/m2) |
0.2-0.6g |
|
odour |
No |
|
soluble |
Insoluble in water and solvents |
|
Residual adhesion (%) |
≥90 |
|

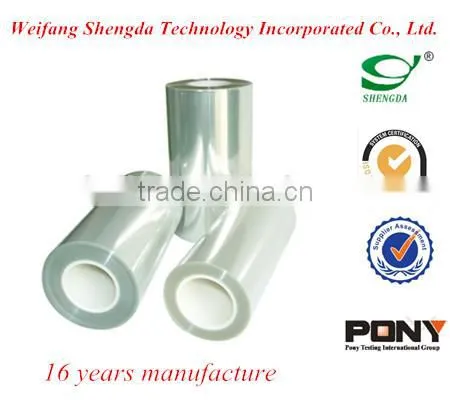

2) silicon release liner pictures:
Our silicon release liner testing equipment and samples:
Testing equipment:
Origin: The United States
The equipment company : Chemlnstruments
The equipment model: AR-1000
4) Transparent pet release film usage:
4)Our certificate for blue PET release film:
5)dust-proof workshop for transparent pet release film:
5)why us:
Almost 20 years experience ,stable supplier for LG,Sumsang,Haier and so on.
Advanced testing equipment from the USA.
Good quality with competitive factory price;
It’s better that you can send us the samples of your pet release film for our testing. Our engineers will analyze the surface condition of your products, then provide you the appropriate protection solution and products.
If you are interested in our products ,please don't hesitate to contact me!
6)Contact us:
