CE, ISO Certified Frame Type Single Girder Gantry Crane
US$ 1,500 - 8,900
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Outdoor, Warehouse
Rated Loading Capacity:
32T
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao;ShangHai;LianYungang;TianJin and any other port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Supply Gantry Crane 32tUS$ 1,900 - 150,000MOQ: 1 Set -
High Quality Gantry Double Girder Pedestal CranesUS$ 1,900 - 150,000MOQ: 1 Set
-
High Quality Gantry Double Girder Cable CranesUS$ 1,900 - 150,000MOQ: 1 Set
-
Port Crane, Container Crane, Freight Container Handling CranesUS$ 20,000 - 250,000MOQ: 1 Set
-
High Quality Gantry Double Girder Steelworks CranesUS$ 1,900 - 150,000MOQ: 1 Set
Condition
New
Application
Outdoor, Warehouse
Rated Loading Capacity
32T
Rated Lifting Moment
320KN
Max. Lifting Load
32T
Max. Lifting Height
6m,9m,12m,ect.
Span
12~30m
Place of Origin
Henan, China
Brand Name
Kailite Crane
Model Number
MH-truss, MH single girder gantry crane
Certification
ISO;BV;GOST;TUV;CE;SGS
Warranty
12months
After-sales Service Provided
Overseas third-party support available
Product Description

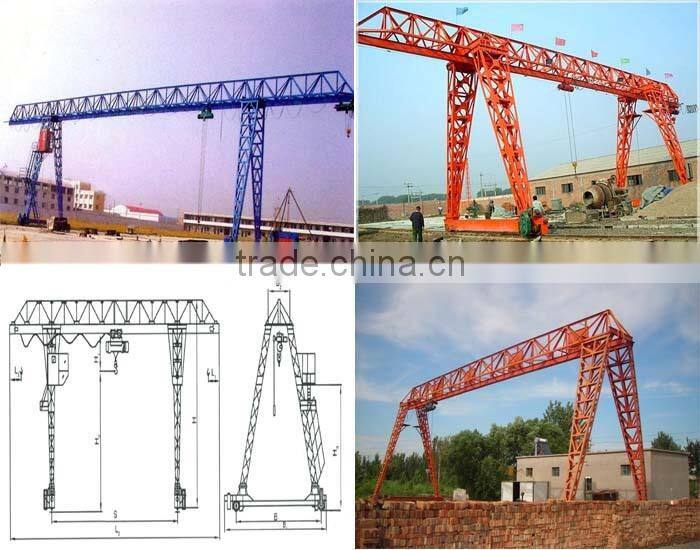

CE, ISO certified frame type single girder gantry crane
1.Brief description of single girder gantry crane
MH Model Frame Type Gantry Crane with Hoist is light in dead weight and strong in wind resistance.For different usage, MH gantry crane also has cantilever and non-cantilever gantry crane .If have cantilevers,the crane can load the goods to the crane edge through the supporting legs,which is very convenient and high efficiency.
2.Features of gantry crane
- Reasonable structure and favorable performance.
- Smooth starting and stopping.
- Safe and reliable traveling, long life.
- Low noise, commodious cabin with good view.
- Easy installation and convenient maintenance.
- Excellent exchangeability for parts and components.
- Negotiable price.
3.More details about gantry crane
| gantry crane | |||||
| Capacity | T | 5 | 16 | 20 | 32 |
| Operational method | Pendent control and remote control | ||||
| Lifting speed | m/min | 8,8/0.8 | |||
| Cross speed | 20 | ||||
| Electric hoist | Type | CD/MD/HC | |||
| Lifting height | m | 6,9,12 | |||
| Working duty | A3;A5 | ||||
| Power supply | 380V 50Hz 3-phase A.C | ||||
| Span | m | 12,16,20,24,30 | |||

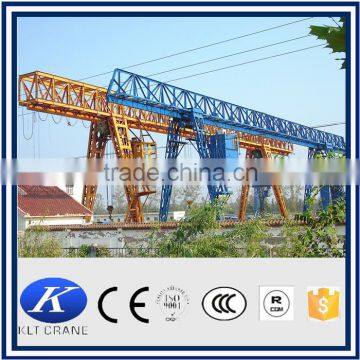

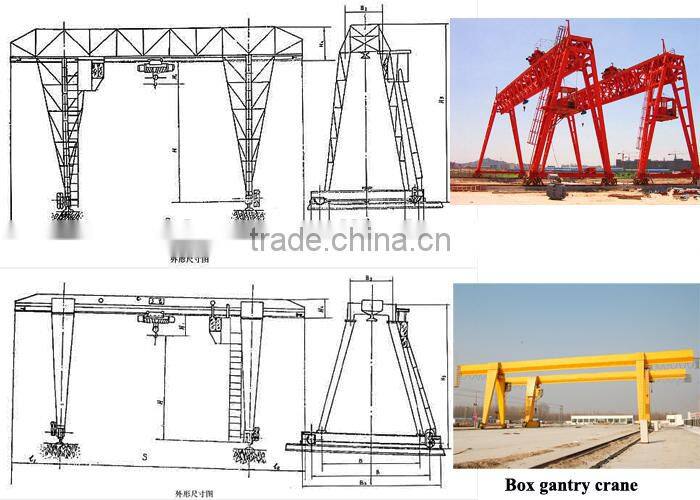

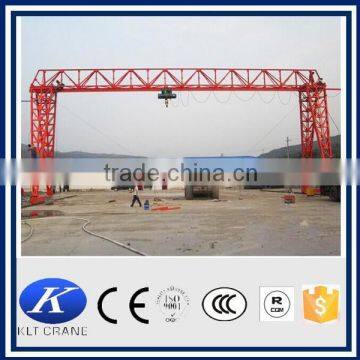

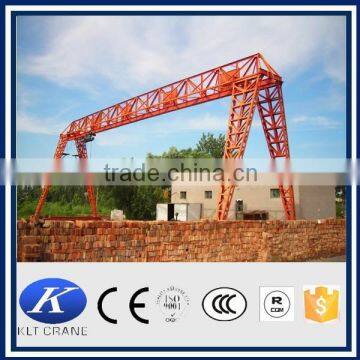

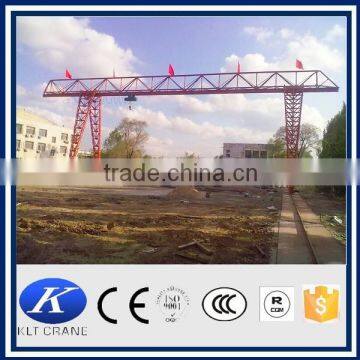

4.More gantry cranes:
Packaging & Shipping
Our delivery is Efficient,Reliable,and Prompt!
Packaging Detail:
- Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
- Main beams, end beams and electric hoist are packed by plastic woven cloth.
- It can reduce abrasion when transport.
Delivery Detail:
- If the size of whole crane are suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Within 20-45 working days after the deposit received.
Related Products
FAQ
In order to offer you a suitable design and best solution, Please tell us:
- Kinds of product you need?
- Working condition. Which material to lift? Temperature?
- Lifting capacity?
- Lifting height( distance from hook center to ground).
- Span(span=distance between center of two rails). With cantilever or not?
- Lift speed. (single or double? )
- Control mode(pendent line or wireless )?
Or other special requirements you tell us would be more appreciated.
Company Information
Customer visiting
Why choose us
Our Services
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
- Trade Assurance Service.(Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.)
If you have any interest in our products or any questions,
please do not hesitate to contact me. I will help you to know
more about our products' detail.
