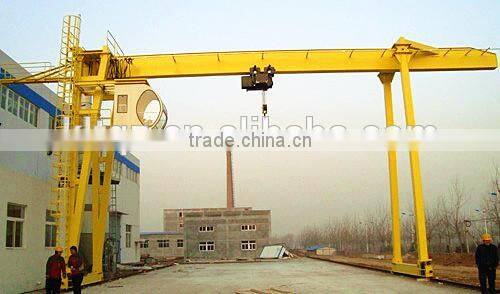

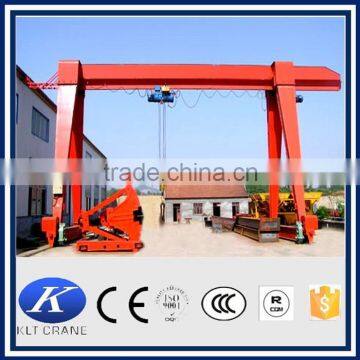

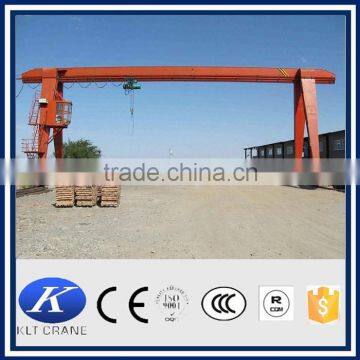

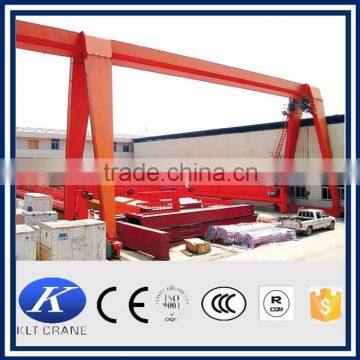

gantry crane 5 ton
1.Mainly made up of bridge, trolley, crane traveling mechanism and electric system.
2. Applies to the open warehouse or rail along for general handling and lifting work.
3. Also can equipped with many lifting device for special work.
MH model single beam gantry crane with electric hoist is matched with CD1/MD1 model wire rope electric hoist, it is a kind of track travelling MID-duty class gantry crane, the capacity for 3ton to 32ton, span from 12m to 35m, working temperature within-20--+40 centigrade.
Advantages of gantry crane
1. Light Dead Weight
2. Small Occupied Space
3. High Working Performance
4. Easy Operation
5. Safe and Reliable
6. Low Operation and Maintenance Costs
Single girder gantry crane is applied outside warehouse or railway sideways to do common lifting and unloading works. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch. The frame adopts box-type welding mechanism. Crane travellilng mechanism adopts separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. there are different capacity gantry crane for your choice according to your different use.
Detail features of gantry crane
Control methods of gantry crane
Safe features of gantry crane
1) Weight overload protective device
2) Top quality polyurethane buffer
3) Crane traveling limit switch and lifting limit switch
4) Low voltage protection function
5) Emergency stop system
6) Current overload protection function.
| Technological parameter | ||||||||||
| Lifting Weight | t | May-32 | Oct-50 | |||||||
| working class | A5 | |||||||||
| Span | S(m) | 18 | 22 | 26 | 18 | 22 | 26 | 30 | ||
| (m) Lifting Height | Primary | H1(m) | 10 | 10 | 12 | |||||
| Secondary | H2(m) | 10.73 | 10.918 | 12.918 | ||||||
| Speed | Lift | Primary | m/min | 7.5 | 5.9 | |||||
| Secondary | 19.7 | 13.2 | ||||||||
| cart travel | 34 | 36 | ||||||||
| handcart travel | 42.4 | 38.5 | ||||||||
| Motor total power | KW | 99.3 | 126.5 | |||||||
| Max.Wheel Pressure | KN | 245 | 258 | 276 | 356 | 356 | 377 | 409 | ||
| Steel track | 43kg/m QU70 | |||||||||
| Power Supply | 3-Phase A.C 50HZ 380V | |||||||||
| Note: crane weight are machine reference weight (based on the actual weight) | ||||||||||
Our technical team design the high quantity and energy-efficient standard product which can reduce the operation cost through the flexible design mode.
Related products
1. Large pieces like main girders and supporting legs are delivered as bulk cargoes;
2. Smaller pieces such as electrical control, trolley, end carriages, motors ect. are packed in wooden boxes and delivered inside containers to avoid damages during sea transportation as much as possible.
Xinxiang Kailite Crane Equipment Co.,Ltd
Xinxiang Kailite Crane Equipment Co .,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
After-sale service
u 14 months warranty from the date of B/L
u One year quick-wear parts for free
u Professional technicians provide installation, commissioning services.
u Technical advisory for any time
As a professional exporter,our target is to serve worldwide clients with high-quality products,great-reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.We will supply you 24 hours a day and 7days a week after-sale services
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift, jib crane , grab, overhead crane,flatcar or other specials as your requirement!
5. What kind of payments do you support?
T/T, L/C, Western Union,Paypal, Trade assurance.
6.What is Trade assurance?
Trade Assurance is a free payment protection service for buyers.The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.
1. Lifting capacity.
2. Lifting height.(hook center to ground)
3. Have you installed the rails? Do you need us supply the rails? How long is it?
4. Power supply: Voltage.
5. Working condition: which material to lift? temprature?
6. Would be better if you have drawings of your plant.
This is only an overview of our products ,for more details,please never hesitate to contact vivian !
