All You Want BZJ-1300 High speed Automatic Flute laminator machine
Function description:
1. Top sheet feeding machanism: equipped with high speed auto dedicaed feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly an smoothly.
2. Prepare the paper-pile in advance, it can reduce dowetime and make the production more efficent.
3. Cooperate with the adjustable bottom paper conveying system and imported electromagnetic valve to guarantee the corrugated sheets feeding more smooth and stable.
4. The automatic replenishment system of glue, and recycling with the glue to avoid loss of waste.
5. Front lay is automatic calibrated by Electric eye, Computer and Servo motor. The position of cardboard is detected by Electric eye, then the Computer operation, the Servo motor rectify automaticly, insure the precision of laminating.
6. According to the size of cardboard, revise the feeding speed of cardboard automaticly.
7. Machine uses touch-sceen/PLC control system, the circuit system is stabe, and can automatically dispaly the failure alarm.
8. Using imported belt, maintaince free. Rollers are in balance of static and dynamic, the rollers cooperate with the imported bearings that make the equipments more stable, and can guarantee procutes quality.
9.Suitable for color top sheet 150-700g and A/B/E corrugated paper laminating;
10.Color top sheet 150-700g and grey cardboard paper laminating.
Main Technical Parameter:
Model |
Max. Sheet size |
Min. Sheet size |
Total power |
Speed |
Weight |
Measurement |
GTM-1300 |
1300*1200 |
450*450 |
15kw |
10000sheet/h |
6500kg |
11000*2000*2500 |
GTM-1450 |
1450*1200 |
450*450 |
15kw |
10000sheet/h |
7500kg |
11000*2150*2500 |
laminator machine

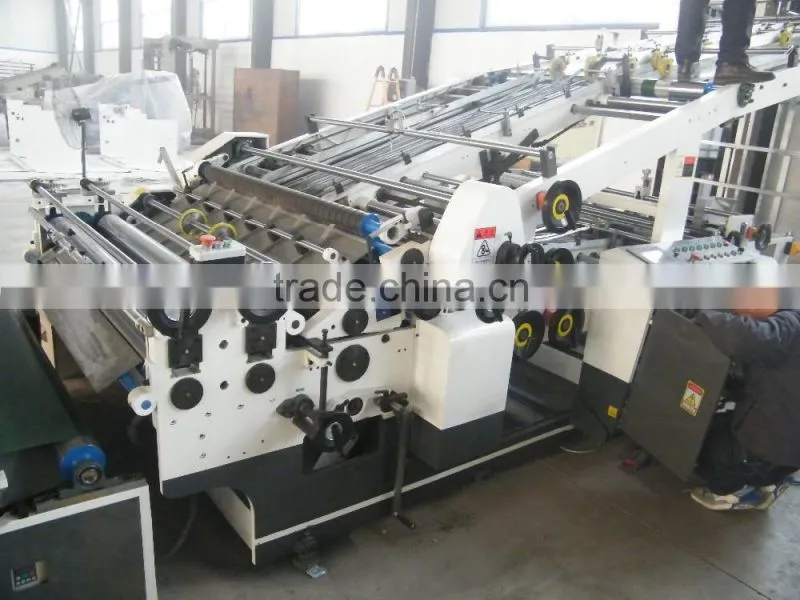

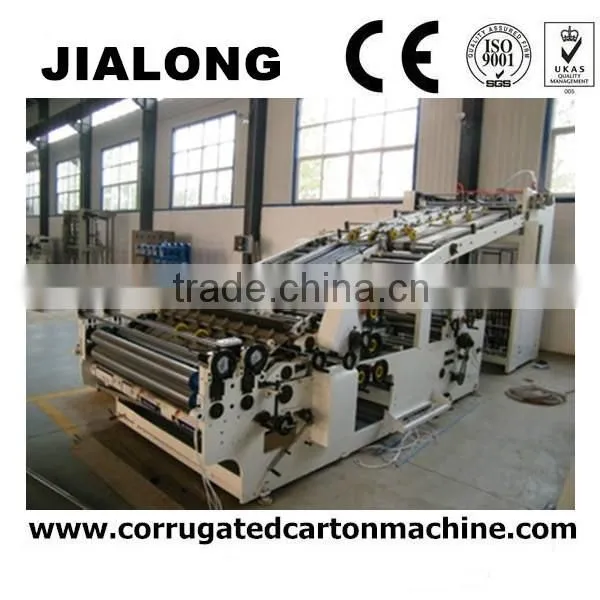

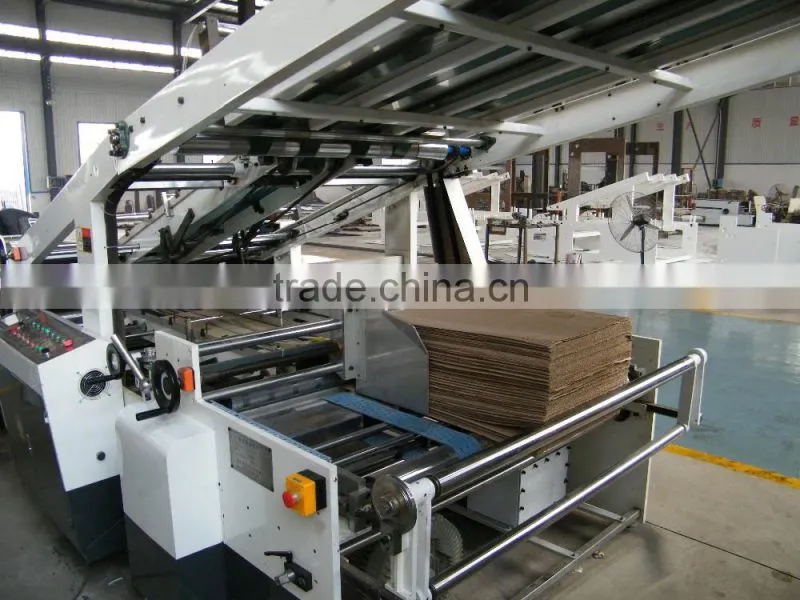

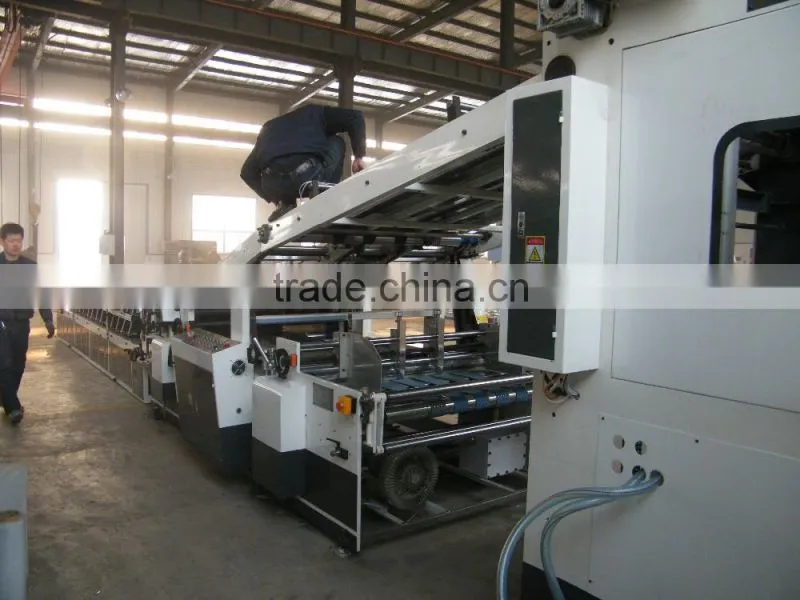

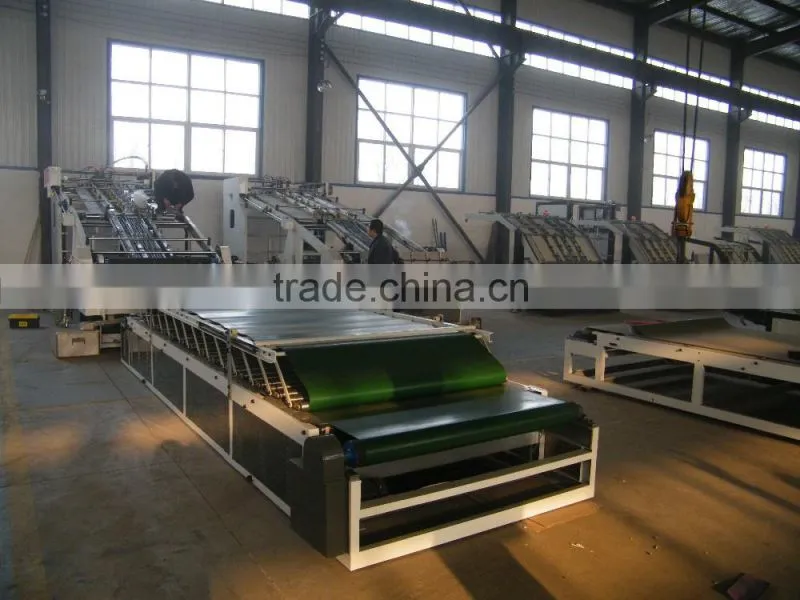

Machine details:
laminator machine
laminator machine
laminator machine
laminator machine
Jialong Packaging Machinery Co.,Ltd is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.
Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.
We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together
