10 ton european bridge lift overhead crane
- 1000 Set / Sets per Month
- Tianjin Qingdao Shanghai port
- T/T Credit Card
- Pillar column type jib cantilever slewing crane light working duty equipment
- New type boxed single beam bridge crane hoist traveling on square beam
- European design electric hoist double beam bridge crane hard tooth VFD
- Boxed type single girder gantry crane hoist lifting mechanism for sale
- European design double girder overhead crane KSQ model VFD speed control
- QD model double beam overhead crane bridge boxed beams for sale
Product Details
Condition: | New | Application: | Warehouse/workshop | Rated Loading Capacity: | 1ton~550ton, 1ton~550ton |
Rated Lifting Moment: | 10~5500KN, 10~5500KN | Max. Lifting Load: | 1ton~550ton | Max. Lifting Height: | 6m~30m, 6m~30m |
Span: | 7.5~31.5m, 7.5~31.5m | Place of Origin: | Henan, China | Brand Name: | KLT CRANE, KAILITE |
Model Number: | DG | Certification: | CE ISO9001 | Warranty: | 12 months |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Safety is our culture, quality is our aim.

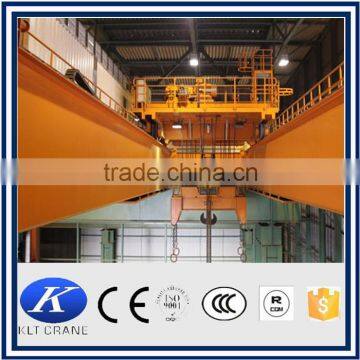

10 ton european bridge lift overhead crane
1.Brief description of lift crane:
European type lift crane have such design concepts as small dimension, light dead weight. Compared with traditional cranes, the limiting distance is minimum from hook to wall, and headroom is the lowest, which makes cranes work more close to the front, and lifting height more higher that increases effective working space of workplace. European bridge crane is composed with girder frame, crane travel device, and the trolley with lifting and moving device. There are full field of view cabin suspend under the main girder, there are joint control desk or single control box packed within the cabin, assemble the sidelong ladder between the cabin and moving table.
2.Features of lift crane:
1. Design: Compact dimensions, low weight, easy to operate and easy to maintain, modular
design with direct fits between components

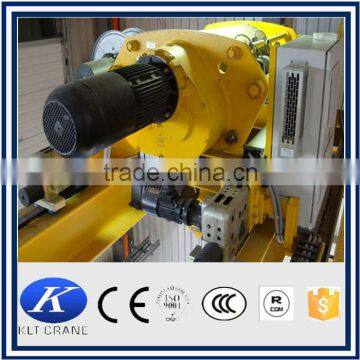

2. Motors: Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant cont
inuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection
3. Gear Boxes: Precision flat helical spur gear units in light alloy housings with case-hardened
gears, high-grade surface treatment and permanent oil/grease lubrication
4. Brakes: Single/ Dual-disc electromagnetic DC brakes featuring automatic braking on power
failure. Environmentally sound brake linings designed for approx. 1 million braking operations
allow long maintenance intervals
5. Electrical Panel: Modular design, covering a very wide operating range. The systems are
designed for ease of installation & maintenance and reliable operation, with fuse-less circuitry,
ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload
protection device to provide effective protection against inadmissible overloading
6. Painting: Every component & part is thoroughly scrubbed & painted with two coats of primer
before assembly & two coats of synthetic enamel after testing
7. Limit Switches : To prevent over hoisting & over lowering of hook
8. Push Button Stations : Extra light, handy, easy to operate, aluminum, fabricated from ext
ruded section.
9. Soft Starts : Electric / Electronic soft start modules electrically coupled to the long travel
drives to achieve jerk free, cushioned & smooth starts
10. Maintenance Platform With Hand Railing : Easy, simple and safe maintenance of the
crane extended partially or totally along the girder
3.Applications of lift crane:
This model lift crane mainly consists of bridge, end girder travelling mechanism, Winch trolley and electrical appliances.They are applicable to the transfer, assembly, check and repair as well as load and unload at mechanic processing workshop,subsidiary workshop of metallurgical mills, warehouse, in light textiles or food industry.Advanced equipment and manufacturing shop is the guarantee.We are committed to produce the best quality products.
4.Safety features of lift crane:
Safety is our culture, quality is our aim. To ensure the safety, the following safety devices are equiped in DG cranes.
- Crane traveling limit switch
- Weight overload protection device
Lifting height limit device
Voltage lower protection function
Phase sequence protection function
Emergency stop function
Rain cover for outside hoist, driving units, electrical cubicle.
Warning indicator: flashing lights and warning sound.
Wireless infra-detector for anti-collusion
Lifting Capacity T | 5 | 10 | 16/3.2 | 20/5.0 | 25/5.0 | 32/5.0 | 50/10.0 | |||
Span M | 10.5-31.5 | |||||||||
Lifting height M | Main Hook | 16 | 16 | 16 | 12 | 12/11.0 | 16 | 12 | ||
Aux Hook | 18 | 11 | 14/13 | 18 | 16 | |||||
Speed M/min | hoist | Main hook | A5 | 12.5 | 8.5 | 7.9 | 7.2 | 7.3 | 7.8 | 5.9 |
A6 | 15.5 | 13.3 | 13 | 9.7 | 9.8 | 9.5 | 7.8 | |||
Aux hook | 14.5 | 12.7 | 12.7 | 19.5 | 13.2 | |||||
Trolley traveling | 37.2 | 43.8 | 44.6 | 44.6 | 37 | 42.4 | 38.5 | |||
Bridge traveling | A5 | 89.8 /92.3 | 89.8-91.9 | 84.7-87.6 | 84.7/ 87.6 | 85.5/88 | 74.2-87.6 | 74.6 | ||
A6 | 116.2/ 117.4 | 112.5-116.8 | 112.5 | 112.5/ 101.4 | 112/ 101.4 | 86.8-101.4 | 87.3 | |||
Weight Kg | Trolley | A5 | 2126 | 3424 | 6227 | 6856 | 7185 | 10877 | 15425 | |
A6 | 2224 | 3562 | 6427 | 7180 | 7856 | 11652 | 15765 | |||
Total Weight | A5 | 12715-31405 | 14270-34405 | 19128-39428 | 19947-41497 | 20795-42796 | 26901-52748 | 35317-64880 | ||
A6 | 12991-31596 | 14719-34699 | 20045-41315 | 20984-44225 | 22632-16324 | 28061-55272 | 36075-67242 | |||
Max Wheel Load KN | A5 | 74-125 | 102-160 | 141-205 | 163-231 | 185-255 | 237-327 | 333-450 | ||
A6 | 75-126 | 104-162 | 145-211 | 167-239 | 189-263 | 242-335 | 336-457 | |||
Rail recommended | Trolley | 15kg/m | 43kg/m | |||||||
Bridge | 43kg/m | QU70 | QU80 | |||||||
Power Source | 380V 50HZ 3Phase or based on your request |
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
· If the size is suitable for container ship, usually by container;
· If the size is too big, usually by bulk ship or by container after truncation;
· Transport ways are based on reducing cost for you and keep the crane performance!
You may have interests in these products
According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our wedsite www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation, people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
Customer-visits:
You can use our cranes at ease, the best after-sales service will be offered from Kailite.
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Low charge for continue maintenance when warranty is expired.
4, Exclusive engineer support at any time.
5, We can provide free training to end-users.
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on
detail requirement! So if you give us more information about the lift capacity, span, lift height,
power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepar
e for you! The information such as the lift capacity, span, lift height, power source or other special
s you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with
push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin
(space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift, jib crane , grab,
overhead crane,flatcar or other specials as your requirement!
NOTICE
Welcome to sent us email or leave me message to tell me details of lift crane demand so that I can sent you offer in shortest time:
- 1. Llifting capacity?
- 2. Span?
- 3. Power supply mode?
- 4. Lifting height?
- 5. Or other detailed requirements?
We Cherish Every Order From Every Customer !
I am Jackie,waiting for your contact.
