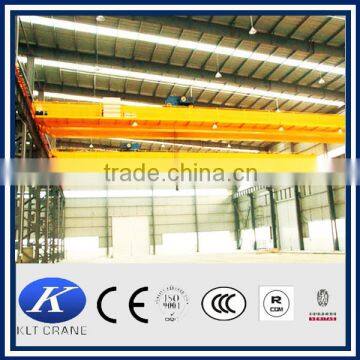

Europe style box double girder overhead lifting cranes
1.Brief introduction about lifting cranes :
It is one kind of heavy duty double girder bridge crane,it is widely used in plants,warehouses,materials stocks to lift goods or materials.And it is prohibited to use this equipment in the combustible,explosive and corrosive environment.
Compact design, optional use of the size of work areas !
2.Features about lifting cranes :
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or stepless speed change
9)Primer and finishing paint
10)Crane structure:steel box type
3.Safety Features about lifting cranes :
1)Overloading protection
2)Top quality long time bearing polyurethane materials buffer
3)Crane traveling and cross limit switch
4)Voltage lower protection function, reduce energy consumption
5)Main lifting motor with thermal protection
6)Hooks with latch
7)Rubber buffers
8)Protective earthing
9)Sub-assembly characteristic are tested before assembly
10)Emergency stop system, current over-load protection system, Excellent exchangeability for parts and components
| Capacity(t) | Span(m) | Lift height(m) | Work class | Lift speed(m/min) | Trolley speed(m/min) | Crane speed(m/min) |
| 5 | 10.5 | |||||
| 0.66/4 | ||||||
| 13.5 | 6 | 0.8/5 | ||||
| 16.5 | ||||||
| 19.5 | 9 | A5 | 1.0/6.3 | 2.0~20 | 3.0~30 | |
| 22.5 | ||||||
| 25.5 | 12 | 1.3/8 | 3.0~30 | 4.0~40 | ||
| 28.5 | ||||||
| 31.5 | 1..6/1.0 | |||||
| 10 | 10.5 | |||||
| 6 | 0.66/4 | |||||
| 13.5 | 9 | A5 | 0.8/5 | 2.0~20 | 3.0~30 | |
| 16.5 | ||||||
| 19.5 | 12 | 1.0/6.3 | 3.0~30 | 4.0~40 | ||
| 22.5 | ||||||
| 25.5 | 1.3/8 | |||||
| 28.5 | ||||||
| 31.5 | ||||||
| 16 | 10.5 | |||||
| 13.5 | ||||||
| 16.5 | ||||||
| 19.5 | 6 | 0.53/3.4 | ||||
| 22.5 | ||||||
| 25.5 | 9 | A5 | 0.66/4 | 2.0~20 | 3.0~30 | |
| 28.5 | ||||||
| 31.5 | 12 | 0.8/5 | 3.0~30 | 4.0~40 | ||
| 20 | 10.5 | |||||
| 13.5 | ||||||
| 16.5 | ||||||
| 19.5 | 6 | 0.53/3.4 | ||||
| 22.5 | ||||||
| 25.5 | 9 | A5 | 0.66/4 | 2.0~20 | 3.0~30 | |
| 28.5 | ||||||
| 31.5 | 12 | 1.2/4.95 | 3.0~30 | 4.0~40 | ||
| 32 | 10.5 | A5 | ||||
| 13.5 | 6 | 0.6/2.6 | ||||
| 16.5 | ||||||
| 19.5 | 9 | 0.8/3.3 | 2.0~20 | 3.0~30 | ||
| 22.5 | ||||||
| 25.5 | 12 | 0.82~4.9 | 3.0~30 | 4.0~40 | ||
| 28.5 | ||||||
| 31.5 | 1.03~6.2 | |||||
| 50 | 10.5 | A5 | ||||
| 13.5 | ||||||
| 16.5 | ||||||
| 19.5 | 6 | 0.4~2.4 | ||||
| 22.5 | ||||||
| 25.5 | 9 | 0.53~3.2 | 2.0~20 | 3.0~30 | ||
| 28.5 | ||||||
| 31.5 | 12 | 3.0~30 | 4.0~40 |
Product OEM:
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Within 20-45 working days after the deposit received.
Customer visiting
Our services
- Sales manager cell number is 24hours available.
- Payment terms is flexible.
- Design the product according to your technical request.
- Our engineer is willing to help fixing the crane for you.
- Diversity products.
- Delivery on time.
- Warranty: 12 months.
If you have any interest in our products or any questions,
please do not hesitate to contact me. I will help you to know
more about our products' detail.
