tdd-cofdm wireless ip mesh digital video bridge

Name: tdd-cofdm wireless ip mesh digital video bridge
Brand: Safe Guard
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Shenzhen Port
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Safe Guard

Model Number:

SG-2400NB

Product Description

Product Description for tdd-cofdm wireless ip mesh digital video bridge

SG-2400NB TDD_COFDM are the new developing products of our company. It is wireless transmission equipment for our latest Mini pure digital.

Main Feature

Main Feature for tdd-cofdm wireless ip mesh digital video bridge

1) Provide up to 6.5Mbps of data flow, dynamic adaptive rate allocation technology;

2) Smart settings, simple operation, easy to use;
3) Support transparent PTP&PMD network technology;
4) Safety with AES 128 bit, can set user’s password;
5) Support non line of sight ( NLOS ) high-speed mobile transmission;
6) Provide standard RS-232&RS-485 + RJ45 ethernet;
7) Transmit/receive video audio,data and other multimedia signals simultaneously;
8) Support high standards of Industrial and military level applications;

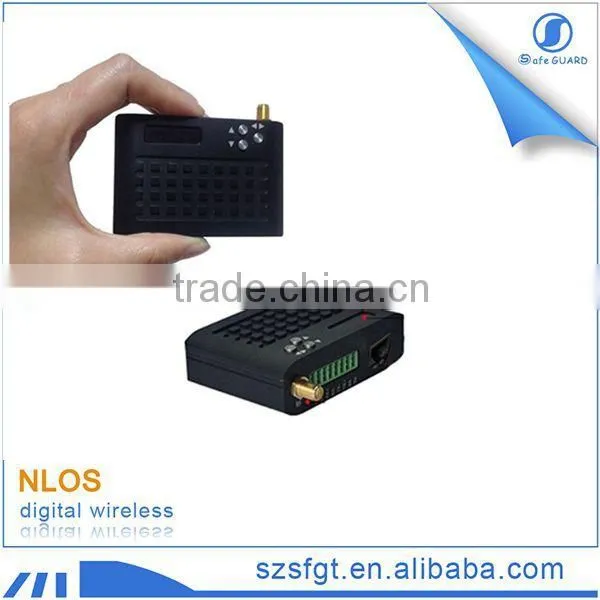

9) The small volume, light weight, easy to carry, the radiating aluminum casing;
10) High clear OLED digital display, the interface simple and easy operation.

Product Parameters

Product Parameters for tdd-cofdm wireless ip mesh digital video bridge

tdd-cofdm wireless ip mesh digital video bridge
Power supply	DC7V～17V, 6W consumption
Ethernet	10/100BaseT、Auto-MDI/X、IEEE802.3
Ethernet	TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Output frequency	2405～2470MHz（adjustable）
Output rf power	100-1000mW(30dBm) (adjustable)
Bandwidth	4MHz/8MHz (adjustable)
Interface	RJ-45 ethernet ,RS232/RS485/RS422
Reolution	Support 720P and 1080P@50/60hz, 30 frames
Encryption mode	128bit AES(or 256bit AES)
Error correction mechanism	32bit of CRC,ARQ
Modulation	TDD_COFDM
Parameter control	Through OLED control panel to modify parameters
Working temperature	-40℃～85℃

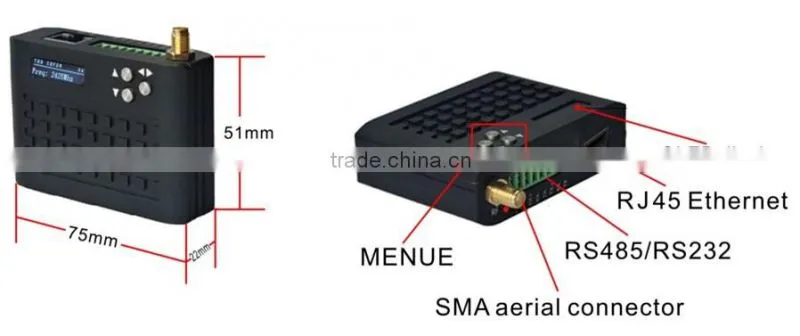

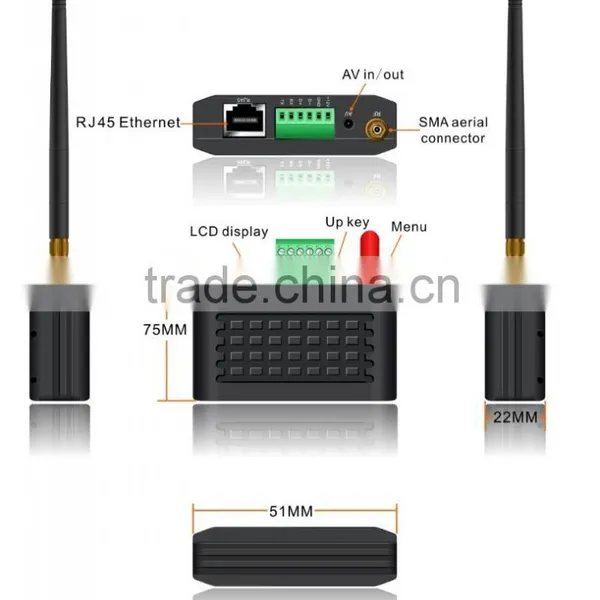

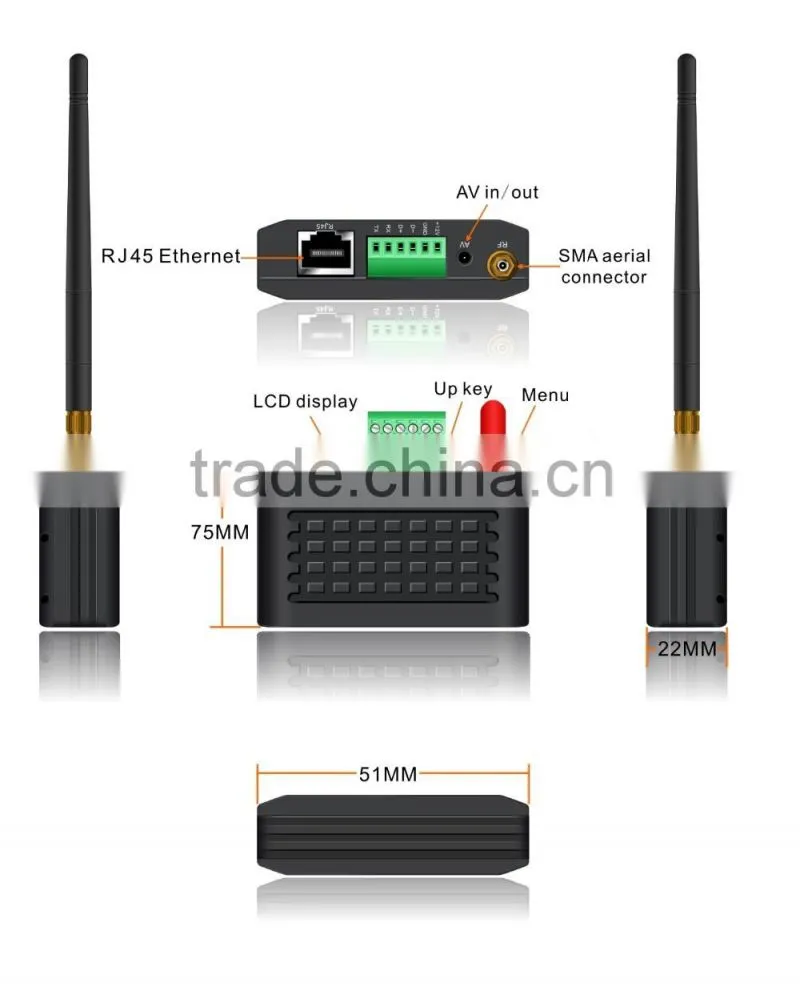

Dimension	755122mm
Weight	135g

Product Application

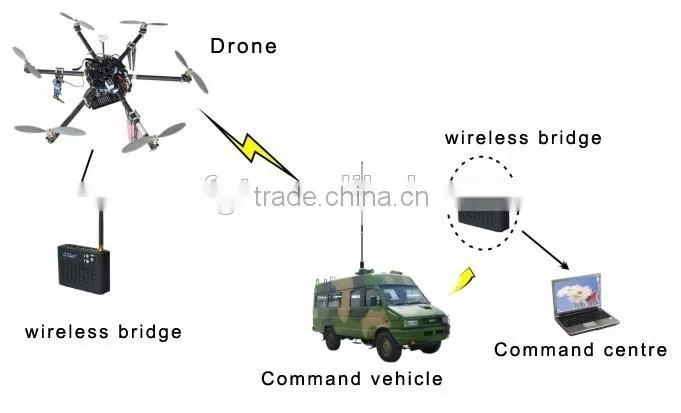

It has advantange of small volume and light weight,especially widely used in UAV/ drones /Quadcopter/Octocopter/hexacopter, WIFIBOT Network building and etc.. such fast-moving complex environment video data signals transmission.

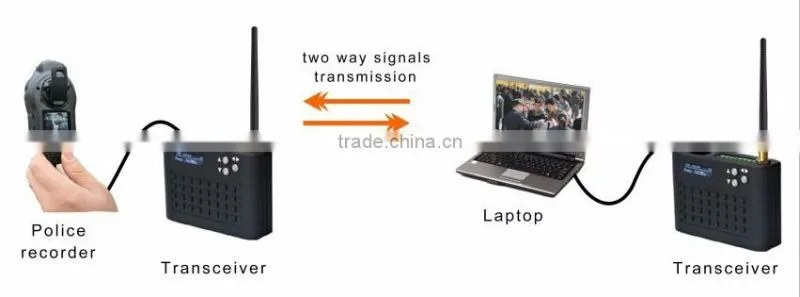

Solution 1

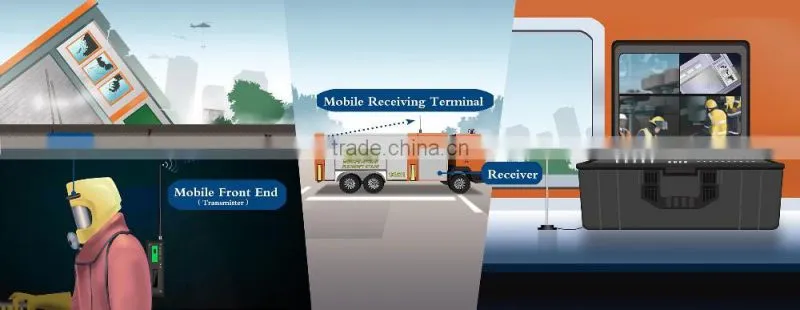

Solution 2

Our Service

Our Service for tdd-cofdm wireless ip mesh digital video bridge

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifelong maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufactory in wireless microwave transmission area for over 17 years, we are the source.

Contact Us

Shenzhen Safe Guard Co., Ltd.: Contact nameKathy Li; Phone86-755-82908961; AddressRoom 21L,Block 9C,Baoneng Technology Park,No.1 Qingxiang road,Longhua new district,Shenzhen city; Shenzhen,Guangdong
