Wireless RS485/RS232 Radio Modem

Name: Wireless RS485/RS232 Radio Modem
Brand: SAFE GUARD
SKU: 123774037
Availability: InStock

Wireless RS485/RS232 Radio Modem thumbnail-1

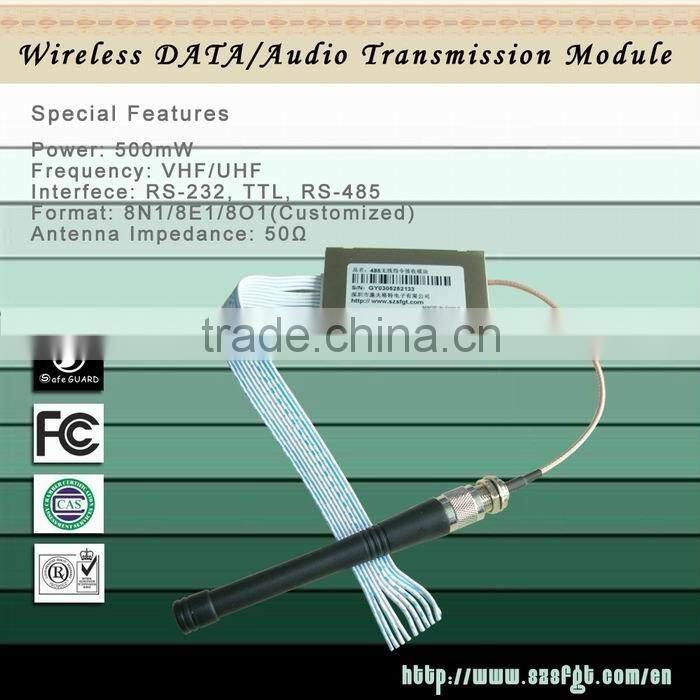

Wireless RS485/RS232 Radio Modem photo-1

US$ 1 - 200 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SAFE GUARD

Model Number:

SG-M304

Contact Supplier Request Quote Chat Now

Shenzhen Safe Guard Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SAFE GUARD

Model Number SG-M304

Wireless RS485 Transmitter Receiver

SG-M304 is a module of DATA transmission integrated with voice communication. Specially designed for automatic industry with high reliability and stability. Provide voice transmission channel, can be connected to a microphone or loudspeaker directly, very easy to extend its functions and applications by the clients. And moreover, we are always ready for your OEM.

Features:

Use TCXO and digital PLL advanced technologies, high stability;

Integration of transceiver, both digital and analog signals can be send and switch quickly;

Steady outsell, good hidden and stronger anti-interference;

Industrial designees, work temperature: -40~+70°C;

Several kinds of interfaces for choice: RS-232, TTL, RS-485;

DATA Format: 8N1/8E1/8O1( Customized )

Antenna Impedance: 50Ω (SMA Customized)

Application:

Remote reading system of water, electric and gas supply;

Building Automation, security & protection, devices monitoring and access control

system;

Wireless calling system;

Spot management, station management;

RF transmitter Wireless electronic display screen and queuing machine;

Electronic bus station and intelligent traffic;

Alarm systems.

Specification:

Frequency: VHF/UHF ( 223-235MHz )

Power: 500mW

Frequency stability: ± 2.5ppm

Mode: half-duplex

Channel spacing: 25KHz

Voltage: DC 12V ( Customized )

Transmission distance: 2km

Receiver Indicator:

Usable sensitivity: ≤0.25μV (12dB SINAD)

Adjacent channel selectivity: ≥70dB

Spurious Response Immunity: ≥ 65dB

Adjacent channel power ratio: ≥70dB

Audio Output: 0.5W(8Ω, 10% Distortion)

Distortion: ≤3%

Current: ≤ 50mA

Transmitter indicator:

RF Output: 500mW

Adjacent channel power ratio: ≥70dB

Modulation Distortion: ≤3%

Modulation Sensitivity: 5mV

Current: ≤300mA

Size: 70*46*8mm

Interfaces definition:

	Name	Description	Level	Remark
1	VCC	DC	12 V	DC 12V ( as good in range 7.5~15V), or customized
2	VCC	DC	12 V	DC 12V ( as good in range 7.5~15V), or customized
3	GND	GND	---------	-----------------
4	GND	GND	---------	-----------------
5	A(TXD)	RS-485 A or TXD of RS-232		Either RS-485 or RS-232
6	B(RXD)	RS-485 B or RXD of RS-232		Either RS-485 or RS-232
7	PTT	Transmit control	TTL	Low level validity
8	MIC	Audio input	--------	Recommend 1K-2K, -27dB sensitivity of microphone
9	SP	Audio output		8Ω 0.5
10	SQ	Receiving indication	TTL	High-level

6 Complete set of equipment:

1. One module of SG-M304;

2. 10 pin flat connector;

3. A whip antennas ( about 10cm)

7 Antenna appearance structure:

Many appropriative antennas for low power RF modules are selected to meet different user’s antenna configuration. Please ask our Sales office for further information about the antenna’s dimension and performance. The main options of antennas are exterior flabelliform rubber antenna with helical SMA joint, small osculum antenna, small rod antenna and elbow antenna. If the user has special demands on antennas, we can design and produce individually.
