Home > Lights & Lighting > LED Outdoor Lighting > LED Wall Washer > 1000mm 24 Watt Led Linear Wall Washer 24x1W

1000mm 24 Watt Led Linear Wall Washer 24x1W

Name: 1000mm 24 Watt Led Linear Wall Washer 24x1W
Brand: Heguang
SKU: 123773159
Availability: InStock

1000mm 24 Watt Led Linear Wall Washer 24x1W thumbnail-1

1000mm 24 Watt Led Linear Wall Washer 24x1W photo-1

US$ 53 - 68 MOQ: 4 Pieces

Key Specifications

Get Latest Price

LED Light Source:

Power LED

Warranty(Year):

Input Voltage(V):

24V DC

Contact Supplier Request Quote Chat Now

Shenzhen Heguang Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Power LED

Warranty(Year) 2

Input Voltage(V) 24V DC

Lamp Power(W) 18

Lamp Luminous Flux(lm) 1600

Lamp Luminous Efficiency(lm/w) 80

Color Temperature(CCT) Pure White

Working Temperature(℃) -10, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CE

Place of Origin China

Brand Name Heguang

Model Number HG-WW-18X1W

Specifications

1000mm 24 watt led linear wall washer 24x1W
1.Extruded aluminum body.
2.2 years warranty.
3.Perfect outdoor

1000mm 24 watt led linear wall washer 24x1W

Feature:

1. LED wall washer series is linear type design,for symmetrical lighting.Fluent RGB patterns can be lighted up high buildings or as a decoration for wall both indoor and outdoor.

2. The main body is thickened type aluminum with temoered glass cover.Sealed by silicone ring,then fixed by screws. Surface is anodic oxidation finish (silvery grey) which make the light can work in outdoor (rainy and multiple weather..And it is easy to install.

3. High power LED as light source,with chip from Epistar,Epileds and Bridelux

4. Constant driver to make sure LED light working stably,with LED display and buttons to control RGB color

5.Voltage:DC 24V, Frequency: 50/60HZ

6. Color: RGB,or single color – white, red, green, blue, yellow

7.Beam angle: 15°/30°/45°/60°

8. Life span 50000 hours

9. Over current protection

Models list:

Item No.	Color	Description
HG-WW-18×1W	RGB,R/G/B/W/Y	18 pcs * 1W LED,19±1 W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512 ,IP65
HG-WW-18×3W	R/G/B/W/Y	18 pcs * 3W LED,35±1.5 W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512,IP65
HG-WW-24×1W	RGB,R/G/B/W/Y	24 pcs * 1W LED,26±1 W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512,IP65
HG-WW-36×1W	RGB,R/G/B/W/Y	36 pcs * 1W LED,38±1.5 W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512,IP65
HG-WW-36×3W	R/G/B/W/Y	36 pcs * 3W LED,65±2W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512,IP65

Description:

Electrical Characteristics
NO	Description		Unit	Parameter
1	Input voltage		V	DC24
2	LED working voltage		V	18-20
3	LED output current		mA	900
4	Frequency		HZ	50/60
5	POWER		W	19±1
6	Efficiency		%	85
7	Connection wire		Black wire	DC-
8			Red wire	DC+
Photometric Characteristics
1	LED Qty		PCS	18
2	LED Type		Power LED	1W
3	LED chip type		Taiwan	Epistar
4	Single LED brightness		lm	100-110
5	Luminous Flux	Pure White	lm	1500±10%
6		Warm White	lm	1400±10%
7		Cool White	lm	1300±10%
8	Lumen of 3 meters away		LUX	220
9	Color Rendering Index(CRI)	Pure White	Ra	Ra≥70
10		Warm White	Ra	Ra≥60
11		Cool White	Ra	Ra≥60
12	Beam Angle		°	15	25	30	45	60
13	Lighting Height		m	25	20	18	15	10
14	Luminous Efficiency		Lm/W	80
15	Replace incandescent/halogen lamp		W	130
16	Color Temperature		K	3000-3500/6000-7000/8000-10000
EnvironmenntialRange
1	Working temperature		°C	-10~+50
2	Storage temperature		°C	-10~+60
3	Working Life		H	>30000
4	IP grade		ip	IP65
5	Dimension		mm	1028×78×138
6	White box pack dimension		mm	1080×130×140
7	Weight per unit		Kg/pcs	3.5
8	Weight/pack		Kg/pcs	4.2
9	Carton Dimension		mm	1090×270×290
10	Qty/Carton		carton	4PCS

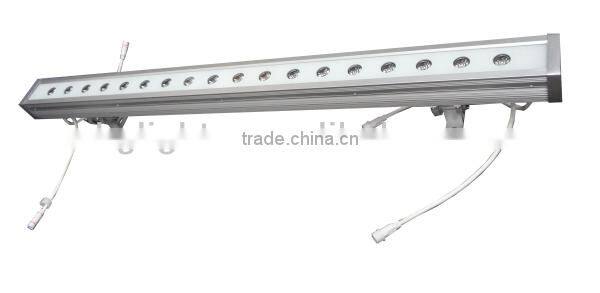

Product views:

TOP VIEW	FRONT VIEW

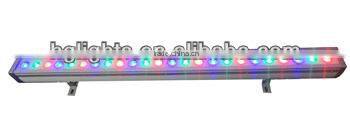

LIGHTING	BACK VIEW

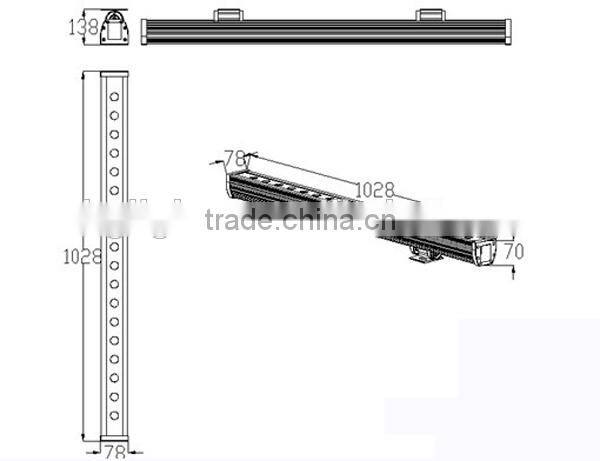

LED DISPLAYER	DIMENSION DIAGRAM

COLOR:

Single color or RGB

(1) Single color: White(pure white, warm white, cool white), Red, Green, Blue, Yellow.

(2) RGB :DMX512 control

1. Instruction:

Press A to change 9 different funtions from 1-9 repeatly .The first letter in the LED display is for the current function(refer to form 2).Press B to write DMX address ,adjust speed and brightness.The last two numbers are display for speed and brightness

1.LED display and function

NO.	Display	Function
1	001	Write DMX address for eight channels mode.(It is not available for RGB 3 channels mode.)
2	0.01	Write DMX address for RGB 3 channels (0.01-5.12).For example,0.01 - 0.04 - 0.07……
3	C00	colorful jump,Speed can be adjusted from 1-99
4	P00	colorful gradients,press B button to adjust speed from 1-99.
5	E00	Mixed Colorful change, press B button to adjust speed from 1-99.
6	R25	Red light,dark to bright from 00-25,press B button to adjust.
7	G25	Green light,dark to bright from 00-25,press B button to adjust.
8	B25	Blue light,dark to bright from 00-25,press B button to adjust.

All wall washer in RGB has to be connected by a DMX512 controller,which can be with 20-24 pcs wall washers and cable has to be less than 50 meters.If more than 20 pcs or 50 meters,a amplifier is required and it can with 20 pcs & less 50 meters cable.The maximum connected is 170 pcs for a DMX512 controller.

Light distribution pattern

Light distribution	Illuminance

Connection diagram:

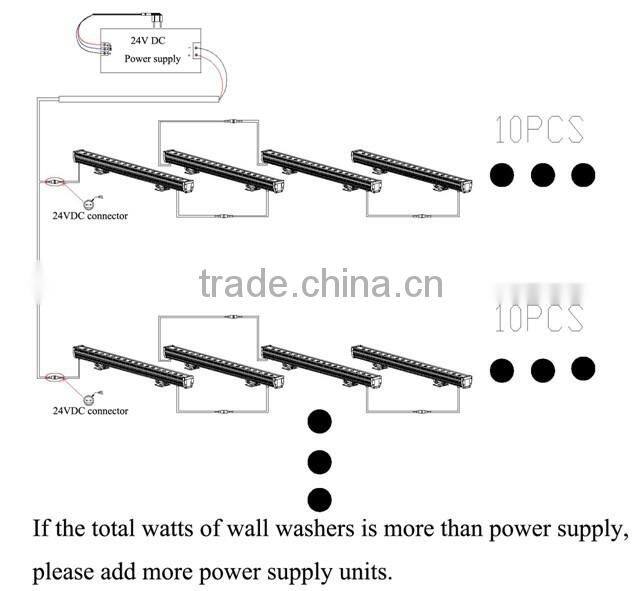

1) Single color wall washers

Attention:

Please use DC 24V power supply unit,which should be 1.2 X total power of wall washer,10pcs is maximum as a group.More group,more power supply units..Input female connector as below:

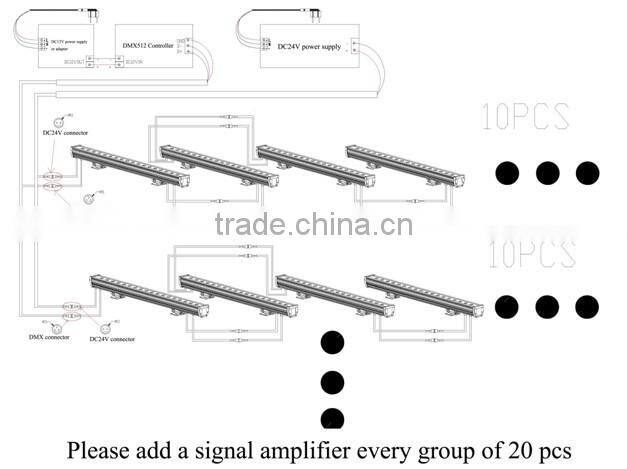

2)RGB (DMX512)

Attention:

1.Please use DC 24V power supply unit,which should be 1.2 X total power of wall washer,10pcs is maximum as a group.More group,more power supply units..Input female connector as below:

2.DMX controller can be connected by 20pcs,and cablei is less than 50 meter.If more,please use a signal amplifier for every 20 pcs.170 pcs is maximum for a DMX controller.Connector as below:

1) 2)

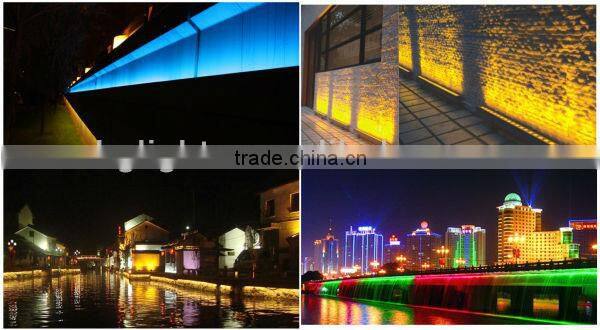

Application:
