Electric Mini Crane Hoist Crane 300kg
1. Brief Introduction:

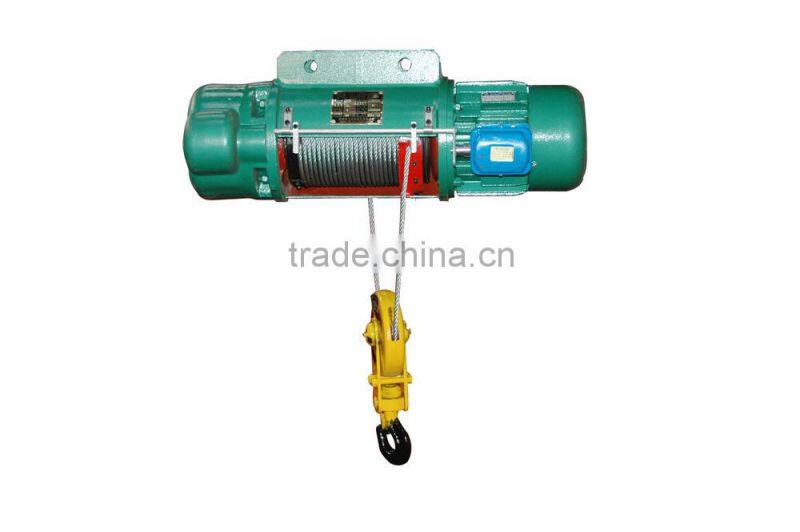

Electric Mini Crane Hoist
CD1, MD1 rope electric hoist is made up by 3 parts: Hoisting mechanism, operating mechanism and
electrical control devices. MD1 electric wire rope hoist is based on CD1, which changes hoisting mechanism to dual stator winding induction generator. It has 2 types’ speeds: normal speed and slow speed. It is different
with CD1 rope electric hoist merely in hoisting mechanism and electrical control devices.
2. Features:
Electric Mini Crane Hoist
Compact structure, light weight, small size, easy to operate, easy to maintain, and other characteristics, high mechanicak strength, toughness, safety, simple to use, durable and so on which can be installed separately on the overhead beams or in electric or manual installation and equipment of single girder, double grider, suspended on arm, gantry crane.
3. Parameters:
Electric Mini Crane Hoist
Capacity(t) |
0.5 |
1 |
2 |
3 |
5 |
10 |
16 |
20 |
||||||
Lifting height(m) |
6,9,12,18,24,30 |
|||||||||||||
Working duty |
M3 |
|||||||||||||
Control way |
Pendant control or Remote control |
|||||||||||||
Power source |
380V 50Hz 3~phase |
|||||||||||||
T-steel type |
16-28b |
20a-32c |
25a-63c |
45a-63c |
||||||||||
|
Lifting mechanism | ||||||||||||||
Hoist model |
CD1/,MD1 |
|||||||||||||
Wire rope |
Diameter |
4.8 |
7.4 |
11 |
13 |
15 |
15 |
17.5 |
20 |
|||||
|
Structure form |
D-6×37+1 |
|||||||||||||
|
Lifting speed (m/min) |
Single |
8 |
7 |
3.5 |
||||||||||
Double |
0.8/8 |
0.7/7 |
0.35/3.5 |
|||||||||||
|
Motor power(kw) |
Single |
0.8 |
1.5 |
3 |
4.5 |
7.5 |
13 |
13 |
18.5 |
|||||
Double |
0.2/0.8 |
0.2/1.5 |
0.4/3 |
0.4/4.5 |
0.8/7.5 |
1.5/13 |
1.5/13 |
3.0/18.5 |
||||||
|
Rotation speed |
1380 |
1400 |
||||||||||||
Traveling mechanism | ||||||||||||||
Traveling speed(m/min) |
20(30) |
|||||||||||||
Motor power(kw) |
0.2 |
0.2 |
0.4 |
0.4 |
0.8 |
2×0.8 |
2×0.8 |
4×0.8 |
||||||
Rotation speed(m/min) |
1380 |
|||||||||||||
Note: The technical just for reference, we can design according to customer's requirements.
4. Application:
Electric Mini Crane Hoist
It is widely used in factories, mines, harbours, warehouses, cargo stroage areas and shops, essential in raising working efficiency and improving working conditions.

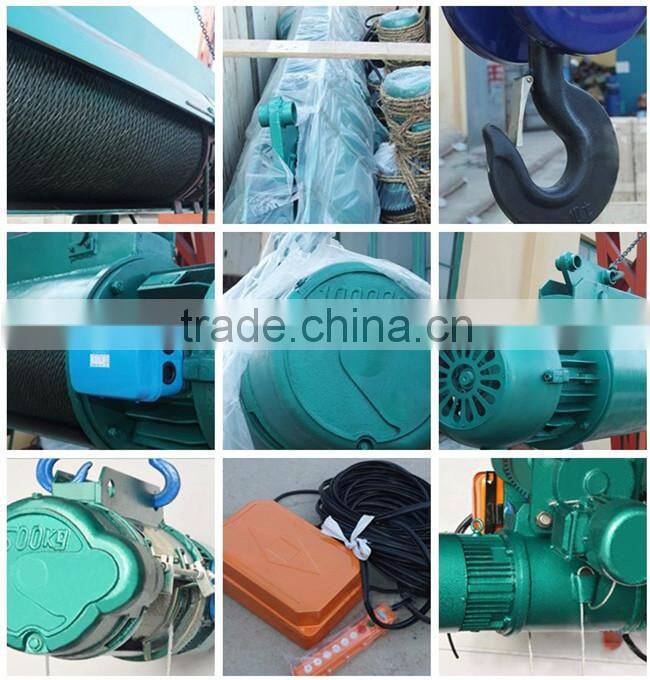

5. Detail:

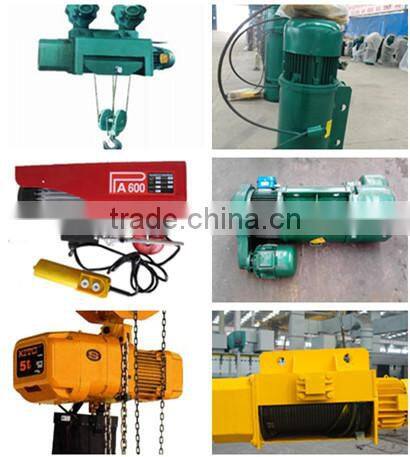

6. More Hoists:
There is always one type suitable for you!
According to meet various requirements from customers, we also produce gantry crane , electric flat car,
overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our website www.kltqz.en.china.cn for more details.
How to Order Our Products
a. Customers offer general drawing of the product.
b.Our designer will make a professional drawing according to your product layout.
c. After your confirming of the drawings, inform us the material and types you need.
d. We will do quote once get the confirmation of you.
Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different collors and types are available.
Packaging Detail: Electrical and electric hoist are packaged by high quality plywood crates for electric monorail hoist/small electric hoist.
Delivery Detail: Wihtin 15-35 days after receiving your deposit.
Customer Visit
Service we can provide
1. Payment terms is flexible
2. Design the crane according to your technical request
3. Delivery on time
4. Diversity products
1. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands, our
engineers can make suitable design for you.
2. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by
yourself, or you can let some third-partied to do the inspection for you.
3. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
Please never hesitate to contact me!
