driver inside & easy installation DMX 512 with digital board LED wall washer light
- 4000 Piece / Pieces per Month
- FOB Shenzhen
- Credit Card
Product Details
LED Light Source: | Epistar / Bridgelux | Warranty(Year): | 2 | Input Voltage(V): | 24V DC / 85~265V AC |
Lamp Power(W): | 36 | Lamp Luminous Flux(lm): | 2500 | Lamp Luminous Efficiency(lm/w): | 80 |
Color Temperature(CCT): | Pure White | Working Temperature(℃): | 25, 45 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum | IP Rating: | IP65 | Certification: | CE, EMC, LVD |
Place of Origin: | Guangdong, China | Brand Name: | Heguang Lighting | Model Number: | HG-WW-36*3W |
Product Description
Specifications
1. DMX 512 control, external control2. 24V DC / 85~265V AC
3. IP65 waterproof
4. Aluminum + Tempered Glass
5. CE, RoHS, ERP
led outdoor wall washer rgb light DMX512
wall washer LED light DMX512 control aluminum body good heat dissipation
NEW !!! LED wall washer flash light 24V DC
Parameters:
Specification | Parameter | |
Model No. | HG-WW-18X1W | HG-WW-18X3W |
Input Voltage | DC24V / AC 85~265V | DC24V / AC 85~265V |
Input Frequence | 50/60 Hz | 50/60 Hz |
Power | 19±1W | 35±1.5W |
Luminous flux | White: 1300~1500lm(±10%) | White: 1700-1900lm(±10%) |
Color temperature | p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k | p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k |
Dimension | 1028×78×138mm | 1028×78×138mm |
Lighting Distance | 8-15m | 8-15m |
Constant driver | yes | yes |
IP rating | IP65 | IP65 |
Constant driver & overcurrent protection | yes | yes |
Packing | 4pcs in 1050x250x210 ctn N.G: 17.2KG | 4pcs in 1050x250x210 ctn N.G: 17.2KG |
Specification | Parameter | ||
Model No. | HG-WW-24X1W | HG-WW-36X1W | HG-WW-36X3W |
Input Voltage | DC24V (RGB) / AC 85~265V (single color) | DC24V (RGB) / AC 85~265V (single color) | DC24V (RGB) / AC 85~265V (single color) |
Input Frequence | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Power | 26±1 W | 38±1.5 W | 65±2 W |
Luminous flux | White: 1500-1700lm±10% | White: 2200-2600lm±10% | White: 3000-3400lm±10% |
Color temperature | p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k | p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k | p.w. 6000~7000k w.w.:3000-3500k c.w.8000~12000k |
Wave Length | R:620-630 G:515-525 B:460-470K/nm | R:620-630 G:515-525 B:460-470K/nm | R:620-630 G:515-525 B:460-470K/nm |
Dimension | 1028×90×128mm | 1028×90×128mm | 1028×90×128mm |
Lighting Distance | 8-15m | 8-15m | 8-15m |
Constant driver | yes | yes | yes |
IP rate(w/housing) | IP65 | IP65 | IP65 |
Constant driver & overcurrent protection | yes | yes | yes |
Packing | 4 pcs in 1050x250x210cm ctn N.G:17.28 kgs | 4 pcs in 1050x250x210cm ctn N.G:20.8 kgs | 4 pcs in 1050x250x210cm ctn N.G:20.8 kgs |
Advantages:
1. 80%~90% energy saving than incandescent lamp
2. No flickering, No RF interference ,No UV radiation
3. Lower consumption,good heat dissipation
4. Anti-corrosion
5. Body termerature less than 60 °C
6. Superbright and low lumen attenuation
7. Easy installation, maintenance free
Trade Terms:
1.Price terms:FOB Shenzhen / EXW
2.Payment terms: T/T or western union. 30% deposit and 70% balance before shipment.
3.MOQ:1-10pcs
4.Warranty:24months.

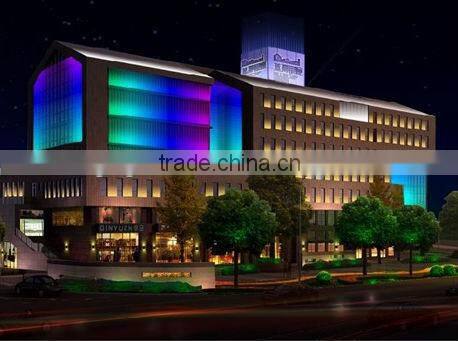

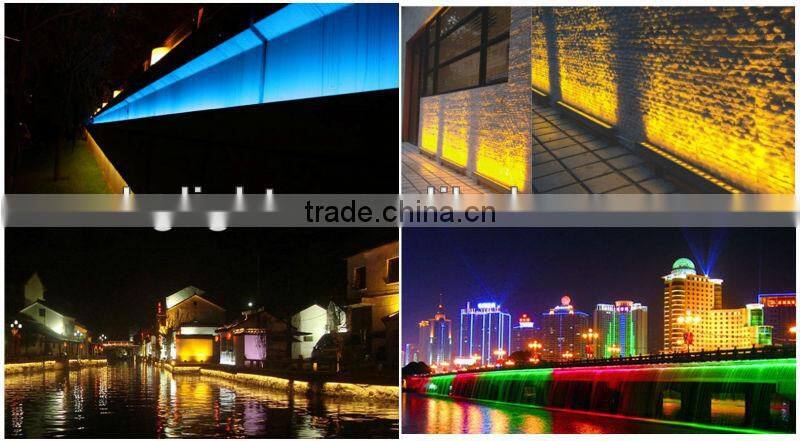

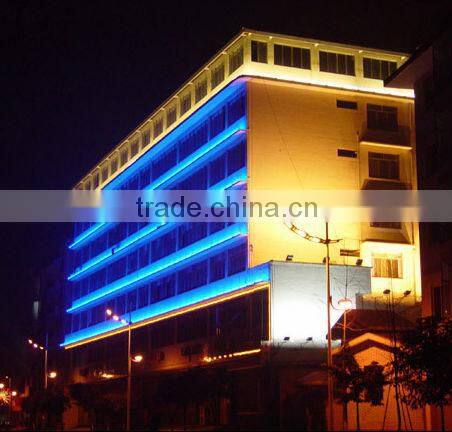

Applications:
1.Tunnel, Subway, Underground Lighting;
2.Gymnasium, Sports Stadium Lighting;
3.Building, Billboard Lighting;
4.Gas Station, Garage Lighting;
5.Park, Garden Lighting;
6.Workshop, Factory Lighting;
7.Warehouse, Storage Lighting;
8.Yard, Square Lighting;
9.Road,Highway Lighting;
10.Station,Dock Lighting etc
led wall washer IP 65 used outdoor
welcome your any enquiry!
Skype: hglighting21
Contact person: Zoe Luo
