Home > Products > Wall Washer > 24V DC 100cm led bar light rgb 36w led wall washer

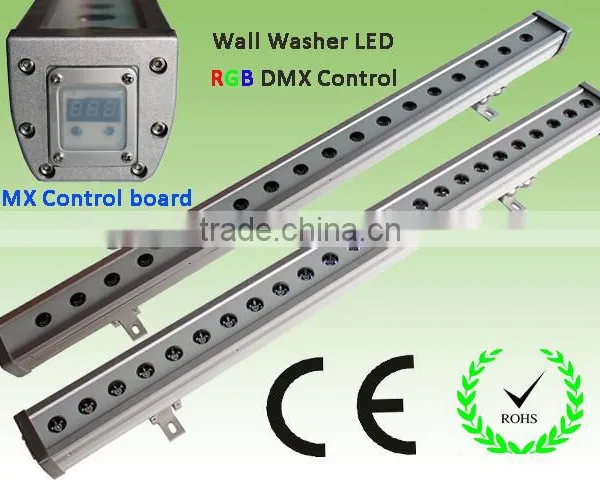

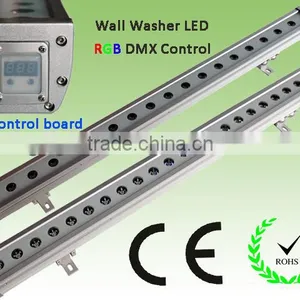

24V DC 100cm led bar light rgb 36w led wall washer
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
LED Light Source: | Power LED | Warranty(Year): | 2 | Input Voltage(V): | 24V DC |
Lamp Power(W): | 18 | Lamp Luminous Flux(lm): | 1500 | Lamp Luminous Efficiency(lm/w): | 80 |
Color Temperature(CCT): | Pure White | Working Temperature(℃): | -10, 50 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum | IP Rating: | IP65 | Certification: | CE |
Place of Origin: | Guangdong, China | Brand Name: | Heguang | Model Number: | HG-WW-18X1W |
Product Description
24V DC 100cm led bar light rgb 36w led wall washer
Feature:
1. LED wall washer series is linear type design,for symmetrical lighting.Fluent RGB patterns can be lighted up high buildings or as a decoration for wall both indoor and outdoor.
2. The main body is thickened type aluminum with temoered glass cover.Sealed by silicone ring,then fixed by screws. Surface is anodic oxidation finish (silvery grey) which make the light can work in outdoor (rainy and multiple weather..And it is easy to install.
3. High power LED as light source,with chip from Epistar,Epileds and Bridelux
4. Constant driver to make sure LED light working stably,with LED display and buttons to control RGB color
5.Voltage:DC 24V, Frequency: 50/60HZ
6. Color: RGB,or single color – white, red, green, blue, yellow
7.Beam angle: 15°/30°/45°/60°
8. Life span 50000 hours
9. Over current protection
Models list:
Item No. | Color | Description |
HG-WW-18×1W | RGB,R/G/B/W/Y | 18 pcs * 1W LED,19±1 W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512 ,IP65 |
HG-WW-18×3W | R/G/B/W/Y | 18 pcs * 3W LED,35±1.5 W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512,IP65 |
HG-WW-24×1W | RGB,R/G/B/W/Y | 24 pcs * 1W LED,26±1 W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512,IP65 |
HG-WW-36×1W | RGB,R/G/B/W/Y | 36 pcs * 1W LED,38±1.5 W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512,IP65 |
HG-WW-36×3W | R/G/B/W/Y | 36 pcs * 3W LED,65±2W ,Beam angle:15°/25°/30°/45°/60°,24V DC,DMX512,IP65 |
Description:
Electrical Characteristics | ||||||||
NO | Description | Unit | Parameter | |||||
1 | Input voltage | V | DC24 | |||||
2 | LED working voltage | V | 18-20 | |||||
3 | LED output current | mA | 900 | |||||
4 | Frequency | HZ | 50/60 | |||||
5 | POWER | W | 19±1 | |||||
6 | Efficiency | % | 85 | |||||
7 | Connection wire | Black wire | DC- | |||||
8 |
| Red wire | DC+ | |||||
Photometric Characteristics | ||||||||
1 | LED Qty | PCS | 18 | |||||
2 | LED Type | Power LED | 1W | |||||
3 | LED chip type | Taiwan | Epistar | |||||
4 | Single LED brightness | lm | 100-110 | |||||
5 | Luminous Flux | Pure White | lm | 1500±10% | ||||
6 | Warm White | lm | 1400±10% | |||||
7 | Cool White | lm | 1300±10% | |||||
8 | Lumen of 3 meters away | LUX | 220 | |||||
9 | Color Rendering Index(CRI) | Pure White | Ra | Ra≥70 | ||||
10 | Warm White | Ra | Ra≥60 | |||||
11 | Cool White | Ra | Ra≥60 | |||||
12 | Beam Angle | ° | 15 | 25 | 30 | 45 | 60 | |
13 | Lighting Height | m | 25 | 20 | 18 | 15 | 10 | |
14 | Luminous Efficiency | Lm/W | 80 | |||||
15 | Replace incandescent/halogen lamp | W | 130 | |||||
16 | Color Temperature | K | 3000-3500/6000-7000/8000-10000 | |||||
EnvironmenntialRange | ||||||||
1 | Working temperature | °C | -10~+50 | |||||
2 | Storage temperature | °C | -10~+60 | |||||
3 | Working Life | H | >30000 | |||||
4 | IP grade | ip | IP65 | |||||
5 | Dimension | mm | 1028×78×138 | |||||
6 | White box pack dimension | mm | 1080×130×140 | |||||
7 | Weight per unit | Kg/pcs | 3.5 | |||||
8 | Weight/pack | Kg/pcs | 4.2 | |||||
9 | Carton Dimension | mm | 1090×270×290 | |||||
10 | Qty/Carton | carton | 4PCS |
Product views:
TOP VIEW | FRONT VIEW |
LIGHTING | BACK VIEW |

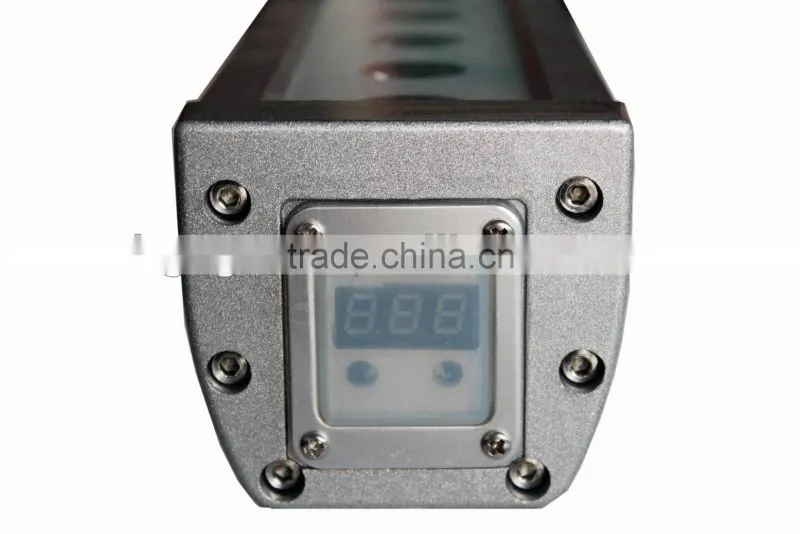

LED DISPLAYER | DIMENSION DIAGRAM |
COLOR:
Single color or RGB
(1) Single color: White(pure white, warm white, cool white), Red, Green, Blue, Yellow.
(2) RGB :DMX512 control
1. Instruction:
Press A to change 9 different funtions from 1-9 repeatly .The first letter in the LED display is for the current function(refer to form 2).Press B to write DMX address ,adjust speed and brightness.The last two numbers are display for speed and brightness
1.LED display and function
NO. | Display | Function |
1 | 001 | Write DMX address for eight channels mode.(It is not available for RGB 3 channels mode.) |
2 | 0.01 | Write DMX address for RGB 3 channels (0.01-5.12).For example,0.01 - 0.04 - 0.07…… |
3 | C00 | colorful jump,Speed can be adjusted from 1-99 |
4 | P00 | colorful gradients,press B button to adjust speed from 1-99. |
5 | E00 | Mixed Colorful change, press B button to adjust speed from 1-99. |
6 | R25 | Red light,dark to bright from 00-25,press B button to adjust. |
7 | G25 | Green light,dark to bright from 00-25,press B button to adjust. |
8 | B25 | Blue light,dark to bright from 00-25,press B button to adjust. |
All wall washer in RGB has to be connected by a DMX512 controller,which can be with 20-24 pcs wall washers and cable has to be less than 50 meters.If more than 20 pcs or 50 meters,a amplifier is required and it can with 20 pcs & less 50 meters cable.The maximum connected is 170 pcs for a DMX512 controller.

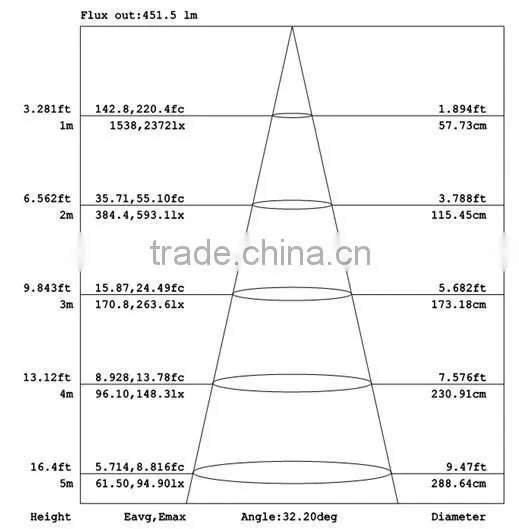

Light distribution pattern
Light distribution | Illuminance |
|
Connection diagram:

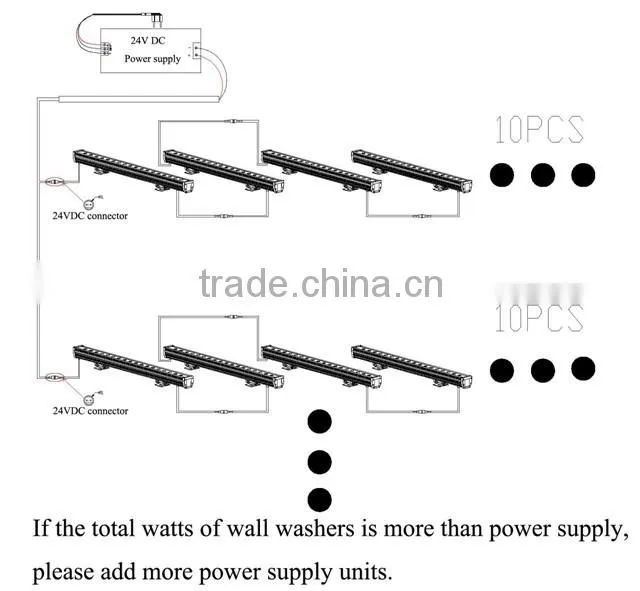

1) Single color wall washers
Attention:
Please use DC 24V power supply unit,which should be 1.2 X total power of wall washer,10pcs is maximum as a group.More group,more power supply units..Input female connector as below:

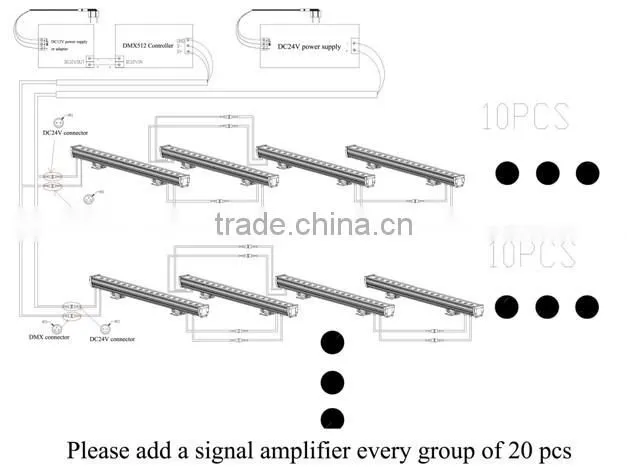

2)RGB (DMX512)
Attention:
1.Please use DC 24V power supply unit,which should be 1.2 X total power of wall washer,10pcs is maximum as a group.More group,more power supply units..Input female connector as below:
2.DMX controller can be connected by 20pcs,and cablei is less than 50 meter.If more,please use a signal amplifier for every 20 pcs.170 pcs is maximum for a DMX controller.Connector as below:
1) 2)

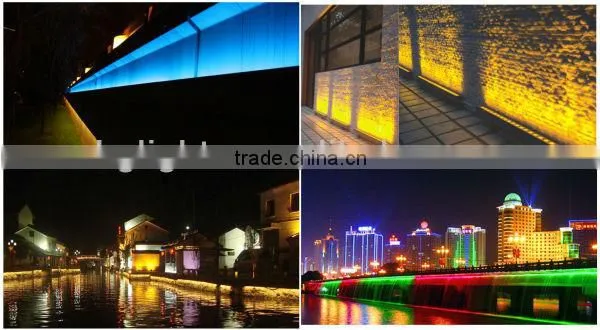

Application:
