HD Video Long Range RF Transmitter and Receiver

Name: HD Video Long Range RF Transmitter and Receiver
Brand: Safe Duard
SKU: 123772173
Availability: InStock

HD Video Long Range RF Transmitter and Receiver thumbnail-1

HD Video Long Range RF Transmitter and Receiver thumbnail-2

HD Video Long Range RF Transmitter and Receiver thumbnail-3

HD Video Long Range RF Transmitter and Receiver photo-1

HD Video Long Range RF Transmitter and Receiver photo-2

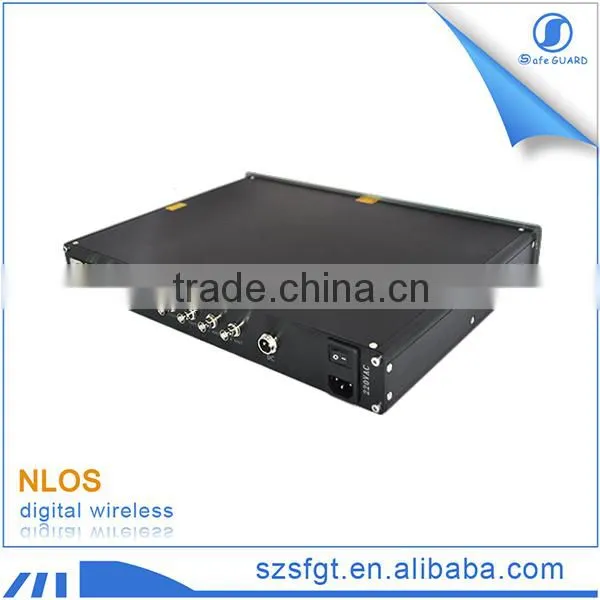

HD Video Long Range RF Transmitter and Receiver photo-3

US$ 1,500 - 1,550 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Safe Duard

Model Number:

SG-HR50

Contact Supplier Request Quote Chat Now

Shenzhen Safe Guard Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Safe Duard

Model Number SG-HR50

Product Feature

Product Description for HD Video Long Range RF Transmitter and Receiver

Model: SG-HR50

1) 1080P/1080I HD and stability;

2) Two-way audio transmission (L, R);

3) High security with Data Encryption Algorithm.

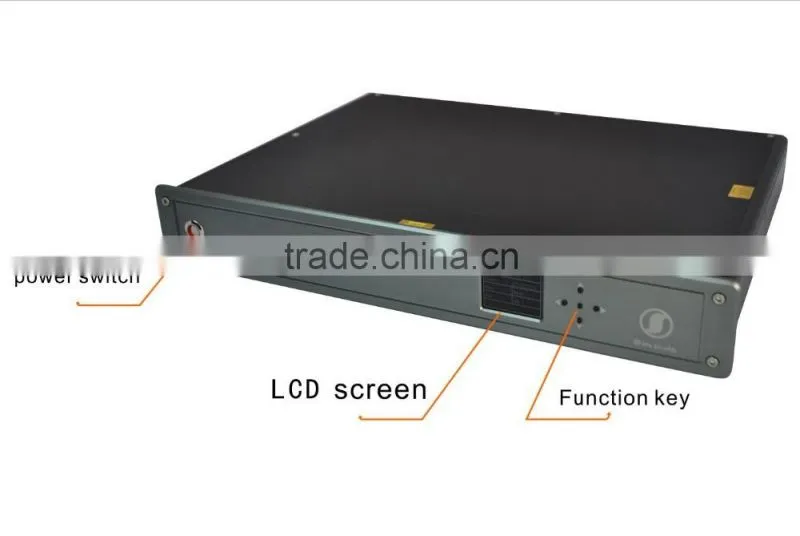

Detailed Images

Product Parameters


Voltage	AC220V±20V, DC14V~DC16V
Current	≤1.A / DC12.5V
Receiving sensitivity	≤-102dBm /4MHz,
Receiving sensitivity	≤-95dBm /8MHz
BER	BER≤1×10-4
Frequency input range	300MHz~--470MHz
Output interface	N(type),Dual antenna diversity reception technology
RF bandwidth	4/8MHz(adjustable)
Modulation	COFDM
Constellation	QPSK,16QAM,64QAM
FEC	1/2, 2/3, 3/4, 5/6, 7/8
Carrier	2K
Guard Interval	1/4, 1/8, 1/16, 1/32
Video formats and amplitude	PAL/NTSC, 1Vp-p/75Ω
Video compression	H.264/MPEG-2(autoadaptation)
Video decompression latency	Decompression delay is 300mS,The end-to-end compression decompression is 800mS
Video output interface	Composite videoRCA,HDMI,ASI,HD-SDI (alternative)
Interrupt recovery	Better than 2S
Video channel characteristic	Differential gain DG≤1.5%
Video channel characteristic	Differential phase DP≤1°
System distortion degree
Decryption mode	AES
Audio output	Left and right channel and stereo
Dimension	44034065mm(1U chassis)
Weight	3.5Kg

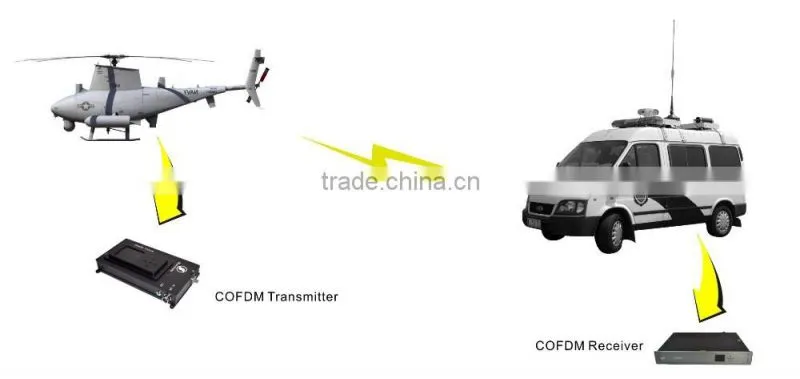

Product Application

Our Service

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifelong maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufactory in wireless microwave transmission area for over 17 years, we are the source.

Welcome to inquire HD Video Long Range RF Transmitter and Receiver
