PELICAN suitcase features:
1. Watertight, crushproof, and dust proof
2. Easy open Double Throw latches
3. Open cell core with solid wall design - strong, light weight
4. Automatic Pressure Equalization Valve
5. Comfortable rubber over-molded handle
6. Stainless steel hardware and padlock protectors
7. 2 level Pick N Pluck™ with convoluted lid foam
8. Personalized nameplate service available

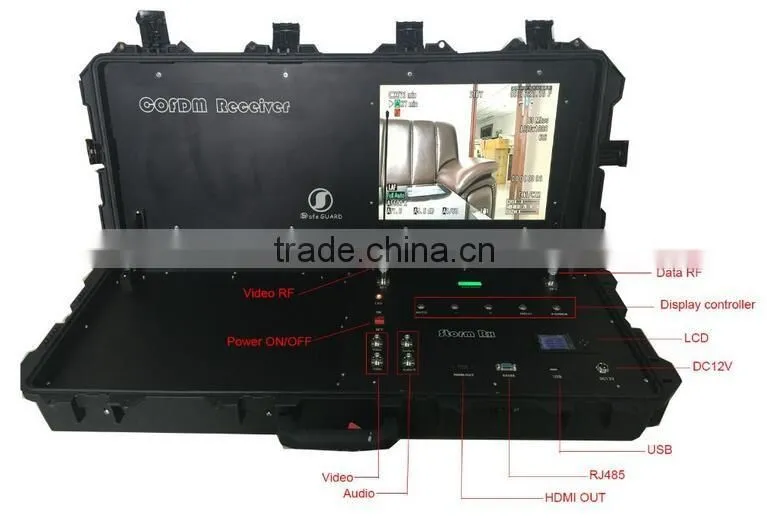

Receiver features:
1. COFDM modulation
2. MPEG-4/H.264 video compression
3. Full hd resolution,very sharp image
4. Modular design and highly integrated
5. Support 1 channel av signals receiving at the same time.
6. Dual aerial designed for better signal receive
7. Built in with DVR.Standard 17inch Samsung LCD screen
8. The left space for PC place easy to carry together with the RX
9. Internal with 80G / 1TB SSD memory
10. Can control operation system by using external mouse.
11. Work well under fast moving signal receiving and support NLOS trasnsmission
12. If add ethernet output that can support remote control,dynamic IP and can realize IE browsing.
13. Extra USB insert easy to copy the video.
Specification of Wireless Digital Receiver
| Frequency | 138-4400MHz (option),100MHz space max |
| RF bandwidth | 2/2.5/4/8MHz(adjustable) |
| Memory | embedded DVR, standard 80G SSD |
| LCD monitor | 17inch Samsung LCD screen |
| RF Level Input | -105dBm~-20dBm |
| RF Interface | N(F) |
| AV output | BNC |
| Data output | RS485/RS232/RS422 |
| HD output | HDMI/HD-SDI |
| USB output | For external memory use |
| Modulation | COFDM |
| Power supply | AC220V / DC12V |
| Constellation | QPSK,16QAM, |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Video format | 1 line PAL/NTSC video signal |
| Video Decoding | ISO/IEC13818-2 MPEG-4MP@ML |
| Resolution | 1920*1080 @60i/59i |
| Audio Output | stereo left and right channel |
| Data encryption | AES 128bits |
| Work environment | -30~70° C |
| Built in Battery | 30000mA,support 48 hours continuously recording |
| Size | 927*355*152mm |
| Weiht | 23kg |
- One year free warranty;
- three months for free spare parts (Replacement parts will be charged after a year);
- 24-h technical guidance;
- One-stop ODM/OEM solution;
- We provide professional system design and construction;
- We have over 15 years experience in study, design and manufacturing in wireless microwave transmission area;
- We are the professional plant source,so we can provide you high quality in best price.
