8-10km Long range FM video audio transmitter
SG-F8000A
SG-F8000A is a long-distance monitoring equipment provided by our company with long experience, which has high quality and good price. Especially widely used in oilfield, harbor, coal mine area , constuction and other industries. It is very flexible in actual application, easy and quick in construction, what’s more, can combine with digital wireless, fiber terminal,etc. connect to all analogic input interface directly. Due to the limited bandwidth, we do not suggest to use more than 20 sets of this products in same control center.
Features:
1)Long range video transmitter, 5~8km in buildings;
2)More than 10 years industrial experience;
3)It has advantage of fine market and competitive price;
4)Analog AV signals.
Specification:
Transmitter System Indicators | |
Frequency |
1.0-1.5GHz (optional) |
RF Power |
8W |
Power Supply |
DC12V 1.1A |
Modulation |
FM |
Frequency stability |
0.0005%(standard) |
Impedance |
50Ω |
Phase Noise @10KHz |
-75dBc |
Bandwidth |
20MHz |
RF Interface |
N |
Work environment |
-30~70 |
Video Format |
PAL |
Video Input |
BNC |
Size |
290*190*110mm |
Weight |
3kg |
Receiver System Indicators | |
Frequency |
1.0-1.5GHz |
Impedance |
50Ω |
Video Output |
Analogic AV signal |
Voltage |
AC220V |
Current |
0.3A |
Interface |
BNC |
Temperature |
-30~50°C |
Humidity |
0.96% |
Weight |
2KG |
Size |
250*180*110mm |
Audio index | |
Audio Output |
600ΩBalance/ 0.5vImbalance |
De-emphasis |
75us/50us |
Frequency corresponding |
50Hz to 15KHz(+/-0.5dB) |
Carrier frequency |
6.5MHz |
AV Interface |
BNC |
Distortion |
3% |
FM Noise |
-50dB |
Video Index | |
Video Output |
75 Ω unbalanced, 1.0Volt P-P |
Differential gain |
5% |
Differential phase |
5 |
SNR |
55dB |
De-emphasis |
CCIR STANDARD PAL |
Packaging Details | |
|
Complete Set & Accessories |
1* Transmitter; 1* Receiver; 2* 15 dBi Antenna; 2* RF Cable. |
Style |
Paper carton |
Size |
Undetermined |
Overall Weight |
≥10kg |

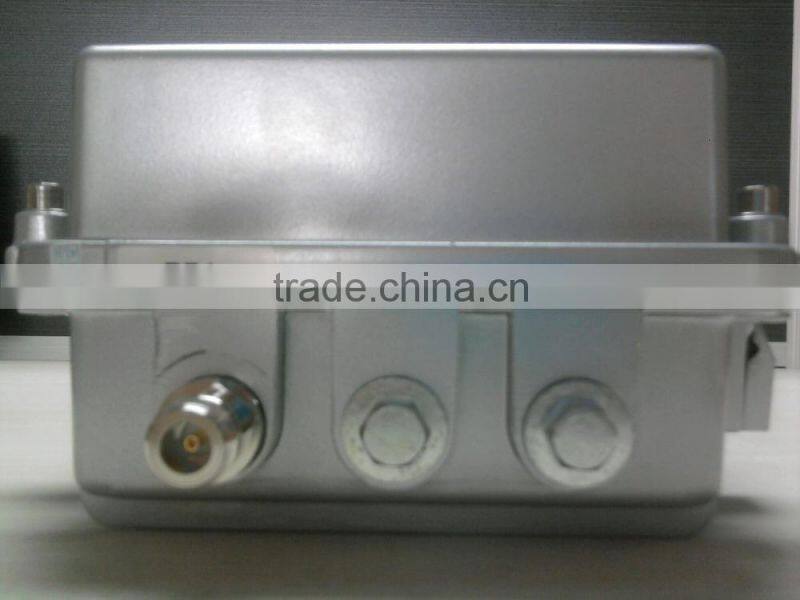

Overview:

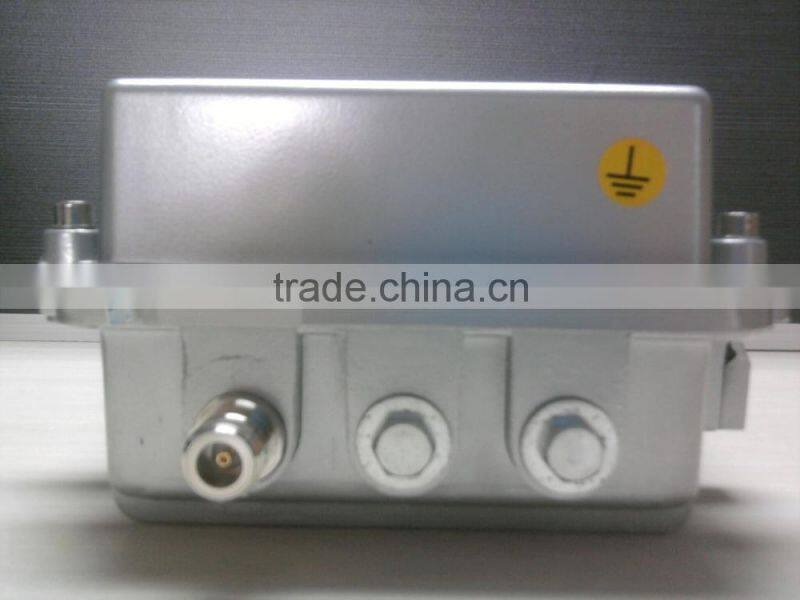

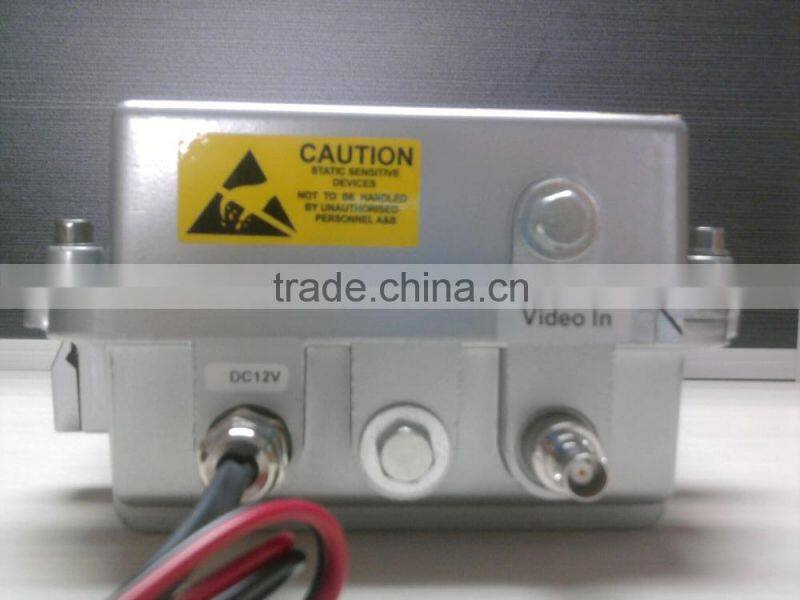

Tx interfaces:

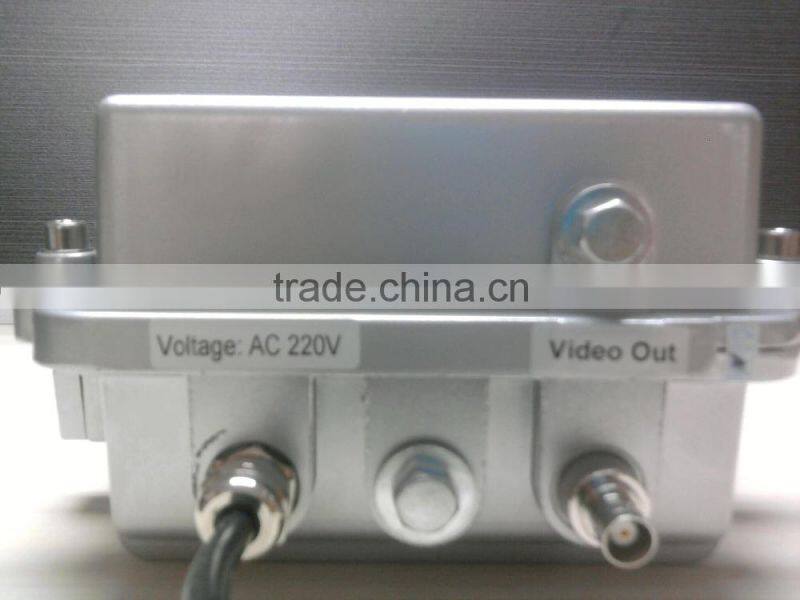

Receiver interfaces:

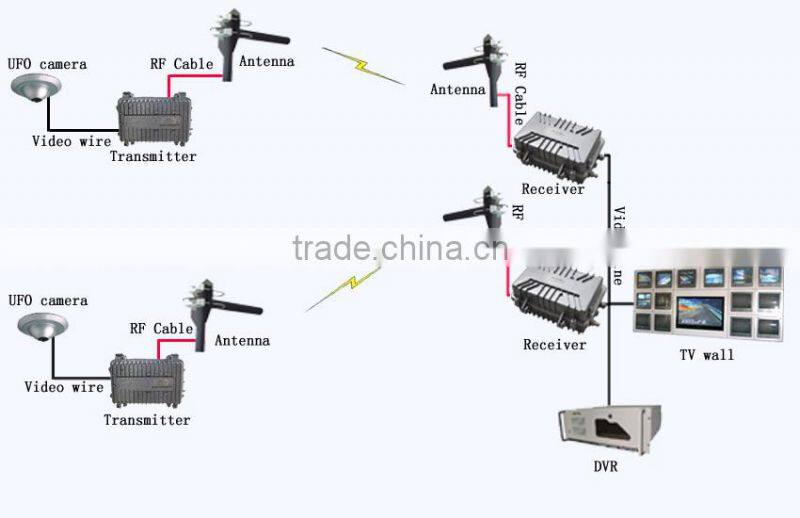

Installation Diagram:

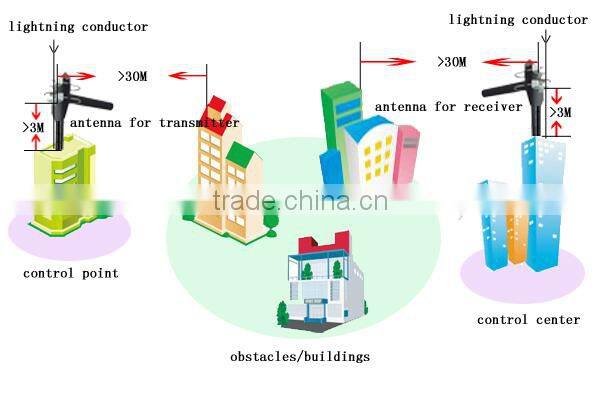

Antenna installation :
