IP 68 Recessed LED Underwater Light

Shenzhen Heguang Lighting Co., Ltd.
IP 68 Recessed LED Underwater Light thumbnail-1
IP 68 Recessed LED Underwater Light photo-1
US$ 26.35 - 38.55 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar, Bridgelux, Epileds
Input Voltage(V):
AC/ DC 12V
Lamp Power(W):
12
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar, Bridgelux, Epileds
Input Voltage(V) AC/ DC 12V
Lamp Power(W) 12
Lamp Luminous Flux(lm) 350±10%Lm
Lamp Luminous Efficiency(lm/w) 85
Color Temperature(CCT) Other, RGB
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 30000
Lamp Body Material Stainless Steel
IP Rating IP68
Certification CE, EMC, FCC, LVD, VDE
Place of Origin Guangdong, China
Brand Name Heguang Lighting
Model Number HG-P38U-9*1W/12*1W(Pool Light)



Product Description

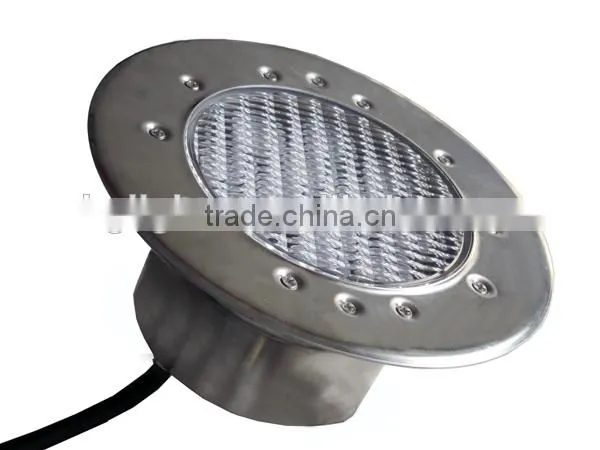

 IP 68 Recessed LED underwater light





Features :





*316 (V4A) stainless steel LED underwater light, unique

     heat-dissipation & waterproof design, high-grade and artistic, wide application.

* Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation

* IP68 structure waterproof

* RGB Synchronization with our patented remote control system

    (Patent No.: ZL 2012 20640518.8)

* high power 1w as light source, Epistar, Bridgelux, Epileds as led chip for options.

* Color: Red, Green, Blue, RGB, 14 kinds of color changing mode

   Single color – white, red, green, blue, yellow

* 5 kinds of RGB control method: Remote control, Wi-Fi Control, DMX Control,

                                                          Automatic control, External control (wire control)

* Constant driver to make sure LED light working stable, avoid any flashing and noisy

* Over-current protection

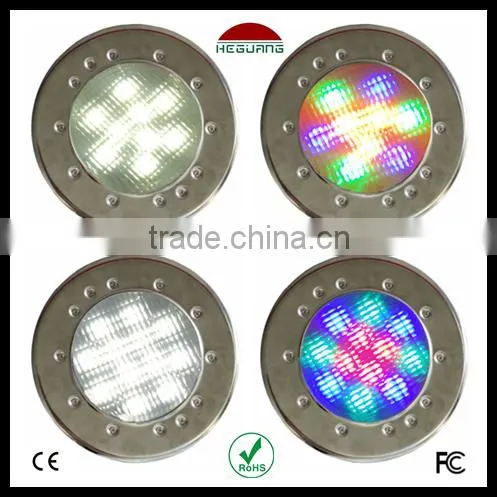

 product show:

IP 68 Recessed LED underwater lightIP 68 Recessed LED underwater lightIP 68 Recessed LED underwater lightIP 68 Recessed LED underwater light





Main Parameters:



Specification

Parameter

Model No.

HG-P38U-9*1W

 (Pool Light)

HG-P38U-12*1W

(Pool Light)

LED Qty.

9 pcs 1W High power

12 pcs 1W High power

Input Voltage

AC/DC 12V

AC/DC 12V

Input Frequency

50/60 Hz

50/60 Hz

Power

10±1 W(W/G/B/RGB)

6±1 W(red)

13±1 W(W/G/B/RGB)

8±1 W(red)

Luminous flux

600±10%Lm(P.W)

580±10%Lm(W.W)

550±10%Lm(C.W)

200±10%(R) / 400±10%(G)

80±10%(B) /260±10%(RGB)

780±10%Lm(P.W)

750±10%Lm(W.W)

700±10%Lm(C.W)

280±10%(R) / 520±10%(G)

120±10%(B) /350±10%(RGB)

Color temperature

p.w.6000~7000k

w.w.:3000-3500k

c.w.8000~10000k

p.w.6000~7000k

w.w.:3000-3500k

c.w.8000~10000k

Wave Length

R:620-630 K/nm

G:515-525 K/nm

B:460-470 K/nm

R:620-630 K/nm

G:515-525 K/nm

B:460-470 K/nm

Dimension

176×108 mm

176×108 mm

Working temperature

-20~50℃

-20~50℃

Storage Temperature

-20~50℃

-20~50℃

Base

wire

wire

Constant driver

yes

yes

IP rate(w/housing)

IP68

IP68

Constant driver &

over-current protection

yes

yes

Packing

20 pcs in 680x390x390mm ctn

N.G: 15 kg

20 pcs in 680x390x390mm ctn

N.G: 15 kg



Applications



Applications: garden pond, square, water column, flower-bed in villas, garden, rocky water-fall, outdoor fountain, etc.

 IP 68 Recessed LED underwater light

Packaging & Shipping

Packaging:

1 pc led pool light in a white box, 20 pcs in 68x39x39cm master carton N.W.: 15 kgs

it also can be customized based on the customers' requirements.

Shipping:

7-15 working days, it also depends on your order quantity.





Our Services

1.OEM or ODM------Our advanced production lines, precise equipment, strict quality control process

                                    and experienced engineer team are capable to fulfill the toughest OEM or ODM

                                    requirement from customers worldwide.

 2.M.O.Q.-------Generally, we don’t require M.O.Q. in order to help some clients to expand

                          their business & keep the ball rolling.

 3.Lead time------7-15 working days based on stock material and order quantity.

 4.Payment------T/T, Western Union or LC(at sight)

 5.Incoterms-------EX-Factory/work, FOB, CIF

 6.Warranty------All our products are covered by 24 months warranty from the date of purchase.

                We are not responsible for any damage caused by improper use/assembling or force majeure.





Company Information

SHENZHEN HEGUANG LIGHTING CO., LTD. is a sophisticated manufacturer which specializes in R&D

and production of LED Light ODM & OEM in fields of LED Swimming Pool Light and Underwater Light as well

as Fountain Light, Wall Washer, etc.

 IP 68 Recessed LED underwater light

 If you are interested in the  IP68 / 316 Stainless Steel /LED Underwater Light/Pool Light , please feel free to contact us.
