Hydraulic Grab Bucket
1. Brief Introduction

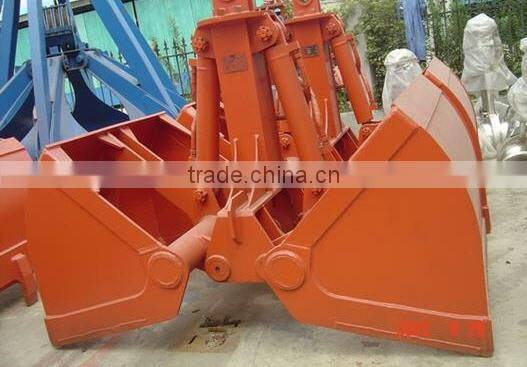

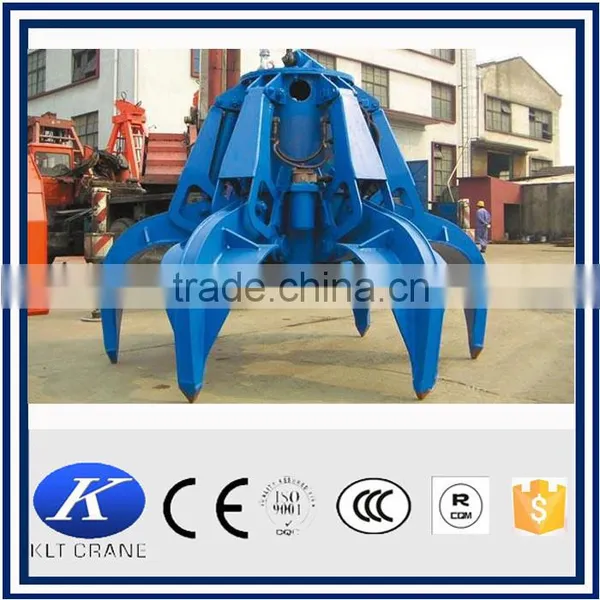

Hydraulic Grab Bucket
Grab bucket has no retractable structure, and is usually driven by ropes or connecting rod force. According to operating characteristics, it can be divided into single rope grab and twin rope grab which is in the most common.
2. Features

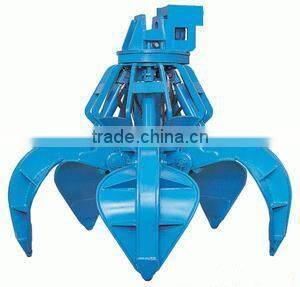

Hydraulic Grab Bucket
1). Suitable to grab sand, coal, grain, slag, scrap
2). through beam is shortened, high strength,light self weight
3). main shaft sleeve is of bearing steel, Pin shaft material is 40Cr
4). Clearance of two knife dege plate is very small, 0.3mm,good sealing, keep working site clean.
5). whole structure is strong andnot distortion, good sealing.
3.Advantages

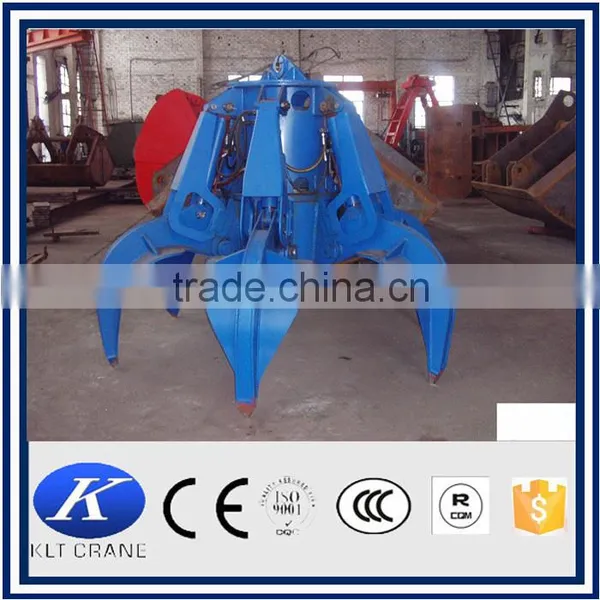

Hydraulic Grab Bucket
1) Reasonable structure
2) Smooth starting and stopping
3) Safe and reliable traveling
4) Low noise, commodious cabin and good view
5) Convenient maintenance, excellent exchangeability for parts and components
6) Electricity-saving
4. Parameters
Hydraulic Grab Bucket
| Model |
Volume (m3) |
Image and size(mm) |
Grab self weight(t) |
Motor power(kw) |
Close time(s) |
Operating pressure bar |
Related lifting weight(t) |
|||||
| A | B | C | D | E |
380v 50Hz |
440v 60Hz |
||||||
| DYJ12[2.0]6 | 2 | 2049 | 3242 | 3500 | 3278 | 1650 | 500 | 37 | 43 | 15 | 200 | 12 |
| DYJ16[2.5]6 | 2.5 | 2060 | 3300 | 3500 | 3298 | 1850 | 600 | 37 | 43 | 18 | 200 | 16 |
| DYJ20[3.2]6.5 | 3.2 | 2500 | 4280 | 3760 | 3200 | 1850 | 6500 | 37 | 43 | 18 | 200 | 20 |
| DYJ25[5]7.5 | 5 | 2840 | 4349 | 3850 | 3497 | 1950 | 7500 | 45 | 52 | 20 | 200 | 25 |
| DYJ32[5.5]8.5 | 5.5 | 3020 | 4807 | 4125 | 3597 | 1950 | 8500 | 45 | 52 | 20 | 200 | 32 |
| DYJ32[6]9.6 | 6 | 3150 | 5100 | 4200 | 3680 | 1950 | 9600 | 55 | 63 | 25 | 200 | 32 |
| DYJ40[7]10.5 | 7 | 3350 | 5320 | 4380 | 3760 | 1950 | 10500 | 55 | 63 | 25 | 200 | 40 |

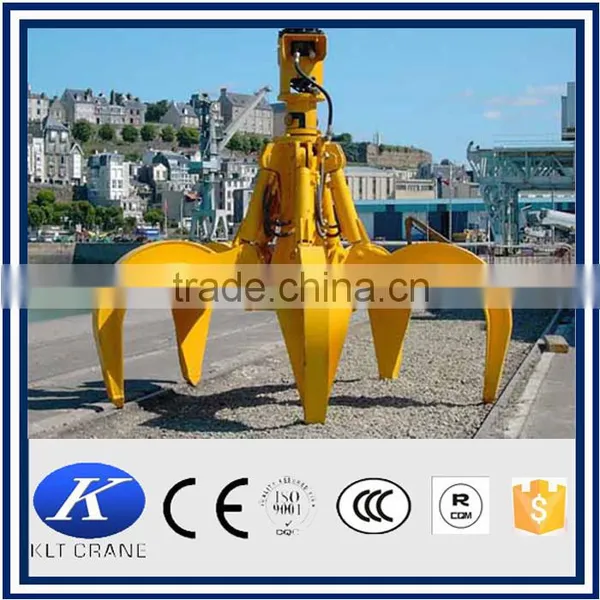

Hydraulic grab bucket is widely used in ship, port, railway station, factory, mine and material stock, station, coal
yard to conduct lifting bulk cargo such as coal, ore powder, fertilizer and sand.
There is always one type suitable for you!
According to meet various requirements from customers, we also produce gantry crane, electric flat car,
overhead/bridge crane, jib crane, electric hoist ect. If you have any interests in those products, please contact me
or scan our website www.kltqz.en.china.cn for more details.

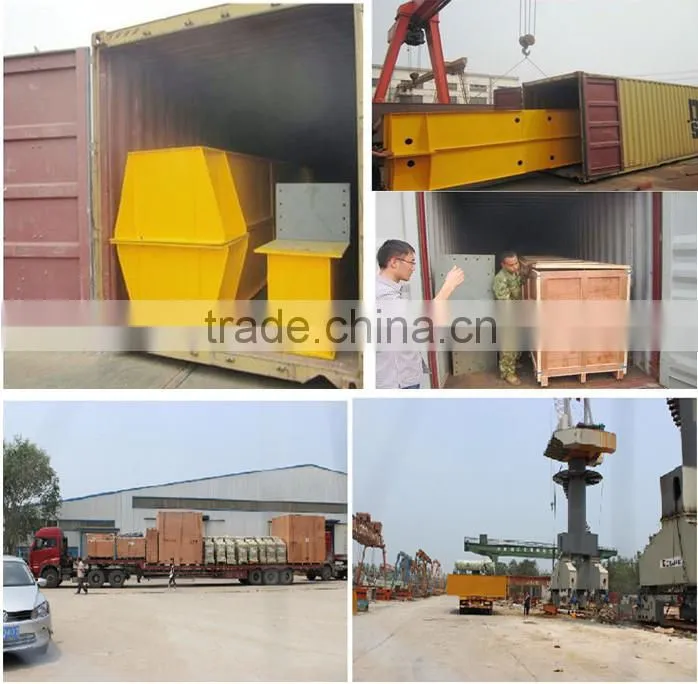

Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail: Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
Customer Visit
Service we can provide
1. Payment terms is flexible
2. Design the crane according to your technical request
3. Delivery on time
4. Diversity products
1. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands, our
engineers can make suitable design for you.
2. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by
yourself, or you can let some third-partied to do the inspection for you.
3. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
Please never hesitate to contact me!
