Used Mini Balance Jib Crane for Sale
1. Brief Introduction:

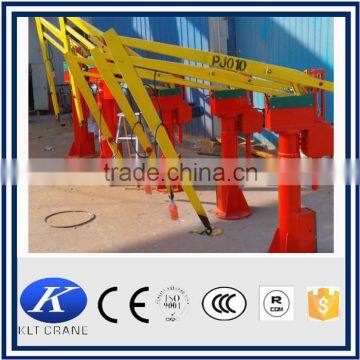

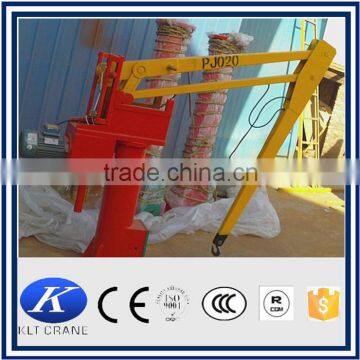

Balance Jib Crane
PJ type balance crane is an ideal small and medium-sized mechanical lifting equipment. It runs four bar linkage
mechanism principle, using manual and motorized simple cooperate to form a composite movement tocarry load,
the load at any time according to the requirement of stable to stay in operation interval to any position. PJ series of
hanging balance short column structure ( referred to as the dwarf type ) and a high column structure ( referred to as the high type ) two series of products, from the weight of 50kg to 2000kg.
2. Features:
Balance Jib Crane
1. Small volume,light weight
2. It has a good performance ,safety and reliable
3. Convenient and easy to operate and maintain.
3. Advantages:
Balance Jib Crane
PJ type balance crane operation is very simple, with a button actuating motor, so that the hanging vertical lifting;
manual push and pull the hanging, hanging or direct stalls, the horizontal moving, or around the post and rotated to
the required lifting working position.
4. Parameters:
Balanca Jib Crane
| model | PJ005 | PJ010 | PJ020 | PJ030 | PJ040 | PJ050 | PJ060 | |
| max. lifting capacity | kg | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
| max. lifting height | mm | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 | 2500 |
| min. lifting height | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| max. radius of gyration | mm | 2500 | 2500 | 2500 | 2500 | 2500 | 3200 | 3200 |
| min. radius of gyration | mm | 580 | 580 | 770 | 770 | 770 | 1000 | 1000 |
| rotation angle | degree | 345 | 345 | 345 | 345 | 345 | 345 | 345 |
| lifting speed | m/min | 6.14 | 6.14 | 5.44 | 5.52 | 5.56 | 5.08 | 5.08 |
Note: The technical just for reference, we can design according to customer's requirements.
It is widely used in machine tools, parts and components. At present in the automotive, tractor, diesel engine,agricultural vehicles, machine tool equipment, machinery manufacturing and other industries are widely used.
There is always one type suitable for you!
According to meet various requirements from customers, we also produce gantry crane, electric flat car,
overhead/bridge crane, jib crane, electric hoist ect. If you have any interests in those products, please contact me
or scan our website www.kltqz.en.china.cn for more details.
How to Order Our Products
a. Customers offer general drawing of the product.
b.Our designer will make a professional drawing according to your product layout.
c. After your confirming of the drawings, inform us the material and types you need.
d. We will do quote once get the confirmation of you.
Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different collors and types are available.
Packaging Detail: Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.
Delivery Detail: Within 15-35 working days after receiving your deposit
Customer Visit
Service we can provide
1. Payment terms is flexible
2. Design the crane according to your technical request
3. Delivery on time
4. Diversity products
1. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands,
our engineers can make suitable design for you.
2. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by
yourself, or you can let some third-partied to do the inspection for you.
3. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
Please never hesitate to contact me!
