600kg Balance Crane for Sale

600kg Balance Crane for Sale thumbnail-1
600kg Balance Crane for Sale thumbnail-2
600kg Balance Crane for Sale thumbnail-3
600kg Balance Crane for Sale thumbnail-4
600kg Balance Crane for Sale photo-1
600kg Balance Crane for Sale photo-2
600kg Balance Crane for Sale photo-3
600kg Balance Crane for Sale photo-4
US$ 800 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
warehouse, wharf, station, plant
Rated Loading Capacity:
600kg
Contact Supplier Request Quote Chat Now
Xinxiang Kailite Crane Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai Lianyungang port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application warehouse, wharf, station, plant
Rated Loading Capacity 600kg
Rated Lifting Moment 1-10kn
Max. Lifting Load 600kg
Max. Lifting Height 2500mm
Span 3300mm
Place of Origin Henan, China
Brand Name KLT CRANE
Model Number PJ
Certification ISO BV ISO
Warranty 1 year
After-sales Service Provided Overseas third-party support available

600kg balance crane for sale

600kg Balance Crane for Sale

 Product Description of Balance Crane

       1. Brief Introduction:

             Balance crane is an ideal small and medium-sized mechanical lifting equipment. It runs four bar linkage

mechanism principle, using manual and motorized simple cooperate to form a composite movement to carry

load, the load at any time according to the requirement of stable to stay in operation interval to any position.

        2. Features:

         Balance Crane

    1. Small volume,light weight
    2. It has a good performance ,safety and reliable
    3. Convenient and easy to operate and maintain.

      3. Advantages:

         Balance Crane

        Balance crane operation is very simple, with a button actuating motor, so that the hanging vertical lifting;

manual push and pull the hanging, hanging or direct stalls, the horizontal moving, or around the post and rotated to

the required lifting working position.

        4. Prameters:

         Balance Crane

Type PJ005 PJ010 PJ020 PJ030 PJ040 PJ050 PJ060 PJ100
Max.lifting
weight(kg) 		50 100 200 300 400 500 600 1000
Max.lifting
height(mm) 		2000 2000 2000 2000 2000 2500 2500 2600
Initial
altitude(mm) 		500 500 500 500 500 500 500 600
Lifting
range(mm) 		1500 1500 1500 1500 1500 200 2000 2000
Max.rotation
radius(mm) 		2500 2500 2500 2500 2500 3200 3200 3200
Min.rotation
radius(mm) 		580 580 770 770 770 1000 1000 1000
Level
luffing(mm) 		1920 1920 1730 1730 1730 2200 2200 2200
Rotation
angle(degree) 		345 345 345 345 345 345 345 345
Lifting
speed(m/min) 		6.14 6.14 5.44 5.52 5.56 5.08 5.08 5.08



           Note: The technical just for reference, we can design according to customer's requirements.

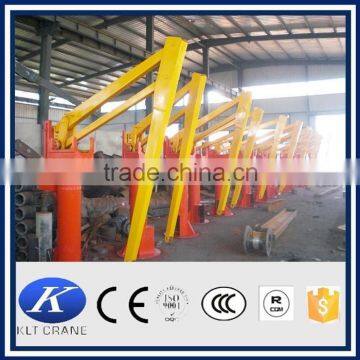

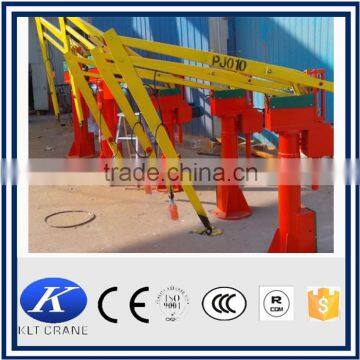

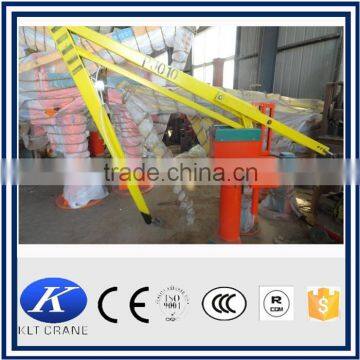

 Product Display of Balance Crane

600kg balance crane for sale


 Application of Balance Crane

        Balance crane is widely used in machine tools, parts and components; the assembly and repair process of

hoisting transport; production line of articulation, converting station; foundry core, closing the box; heat treatment

furnace, such as furnace workshop.

600kg balance crane for sale

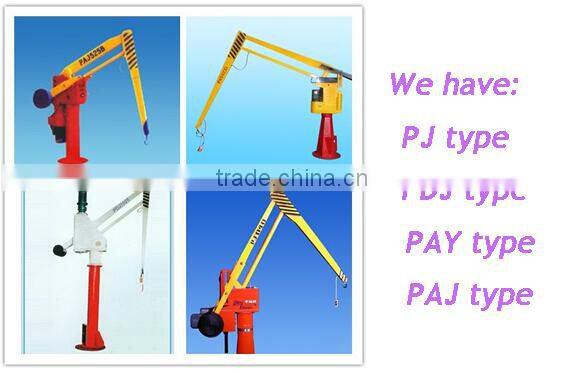

 Other Types of Balance Crane

 Related Products

         According to meet various requirements from customers, we also produce gantry crane , electric flat car ,

overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contact me

or scan our website www.kltqz.en.china.cn for more details.

 Packing & Shipping



Our delivery is Efficient, Reliable and Prompt!



Packing Detail: Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.



Delivery Detail:



  •  If the size is suitable for container ship, usually by container;
  •  If the size is too big, usually by bulk ship or by container after truncation;
  • Transport ways are based on reducing cost for you and keep the crane performance!



600kg balance crane for sale

 Company Information

600kg balance crane for sale

 Our Services

Service we can provide

  1. Payment terms is flexible

  2. Design the crane according to your technical request

  3. Delivery on time

  4. Diversity products

  5. 1 year warranty

 Customer Visit

 FAQ

     1. Can you make customized products?

  Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands, our

engineers can make suitable design for you.



      2. Can you supply the quality certification?

  Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,

or you can let some third-partied to do the inspection for you.



      3. Can I have a visit to your factory?

  You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
