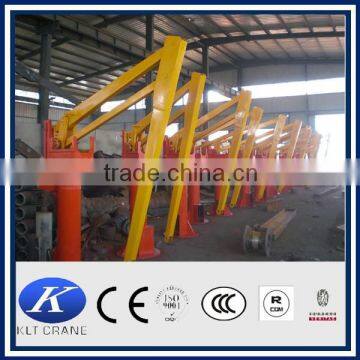

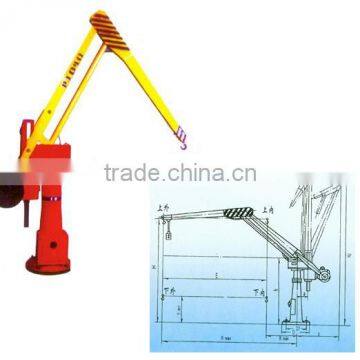

PJ series balance crane
1.Brief descriptions of PJ series balance crane:
PJ series of balance crane is a kind of ideal small mechanical lifting equipment. It uses the four connecting rod mechanism, using manual and motorized simple coordination and formation of a composite sports to carry the load at any time remain steady in operation interval any position. PJ series of balance crane small volume, light weight, beautiful appearence. The use of safe and reliable, light weight, flexible, simple, convenient repair.
2.Applications of PJ series balance crane:
PJ series balance crane are widely used in machine tools, parts assembly and repair work, medium components lifting and transport order, link, production line conversion work, the casting workshop core, box, heat treatment workshop, such as charging. It is fairly ideal.
3.Technical parameter of PJ series balance crane:
| Item | PJ005 | PJ010 | PJ020 | PJ030 | PJ040 | PJ050 | PJ060 |
| Max. loading capacity(kg) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
| Max. lifting height(mm) | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 | 2500 |
| Min. lifting height(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Max. radius of gyration(mm) | 2500 | 2500 | 2500 | 2500 | 2500 | 3200 | 3200 |
| Min. radius of gyration(mm) | 580 | 580 | 770 | 770 | 770 | 1000 | 1000 |
| Rotation angle(.) | 345 | 345 | 345 | 345 | 345 | 345 | 345 |
| Lifting speed(m/min) | 6.14 | 6.14 | 5.44 | 5.52 | 5.56 | 5.08 | 5.08 |
4.Advantages of PJ series balance crane:
1. Design: Compact dimensions, low weight, easy to operate and easy to maintain.
2. Motors: Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.
3. Painting: Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.
4. Limit Switches: To prevent over hoisting & over lowering of hook
5. Push Button Stations: Extra light, handy, easy to operate, aluminum, fabricated from extruded section.
6. Soft Starts: Electric / Electronic soft start modules electrically coupled to the long travel drives to achieve jerk free, cushioned & smooth starts
7. Maintenance Platform With Hand Railing: Easy, simple and safe maintenance of the crane extended partially or totally along the girder
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail:
Electrical parts are packed by crate wood,other parts are nude package ,or as client demand.
Delivery Detail:
· If the size is suitable for container ship, usually by container;
· If the size is too big, usually by bulk ship or by container after truncation;
· Transport ways are based on reducing cost for you and keep the crane performance!
You may have interests in these products
According to meet various requirements from customers, we also produce gantry crane , electric flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our wedsite www.kltqz.en.china.cn for more details.
Xinxiang Kailite Crane Equipment Co.,Ltd is a professional lifting equipments exporter with long
trading history, having rich technical experience. We are located in Xinxiang--- the crane's hometown, having passed the ISO9001 quality system certification, ISO14001 environmental
management system certification and OHSAS18001 occupational health and safety management system
certification of enterprise, and CE certification.
Our trademark is "KAILITE", and our company's operation principle is "science and technology innovation,
people-oriented". All of our lifting devices and our innovation are built on the basis of the safety of users.
Customer-visits:
Our high quality products and prestige enjoy unanimous favorable comments of customers from America,Pukistan,South Africa,Qatar,Mexico,India,Thailand,Malaysia and so on, they sell well all over the world. You really have a good taste on our products!
You can use our cranes at ease, the best after-sales service will be offered from Kailite.
1, One year warranty for whole machines.
2, Providing free quick-wear part.
3, Low charge for continue maintenance when warranty is expired.
4, Exclusive engineer support at any time.
5, We can provide free training to end-users.
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift, jib crane , grab, overhead crane, flatcar or other specials as your requirement!
NOTICE
Welcome to sent us email or leave me message to tell me details of balance crane demand so that I can sent you offer in shortest time:
- 1. Llifting capacity?
- 2. Span?
- 3. Power supply mode?
- 4. Lifting height?
- 5. Or other detailed requirements?
I am Jackie,waiting for your contact !
We Cherish Every Order From Every Customer !
