IP68 20W COB LED Inground Light / led underground Light
Features:
l Unique structure waterproof without any glue, high-grade and artistic, wide application.
l IP68 waterproof

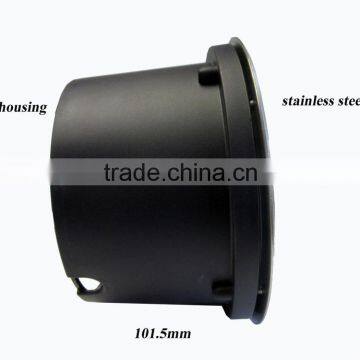

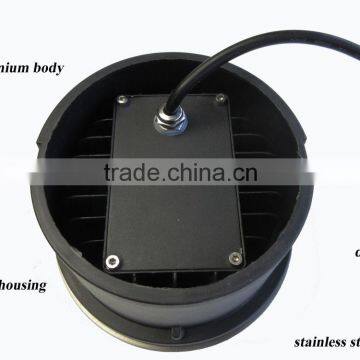

l Extruded aluminum + stainless steel+ tempered glass cover
l Led chip: COB 5W/10W/20W/30W
l Color: Single color – white, red, green, blue, yellow
l Constant driver to make sure LED light working stable, avoid any flashing and noisy
l Voltage:AC/ DC 12V, AC 85-265V Frequency: 50/60HZ
l Beam angle: 15°/25°/30°/45°/60° for options
l Life span: >30000 hours
l Over-current protection
main parameters:
Specification | Parameter | |

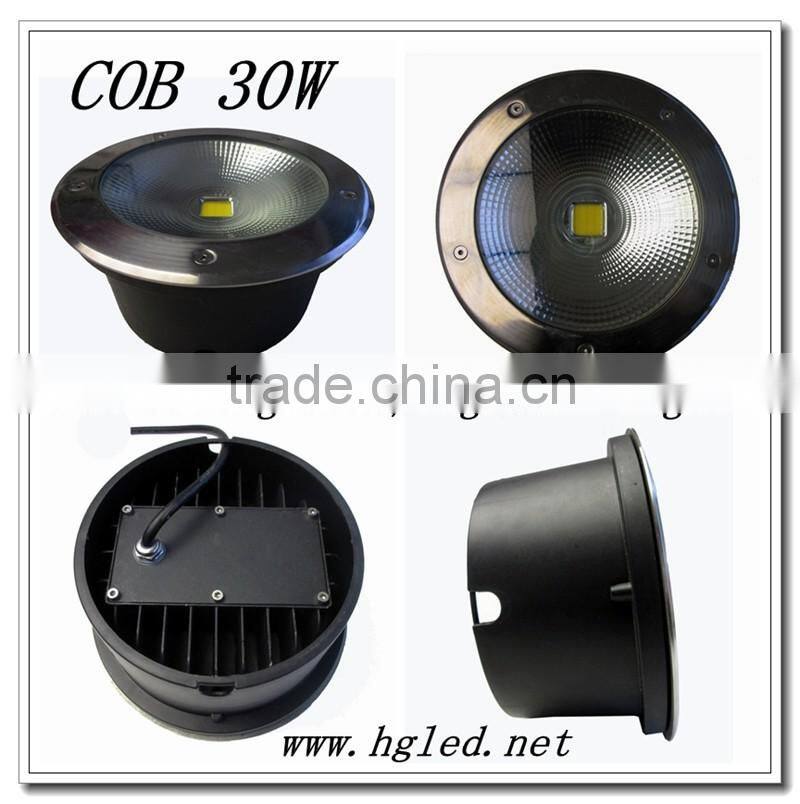

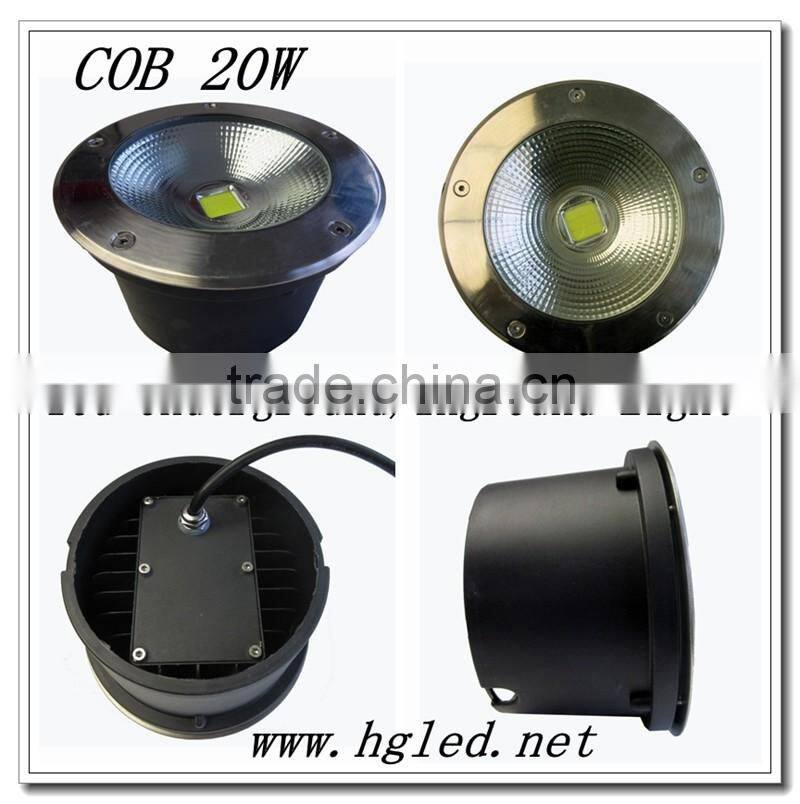

Model No. | HG-UG-20W (COB LED-20W) | HG-UG-30W (COB LED-30W) |
Picture |
|
|
LED Qty | 1pc 20W COB | 1pc 30W COB |
Input Voltage | 85-265V AC or 12V AC/DC | 85-265V AC or 12V AC/DC |
Input Frequency | 50/60 Hz | 50/60 Hz |
Power | 15±1 W(Red) 20±1 W(W/G/B) | 21±1 W(Red) 30±1 W(W/G/B) |
Luminous flux | Blue:220±10%Lm Red:420±10%Lm Green:980±10%Lm C.W.:1400±10%Lm W.W.:1500±10%Lm P.W.:1600±10%Lm | Blue:320±10%Lm Red:620±10%Lm Green:1400±10%Lm C.W.:2300±10%Lm W.W.:2400±10%Lm P.W.:2500±10%Lm |
Wave Length (RGB) | R:621-625 nm G:518-520 nm B:464-467 nm | R:621-625 nm G:518-520 nm B:464-467 nm |

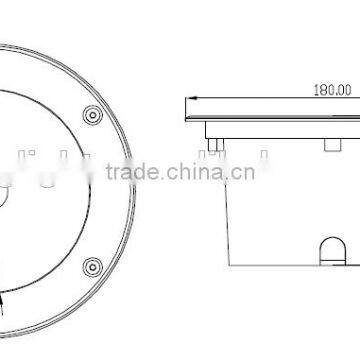

Dimension | Φ180×100 mm | Φ220×90 mm |
Color temperature | W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K | W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K |
Working temperature | 0-40℃ | 0-40℃ |
Storage Temperature | -10-50℃ | -10-50℃ |
Base | Wire | Wire |
Constant driver | yes | yes |
IP rating | IP68 | IP68 |
Constant driver& over-current protection | yes | yes |
IP68 20W COB LED Inground Light / led underground Light

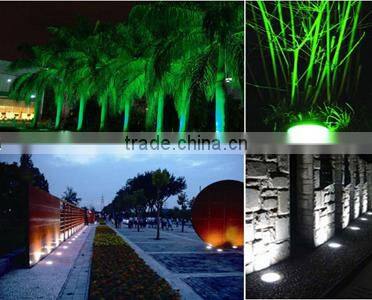

Applications: Garden, Courtyard, Clubs, Stages, Parks, etc.

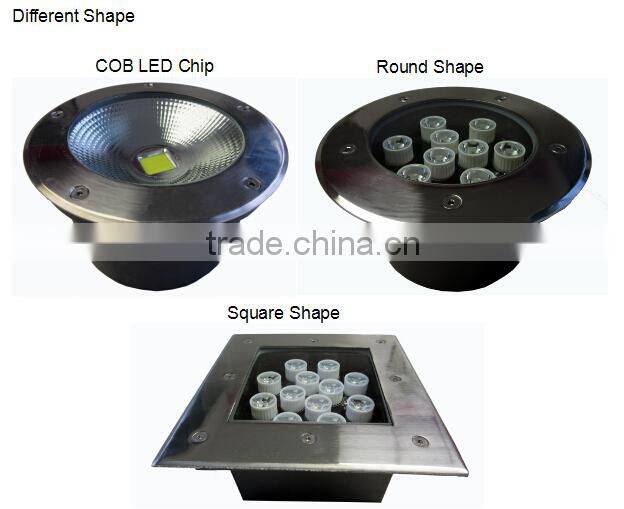

LED Inground Light Series:
IP68 20W COB LED Inground Light / led underground Light

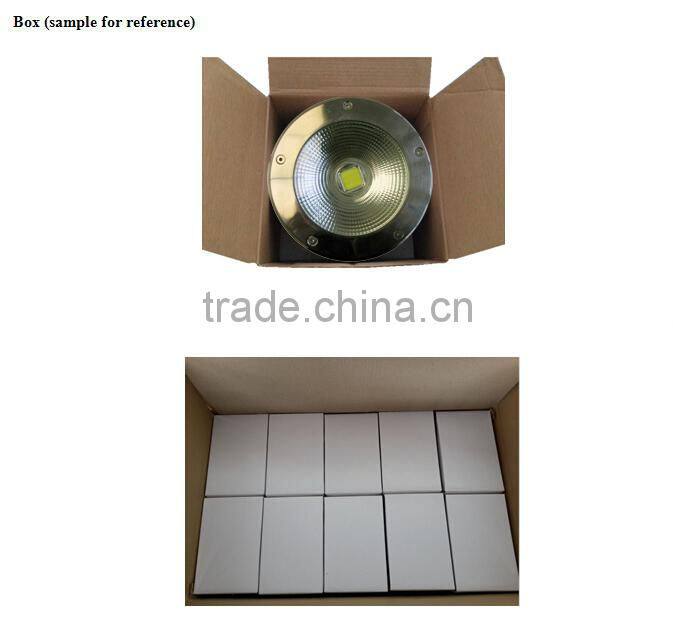

Packaging:1 pc in a white box(24*24*11 cm), 10 pcs in 60x60x26cm master carton.
Shipping:
7-15 working days, it also depends on your order quantity.
1.OEM or ODM------Our advanced production lines, precise equipment, strict quality control process
and experienced engineer team are capable to fulfill the toughest OEM or ODM
requirement from customers worldwide.
2.M.O.Q.-------Generally, we don’t require M.O.Q. in order to help some clients to expand
their business & keep the ball rolling.
3.Lead time------7-15 working days based on stock material and order quantity.
4.Payment------T/T, Western Union or LC(at sight)
5.Incoterms-------EX-Factory/work, FOB, CIF
6.Warranty------All our products are covered by 24 months warranty from the date of purchase.
We are not responsible for any damage caused by improper use/assembling or force majeure.
SHENZHEN HEGUANG LIGHTING CO., LTD. is a sophisticated manufacturer which specializes in R&D
and production of LED Light ODM & OEM in fields of LED Swimming Pool Light and Underwater Light as well as Fountain Light, Wall Washer, etc.
If you are interested in the LED Inground Lamp , please feel free to contact us.
