LED Inground Light IP68 Waterproof 6W 9W 12W 18W led outdoor lighting

FOB Price

USD $24 - $44 / Piece

1 Piece(Min.Order)

Supply Ability 15000 Piece / Pieces per Month
Port Shenzhen China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	High Power LED 1W	Warranty(Year):	2	Input Voltage(V):	12
Lamp Power(W):	6	Lamp Luminous Flux(lm):	420	Lamp Luminous Efficiency(lm/w):	75
Color Temperature(CCT):	Pure White	Working Temperature(℃):	0, 40	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum Alloy	IP Rating:	IP68	Certification:	CE, EMC, FCC, LVD, VDE
Place of Origin:	China	Brand Name:	Heguang	Model Number:	HG-UG-6W (square)

Product Description

LED Inground Light IP68 Waterproof 6W 9W 12W 18W

Product Description

Features:

l Unique structure waterproof, high-grade and artistic, wide application.

l IP68 waterproof(structure water-proof)

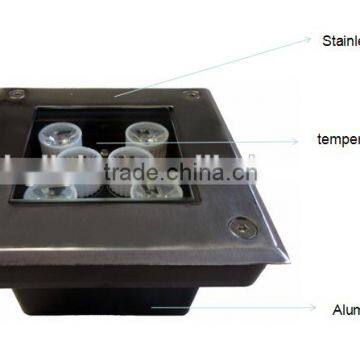

l Material: aluminum + stainless steel cover + tempered glass lens

l Led chip: 1W high power

l Color: RGB: 14 kinds of color changing mode

Single color – white, red, green, blue, yellow

l 3 kinds of RGB control method:External control (wire control), WiFi Control, DMX Control,

l Constant driver to make sure LED light working stable, avoid any flashing and noisy

l Voltage:AC/ DC 12V, AC 85-265V Frequency: 50/60HZ

l Beam angle: 15°/25°/30°/45°/60° for options

l Life span: >30000 hours Over-current protection

Main Parameter:

Specification	Parameter
Model No.	HG-UG-6W	HG-UG-9W
LED Qty	6pcs 1W	9pcs 1W
Input Voltage	85-265V AC or 12V AC/DC	85-265V AC or 12V AC/DC
Input Frequency	50/60 Hz	50/60 Hz
Power	5±1 W(Red) 6±1 W(W/G/B/RGB)	7±1 W(Red) 9±1 W(W/G/B/RGB)
Luminous flux	Blue:60±10%Lm Red:120±10%Lm RGB:170±10%Lm Green:280±10%Lm C.W.:380±10%Lm W.W.:400±10%Lm P.W.:420±10%Lm	Blue:90±10%Lm Red:200±10%Lm RGB:260±10%Lm Green:400±10%Lm C.W.:580±10%Lm W.W.:600±10%Lm P.W.:630±10%Lm
Wave Length (RGB)	R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm	R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm
Dimension	Φ120×71 mm	Φ150×71 mm
Color temperature	W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K	W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K
Working temperature	0-40℃	0-40℃
Storage Temperature	-10-50℃	-10-50℃
Base	Wire	Wire
Constant driver	yes	yes
IP rating	IP68	IP68
Constant driver& over-current protection	yes	yes

Specification	Parameter
Model No.	HG-UG-12W	HG-UG-18W
LED Qty	12pcs 1W	18pcs 1W
Input Voltage	85-265V AC or 12V AC/DC	85-265V AC or 12V AC/DC
Input Frequency	50/60 Hz	50/60 Hz
Power	12±1 W(W/G/B/RGB) 8±1 W (Red)	18±1 W(W/G/B/RGB) 14±1 W(Red)
Luminous flux	Blue:120±10%Lm Red:280±10%Lm RGB:350±10%Lm Green:550±10%Lm C.W.:900±10%Lm W.W.:920±10%Lm P.W.:950±10%Lm	Blue:200±10%Lm Red:400±10%Lm RGB:500±10%Lm Green:850±10%Lm C.W.:1200±10%Lm W.W.:1300±10%Lm P.W.:1400±10%Lm
Wave Length (RGB)	R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm	R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm
Dimension	Φ180×86 mm	Φ200×86 mm
Color temperature	W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K	W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K
Working temperature	0-40℃	0-40℃
Storage Temperature	-10-50℃	-10-50℃
Base	Wire	Wire
Constant driver	yes	yes
IP rating	IP68	IP68
Constant driver& over-current protection	yes	yes

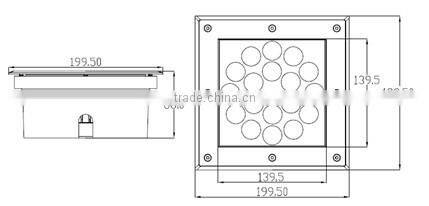

Dimension:

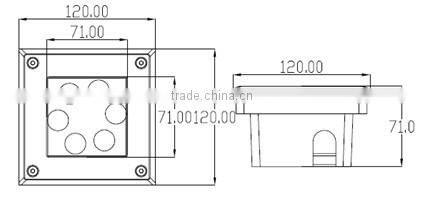

HG-UG-6X1W( Square )

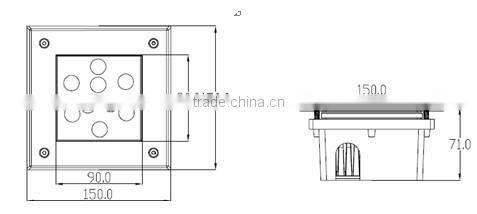

HG-UG-9X1W( Square )

HG-UG-12X1W( Square )

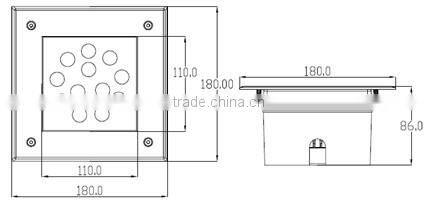

HG-UG-18X1W( Square )

RGB Control methods:

WiFi control, DMX control, External control, Single color

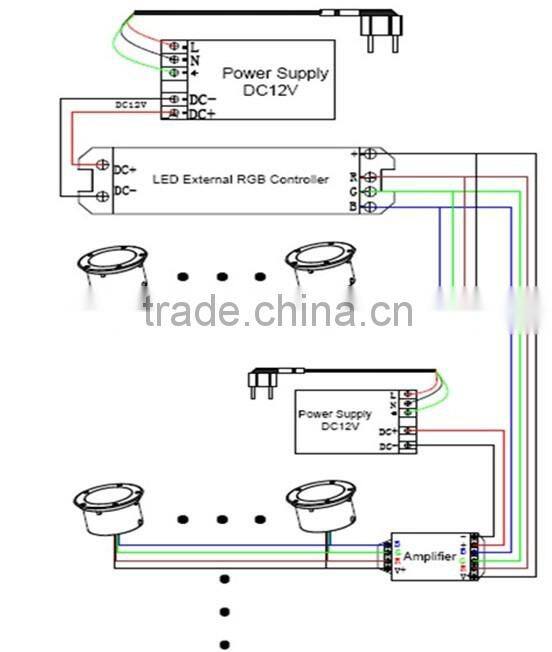

External control connection as example:

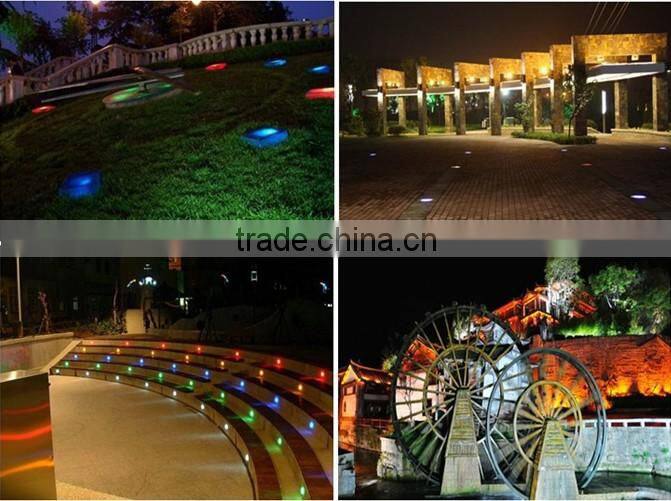

Applications: Garden, Courtyard, Club, Stage, Parks, Hotel, etc.

LED Inground Light Series:

Square:

Round:

COB:

Packaging & Shipping

Each in a box, suitable quantity in a carton

Model no.	N.W./pc(kg)	Box dim(cm)	G.W./pc(kg)	Ctn dim(cm)	Ctn. Qty.(pcs)	G.W./ctn(kg)
HG-UG-6W	0.9	14x14x11	1.0	57x30x45	30	31
HG-UG-9W	1.4	16x16x12	1.5	60x40x40	20	31
HG-UG-12W	1.8	21.5x10.5x21	1.9	60x43x45	20	39
HG-UG-18W	2.5	21.5x10.5x21	2.65	60x43x22	10	28

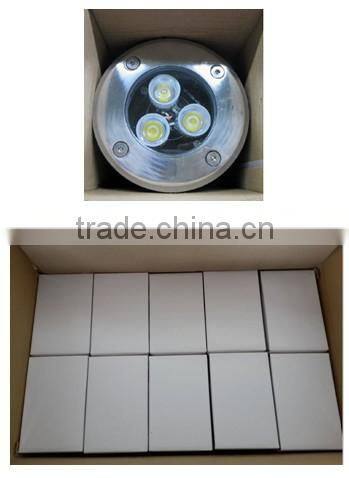

White Box ( sample for reference )

Shipping:
