Slide Potentiometer

Name: Slide Potentiometer
Brand: OMTER
SKU: 123744041
Availability: InStock

US$ 0.1 - 1 MOQ: 10000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OMTER

Model Number:

OM128

Yueqing Omter Electronic & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OMTER

Model Number OM128

Type Slide Potentiometer

Technology Carbon Film

Resistance 500Ω~1MΩ

Resistance Tolerance ±20%

Rated Power 0.05W at 70 ℃

Max. Operating Voltage 50V

Operating Temperature -10℃ to +75℃

Specifications

Low-cost and fast delivery
The slide travel 10mm

General Characteristics:

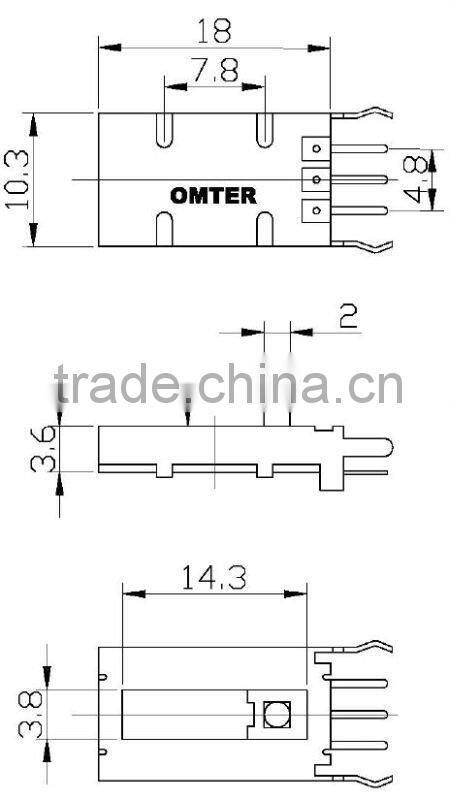

Shape and dimensions	See drawing
Operating temperature range	-10°C~+75°C
Storage temperature range	-20°C~+85°C
Test conditions	Ordinary atmospheric pressure (86~106kPa)
Certificate	ROHS Compliant

Mechanical Characteristics:

Slider Travel	10mm
Operating force	10~50gf.cm

Electrical Characteristics:

Resistance Range	Any resistance as customer request
Power rating	0.05W 70 °C
Max operating voltage	50V
Total Resistance error	±20%
Residual resistance
Slider noise	≤68mV
Insulation resistance	50MΩ min @ DC100V.
Withstand voltage	1 minute @ A.C100V
Solderability	235°C±5°C @ 3±1 seconds

Endurance:

Heat resistance	**16 hours @ 85±2°C**
Moisture resistance	*No change after 16 hours at* 85±2°C
Low temperature resistance	*No change after* 96±4 hours at 40±2°C and 90~95%Rh Loaded
Rotation life	10,000 times (Reciprocate 10,000 times at a speed of 10~15 times reciprocation per minute with no-load in the ordinary temp and humidity.
