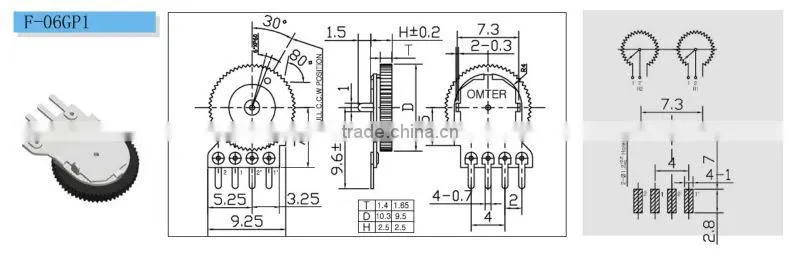

9mm Rotary Potentiometer Thumbwheel Driving Potentiometer F-06GP1
US$ 0.1 - 15
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
F-06GP1
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thumbwheel Driving Rotary Potentiometer F-06GPUS$ 1 - 15MOQ: 500 Pieces -
Thumbwheel Driving POT F-06G1US$ 1 - 15MOQ: 500 Pieces
-
Thumbwheel Driving Potentiometer F-06GUS$ 1 - 15MOQ: 500 Pieces
-
Square Rotary Potentiometers F-0911NUS$ 1 - 25MOQ: 500 Pieces
-
4mm Trimmer Potentiometer SR-103A(10x2_5)US$ 1 - 15MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
OMTER
Model Number
F-06GP1
Type
Rotary Potentiometer
Technology
Carbon Film
Resistance
500Ω- 500KΩ
Resistance Tolerance
±20%
Rated Power
Liner Taper B:0.02W Other Tapers:0.01W
Max. Operating Voltage
DC 10V
Operating Temperature
normal
Specifications
1.High quality and reasonable price2.model no : F-06GP1
3.Thumbwheel Driving POT rotary potentiometer
1.High quality and reasonable price
2.model no : F-06GP1
3.Thumbwheel Driving POT rotary potentiometer
4. Dip and reflow solderable.
General Specification
MAIN SPECIFICATION | |
Total Resistance |
500Ω- 500KΩ |
Total Resistance tolerance |
±20% |
Resistance Tape |
A,B,C,D |
Max. operation voltage |
DC 10V |
Power Rate |
Liner Taper B:0.02W Other Tapers:0.01W |
Withstanding voltage |
10 Sec at AC 25V |
Noise |
Less than 100mV |
Insulation resistance |
Over than 5MΩat DC 50V |
Residual Resistance Value |
Term.1~2: Less than 20Ω |
Term.2~3: Less than 20Ω | |
Total Rotation Angle |
270±10(degree) |
Rotation Torque |
10~100 gf.cm |
Shaft Stop Strength |
0.7Kgf.cm Min |
push-pull strength |
0.5kgf Min Pull:0.2kgf Min |
Durable performance | |
Rotational life |
5000Cycle |
....
