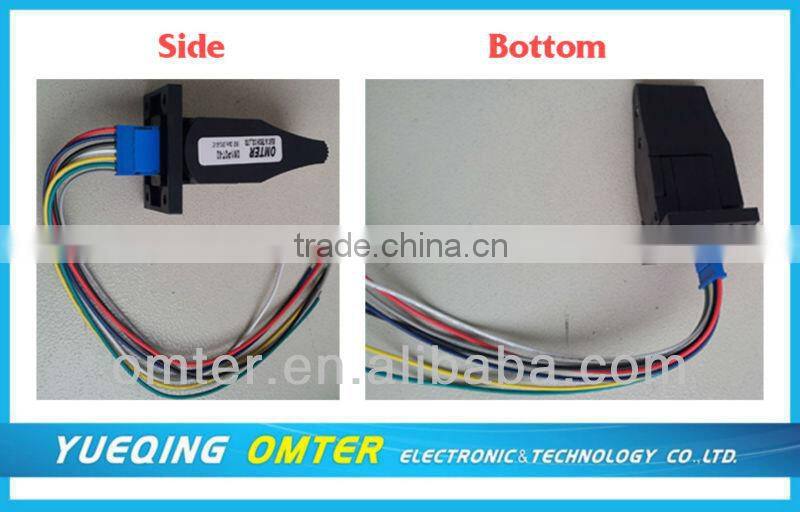

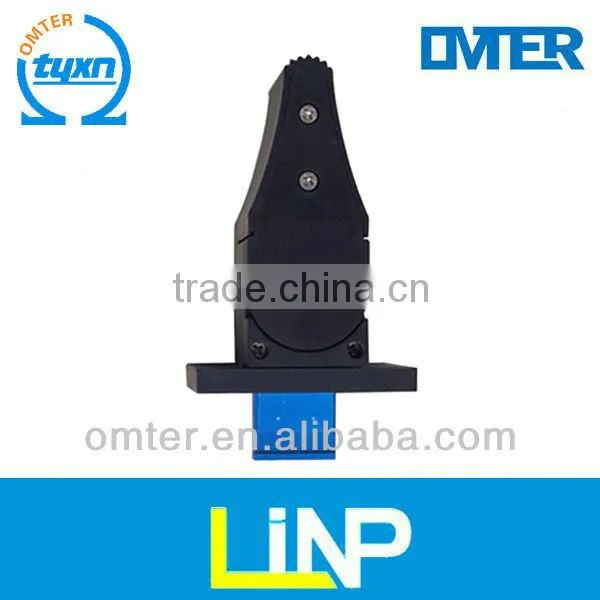

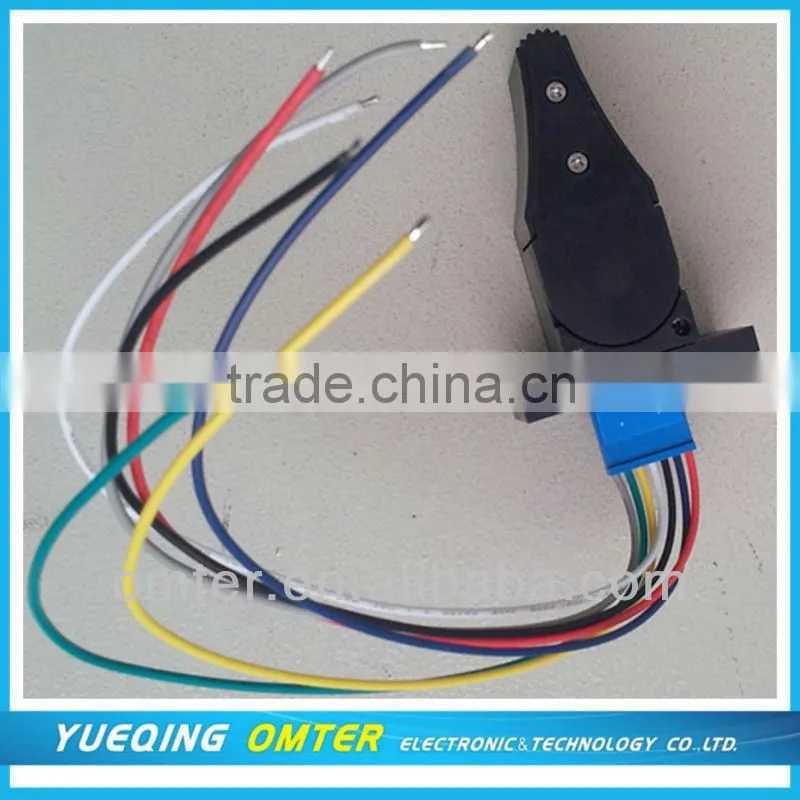

OM1A Single or Double Hall Type Joystick for Industrial Remote Control

Name: OM1A Single or Double Hall Type Joystick for Industrial Remote Control
Brand: OMTER
SKU: 123739393
Availability: InStock

Yueqing Omter Electronic & Technology Co., Ltd.

US$ 58 - 60 MOQ: 1 Piece

Key Specifications

Brand Name:

OMTER

Model Number:

OM1A

Compatible Platform:

PSP

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name OMTER

Model Number OM1A

Compatible Platform PSP

Type Joystick

Place of Origin Zhejiang, China

Specifications

1. Brand: OMTER
2.OM1A joystick
3.optional resistance value
4.Competivie price
5.High quality

OM1A single or double Hall type joystick for industrial remote control

Product characteristic:

Spring automatic reset, fingertip type operation.

Single axis front and back direction operation; with direction switch’s potentiometer mode;

could without contact with single or double Hall mode, no direction switch.

Could according to the requirement select the output voltage range.

Application scope:

This series products are mainly used in industrial remote control,
construction machinery, agricultural machinery and transportation machinery.

Product selection:
OM1A - ooo
1. 2.
Sub-item selection instructions:

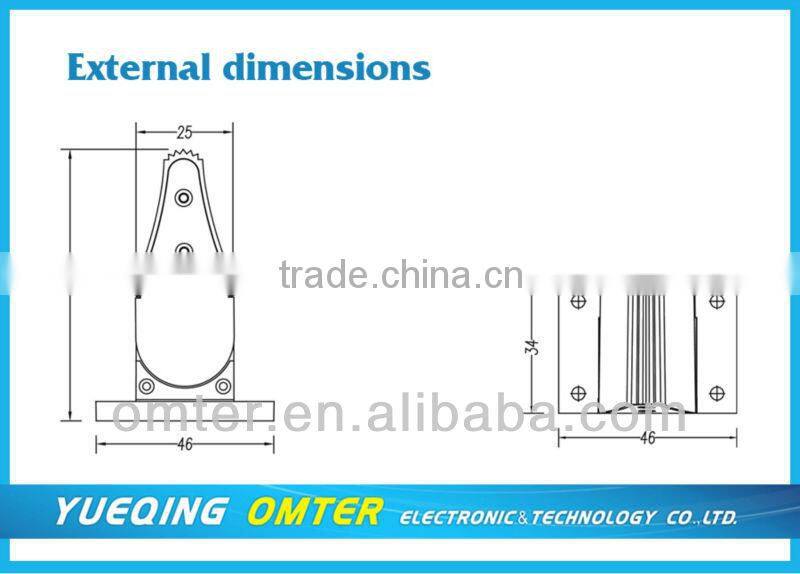

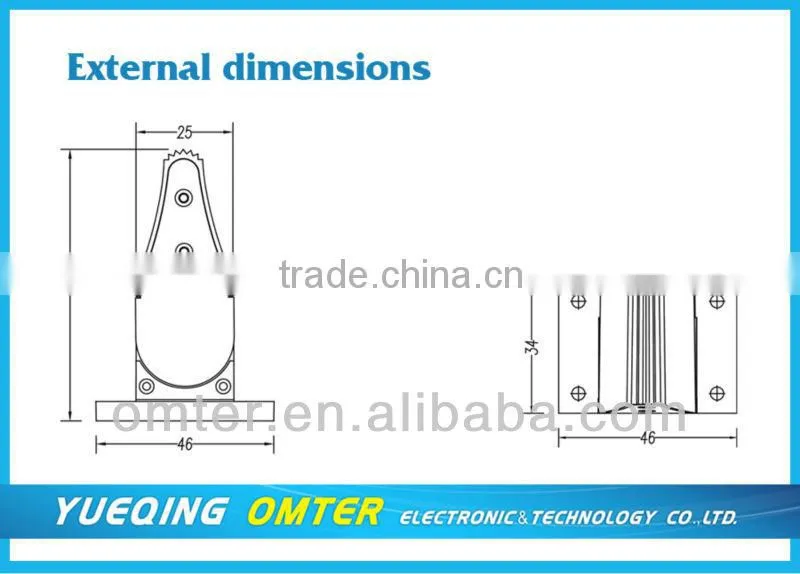

1.Product series number	OM1A series industry handles, Hall or potentiometer type single axis spring automatic reset,potentiometer type with direction switch, the installment pitch of hole size is 24mm*36mm. Mainly used in industrial remote control, construction machinery, agricultural machinery and transportation machinery
2.Output signal	P041= potentiometer type, input voltage less than 36Vdc, with 4K Ω center-tapped potentiometer,0% ~ 100%Vdc voltage output P052= potentiometer type, input voltage less than 36Vdc, with 5K Ω center-tapped potentiometer, 10% ~ 90%Vdc voltage output P053= potentiometer type, input voltage less than 36Vdc, with 5K Ω center-tapped potentiometer, 25% ~ 75%Vdc voltage output H51= Single hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output H52= Single hall type, the input voltage 0% ~ 5Vdc, 50% ~ 100%Vdc voltage output H53= Single hall type, the input voltage 25% ~ 5Vdc, 50% ~ 75%Vdc voltage output 2H51= Double hall type, the input voltage 10% ~ 5Vdc, 50% ~ 90%Vdc voltage output 2H52= Double hall type, the input voltage 0% ~ 5Vdc, 50% ~ 100%Vdc voltage output 2H53= Double hall type, the input voltage 25% ~ 5Vdc, 50% ~ 75%Vdc voltage output

Technical parameter:

Mechanical parameter:
Swing angle:	± 30°
Service life:	Is bigger than 5,000,000 times (potentiometer type), Is bigger than 10,000,000 times (Hall type)
Operation strength:	3.5N (biggest)
Limit strength:	50N
Weight:	45g
Electrical parameter:
Potentiometer type:
Power supply voltage:	< 36Vdc
Total resistance value:	4K Ω 5K Ω;
Electrical angle:	± 28 °
The median position voltage (relative power supply voltage):	48% ~ 52%
The median position dead zone angle:	± 2.5 °
Potentiometer loading maximum voltage:	DC32V
Potentiometer allows the maximum power consumption (25):	0.25W
Direction switch:
load capacity:	10mA 30Vdc (resistive load)
Outset angle:	± 3 ° ± 5 °
Hall type:
Power supply voltage:	5Vdc
The total current:	<10mA
Linear tolerance:	± 3%
Power supply voltage:	DC5.0V ± 10%
Load resistance:	>10K Ω
Environmental parameter:
Operating temperature:	-20 °C ~ +70 °C
Storage temperature:	-40 °C ~ +85 °C
