TS0672-0723c-b 4 pin tact switch

Specifications

1.small size suitable for high density mounting.
2.Much thinner and lighter than conventional products.

   tact switch

Item no.:    TS0672-0723c-b

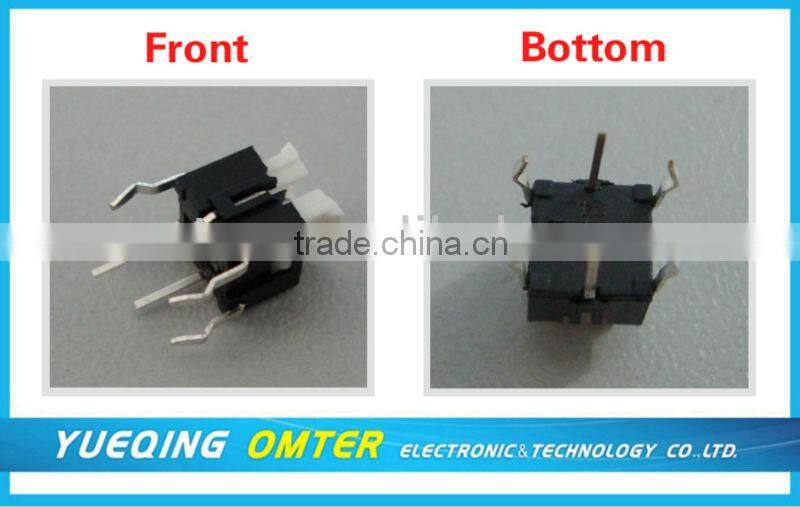

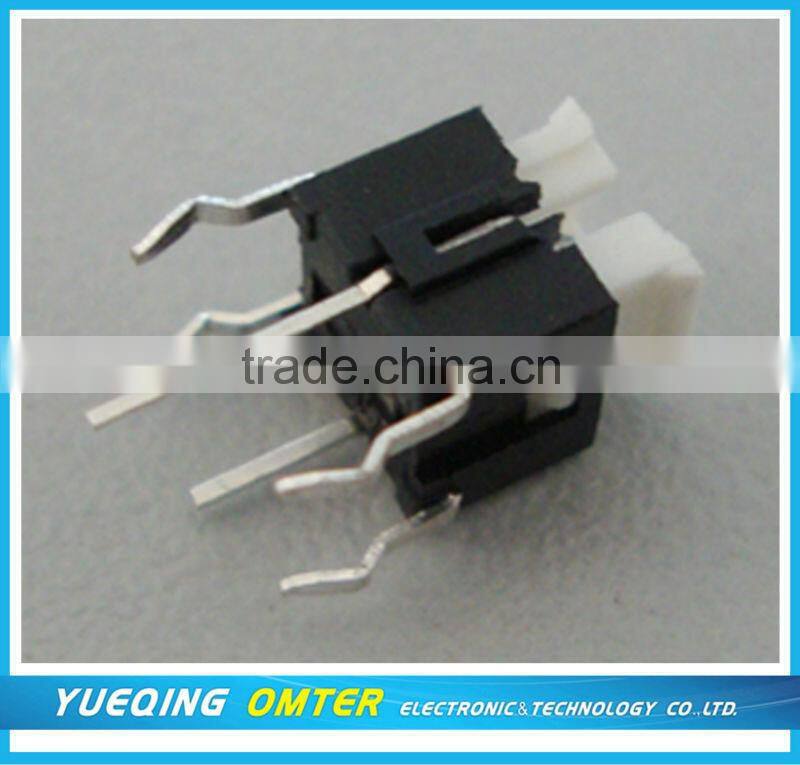

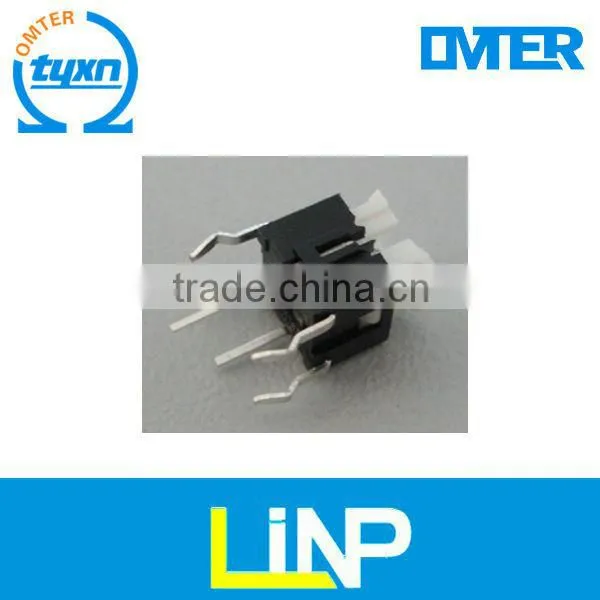

Detailed picture:

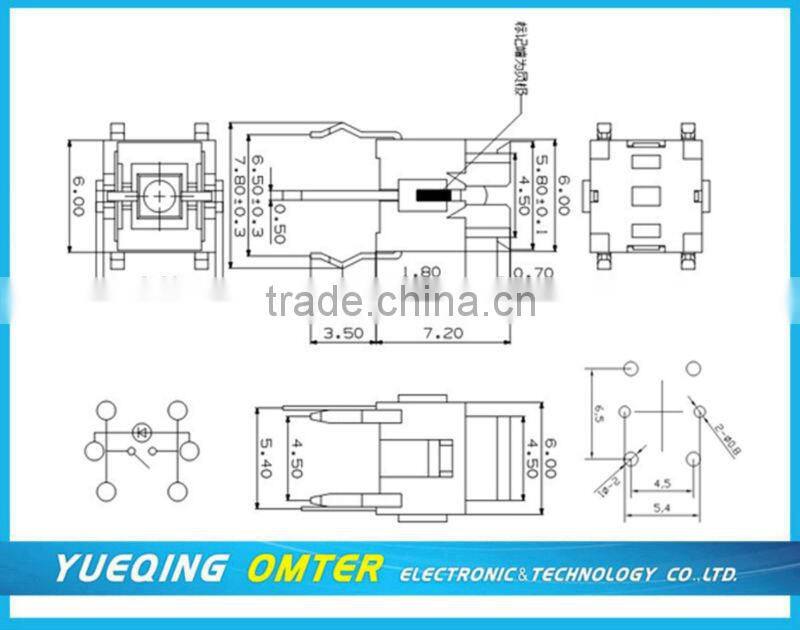

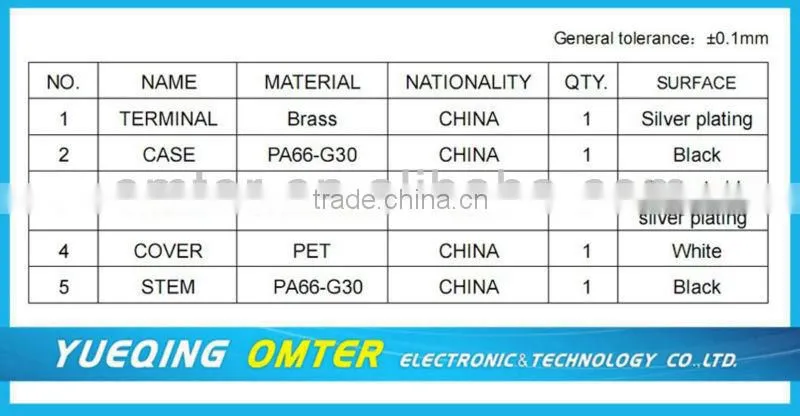

Drawing:



APPROVAL SPECIFICATIONS:
General characteristics:
Application:This specification is applied to the requirements for TACTILE SWITCH (MECHANICAL CONTACT)
Operating Temperature Range:-20°C~70°C(Normal humidity, normal air pressure)
Storage Temperature Range:-30°C~80°C(Normal humidity, normal air pressure)
Test Conditions Unless otherwise specified, tests and measurement shall be made in the following standard conditions: Normal temperature………………5°C~35°C Normal humidity…………………relative humidity 45%~85% Normal air pressure…………………86Kpa~106Kpa If any doubt arise from the judgment, tests shall be conducted at the following conditions: Temperature………………………20°C±2°C Relative humidity………………65%±5% Air pressure…………………………86KPa~106Kpa
Detailed specification:
Appearance: There should be no defects that affect the serviceability of product.
Style and dimension: shall conform to the assemble drawings.
Type of actuating: Tactile feedback.
Contact arrangement: 1 pole, 1 throw. (Details of contact arrangement are given in the assembly drawings.)
Ratings: 12V DC, 50mA (Effective value)
Electrical specification:
ITEM	TEST CONDITIONS	REQUIREMENTS
Contact Resistance	Applying a static load of 2 times operating force to the center of the stem, measurements shall be made by 5V DC 10mA or more than 1KHZ AC small-current contact resistance meter.	≤50m Ω
Insulation Resistance	Measurement shall be made following application of 100V DC potential, across terminals, and across terminals and cover, for one minute.	≥100M Ω
Dielectric voltage proof	250V AC (50HZ or 60HZ) shall be applied across terminals, for one minute.	No dielectric breakdown shall occur.

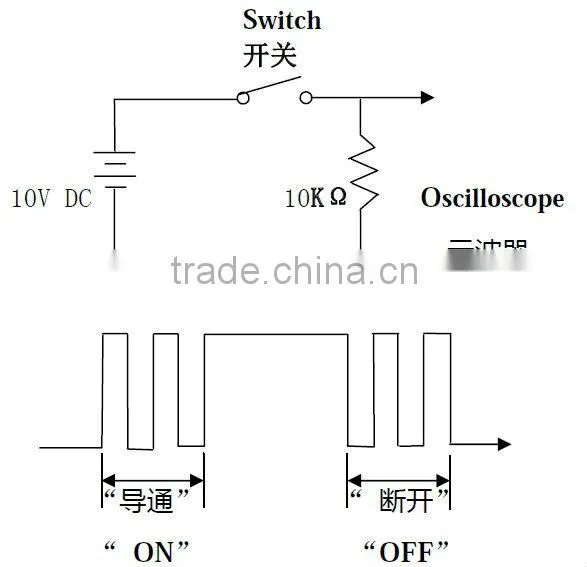

Contact Bounce	Lightly striking the center of the stem at a rate encountered in normal use (3 to 4 times per second), and bounce shall be tested at “ON” and “OFF”	ON-3msec.max. OFF-8msec.max.
Mechanical specification:
Operating Force	Placing the switch such that the direction of switch operation is vertical and then gradually increasing the load applied to the center of the stem, the maximum load required for the switch to come to a stop shall be measured.	250±50gf
Full Travel	Placing the switch such that the direction of switch operation is vertical and then applying static load of 2times operating force to the center of the stem; the travel distance for the switch to come to a stop shall be measured.	0.25±0.1mm
Return Force	The sample switch is installed such that the direction of switch operation is vertical and upon depressing the stem in its center to the whole travel distance, the force of the stem to return to its free position shall be measured.	60gf.min.
Stop Strength	Placing the switch such that the direction of switch operation is vertical, and then a static load of 30N shall be applied in the direction of stem operation for a period of 1 min.	There shall be no sign of damage mechanically and electrically.
Stem Strength	Placing the switch such that the direction of switch operation is vertical,and static load of 30N shall be applied in the direction of stem operation for a period of 1 min	10N.min.
Soldering heat Resistance	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h before measurement are made: 1)Solder temperature:260 ±5 °C 2)Immersion time 5s ±1s	There shall be no sign of damage mechanically and electrically
Solderability	Measurements shall be made following the test set forth below: 1)Solder temperature : 245±5°C 2)Immersion time: 2s±0.5s	Except for the edge, the coating should cover a minimum 90%
Resistance to low temperature	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1 h. before measurements are made: 1) Temperature :-30±2°C 2) Time: 96h	Contact resistance: ≤200mΩ
Heat resistance	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1 h. before measurements are made: 1) Temperature: 80±2°C 2) Time: 96h	Contact resistance: ≤200mΩ
Change of temperature	After 5 cycles of following conditions, the sample shall be allowed to stand under normal temperature and humidity conditions for 1 h. and measurements shall be made. During the test waterdrops shall be removed.	Contact resistance: ≤200mΩ
Moisture resistance	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h. before measurements are made: 1) Temperature: 60±2°C 2) Relative humidity: 90% to 95% 3) Time: 96h	Contact resistance: ≤ 200mΩ
Sulfuration resistance	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h. before measurements are made: 1) H2S gas concentration: 3ppm±1ppm 2) Time: 72h 3) Temperature: 40±2°C(90~95%RH)	Contact resistance: ≤ 200mΩ
Salt Mist	The switch shall be checked after following test: 1) Temperature: 35°C±2°C 2) Salt solution : 5±1%(solids by mass) 3) Time: 8h±1 hour After test,salt deposit shall be removed by running water.	No remarkable corrosion shall be recognized in metal part.
Operation life	Measurement shall be made following the test set forth below: 1) DC 12V, 50 mA resistive load 2) Rate of operation: 120 times/min. 3) Operating Force:300~350gf 4) Average fault-free life:100,000 cycles	Contact resistance: ≤200mΩ Contact bounce: ≤10ms Operating Force: initial value±30%
Vibration	Measurement shall be made following the test set forth below: 1) Vibration frequency range: 10Hz to 55Hz to 10Hz 2) Amplitude: 1.5mm 3) Direction of vibration:Three mutually perpendicular direction including the direction of stem travel 4) Duration: Each 2hours.
Soldering conditions:
ITEM	RECOMMENDED CONDITIONS
Hand soldering	Please practice according to below conditions: 1) Soldering temperature: 350°C Max. 2) Continuous soldering time: 3 s Max.
Conditions for Auto-dip Items Condition Flux built-up Mounting surface should not be coated with flax Preheating temperature Ambient temperature of the soldered surface of PC board. 100°C max. Preheating time 60s max. Soldering temperature 260°C max. Continuous dipping time 5s max. Number of soldering 2times max.
Note: 1,After switches were soldered, please be careful not to clean switches with solvent. 2,Right after switches were soldered;please be careful not to load to on the knobs of switches. Please be careful not to pile up PCB. after switches were soldered. 3,Preservation under high temperature and high high humidity or corrosive gas should beavoided Especially . When you need to preserve for a long period ,do not open the carton.

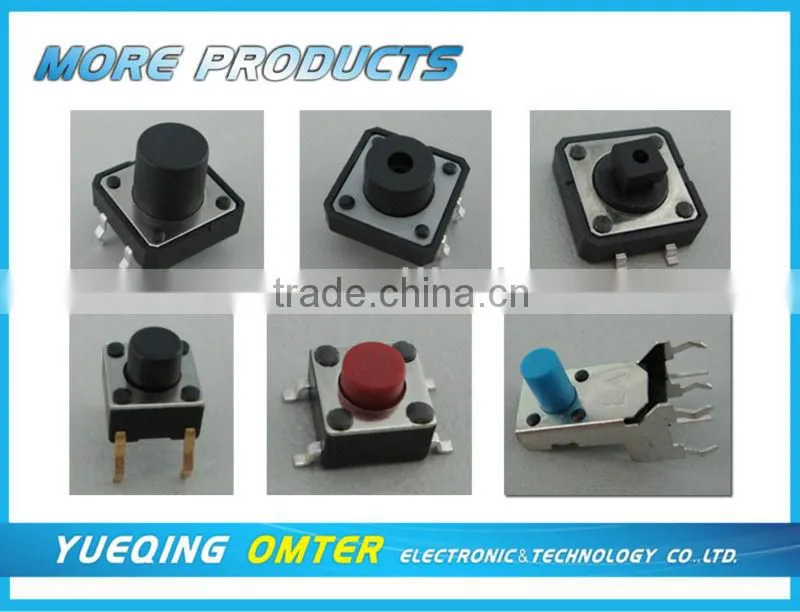

More product:
