Industrial Robot Medical Equipment Optical Instruments Use 3axis Joystick H700A

Industrial robot medical equipment optical instruments use 3axis joystick H700A

Detailed data:

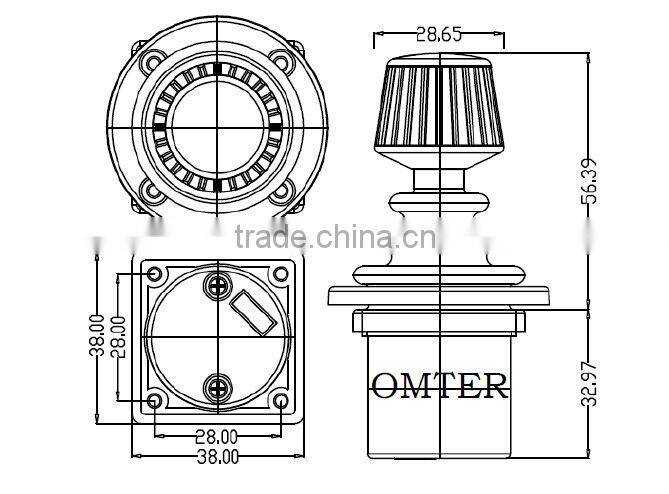

H700A Series 3-axis Hall joystick

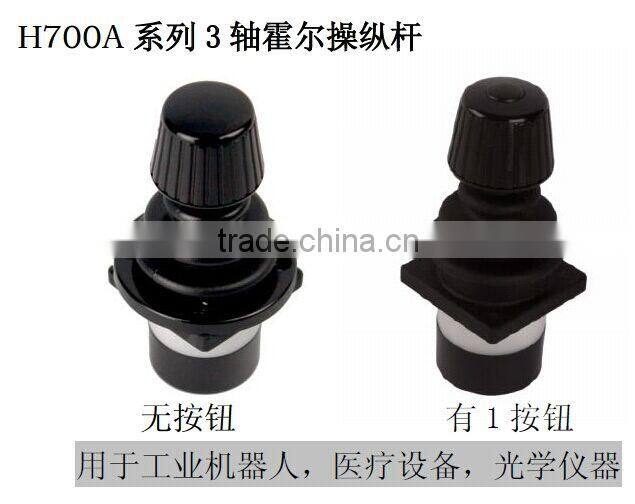

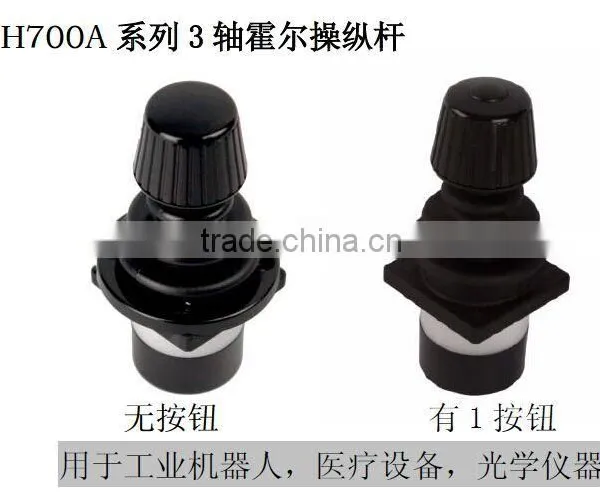

No button   a button
For industrial robots, medical equipment, optical instruments
.. Three axis, Hall sensors,
.. Button (optional): 1 button (reset)
.. Operating angle: XY axis ± 20 ° diagonal ± 28 °
..; Z-axis ± 30 °
.. Power: DC5V, 12-24V (selection)
.. Output: analog voltage 0-5V, analog current
0-20MA, serial digital SPI, RS232, RS485,
USB, CAN (2.0B)
.. Life: 500 million times; button one million times;
.. Material: aircraft aluminum alloy and ABS + PC material
.. Repeated return accuracy: less than 0.8%.
.. Operating temperature: -40 ℃ ~ + 70 ℃
.. Storage Temperature: -50 ℃ ~ + 80 ℃
.. Protection class: IP65 panel partially
