22HP-10 Sakae Potentiometer

22HP-10 Sakae Potentiometer thumbnail-1
22HP-10 Sakae Potentiometer thumbnail-2
22HP-10 Sakae Potentiometer thumbnail-3
22HP-10 Sakae Potentiometer thumbnail-4
22HP-10 Sakae Potentiometer thumbnail-5
22HP-10 Sakae Potentiometer photo-1
22HP-10 Sakae Potentiometer photo-2
22HP-10 Sakae Potentiometer photo-3
22HP-10 Sakae Potentiometer photo-4
22HP-10 Sakae Potentiometer photo-5
US$ 12 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
SAKAE
Model Number:
22HP-10
Contact Supplier Request Quote Chat Now
Yueqing Omter Electronic & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name SAKAE
Model Number 22HP-10
Type Rotary Potentiometer
Technology Other, precision potentiometer
Resistance 100Ω to 100kΩ
Resistance Tolerance Standard Class ±5%(J) Precision Class ±1% (F)
Rated Power 2W
Max. Operating Voltage 250V
Operating Temperature /

Specifications

1.High quality and reasonable price
2.Model NO : 22HP-10
3.Carbon Rotary POT.Rotary potentiometer
4.MOQ: 1pc

sakae  potentiometer

22HP-10 sakae potentiometer

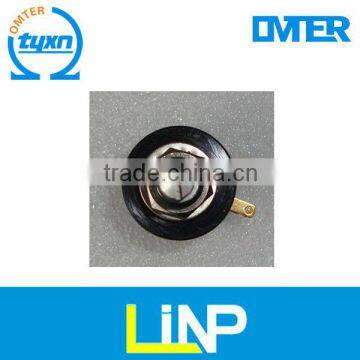

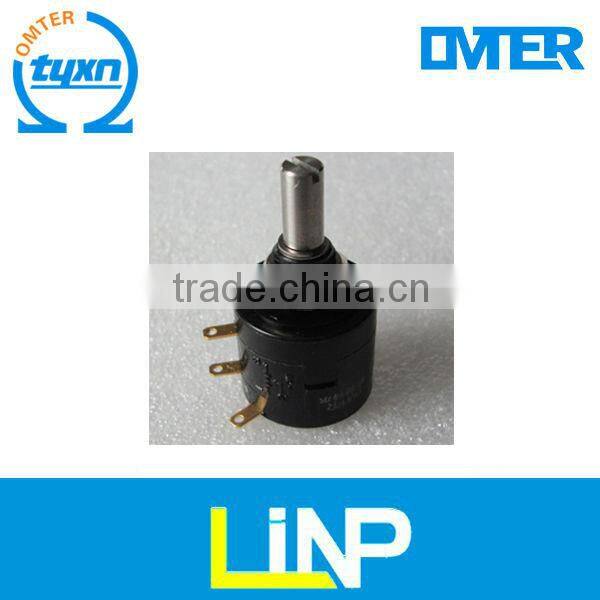

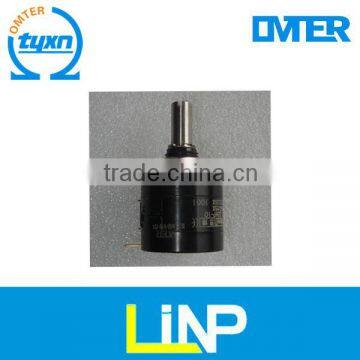

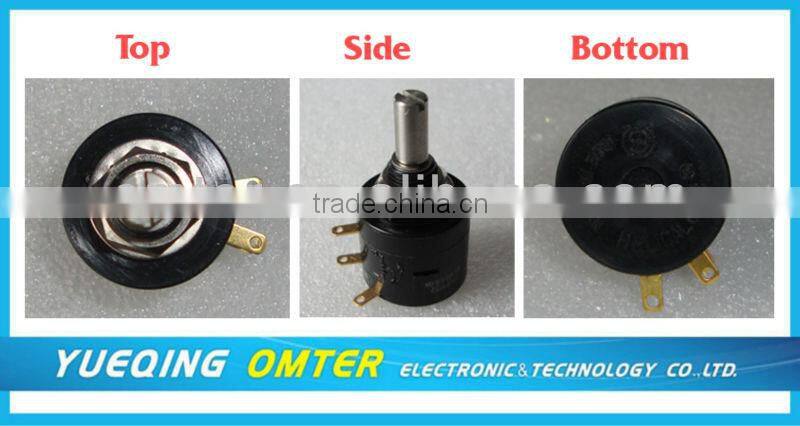

Detailed picture:

22HP-10 sakae potentiometer







Mechanical parameter:



Electrical:



Standard Resistance

100Ω to 100kΩ

Resistance Tolerance

Standard Class ±5% (J)  Precision Class ±1% (F)

Independent Linearity

Standard Class  ±0.25%  Precision Class  ±0.1%

Electrical Travel

360 °  × n ±5 °  (n: No. of turns)

Power Rating

2W

Noise

Within 100Ω E.N.R.

Resist. Temperature Coefficient Of Wire

±20p.p.m./°C

Insulation Resistance

Over 1,000MΩ at 500V.D.C.

Stopper Strength

Approx. 0.35N•m (3.5kgf•cm)

Dielectric Strength

1 minute at 1,000V.A.C.

Mechanical:



Mechanical Travel

360   ° × n (n: No. of turns)

Starting Torque (MAX.)

Within 10mN.m (100gf•cm)

Bearing

2 Pairs Ball Bearing

Shaft

Stainless Steel

Housing Case

Glass-filled nylon

Bushing

Glass-filled nylon

(For ganged version,
the bushing is metalbrass
without plating.)

Terminals

Gold-plated brass
(All terminals can be
fitted with the AMP
110 series faston
receptacle (2.8× 0.5mm)
or equivalents.)

Max. Torque exerted
on fastening the
mounting nut to the
bushing

Within 1.0N•m (10kgf•cm)
(In case of panel thickness with
over 2.5mm., the rotating torque
may become heavier.)

Mass:

Approx. 20g



  Standard Resistance Values No. of Wire Turns Resistance Wire Used



Resist. Value ( Ω )

100

200

500

1k

2k

5k

10k

20k

50k

100k

22HP-10

2,100

2,480

3,300

4,000

5,020

5,000

6,400

7,800

10,100

11,000

Resist. Wire Used


Cu-Ni System



Ni-Cr System



Special Specification Available:



Rear shaft (6mm dia. and 15mm length), Multi-ganged (Available up to 10 gangs), High torque, Special shaft dia. (φ
3mm, φ 3.175mm, φ 4mm, φ 5mm), Special machining on the shaft, Plastic shaft, Metal bushing (22HPM-n with antirotation
pin), 1, 2, 3, 4, 6, 7 and 8-turn versions are available (These versions have same outer dimensions, but
general specifications are different each other, so please ask us for details), Simple sealed housing, Slipping-clutch
incorporated type(20mN·m~60mN•m), Extra taps (Available up to 1 tap only for 10-turn model), Servomount type
(Same dimensions as 22HHPS-10).

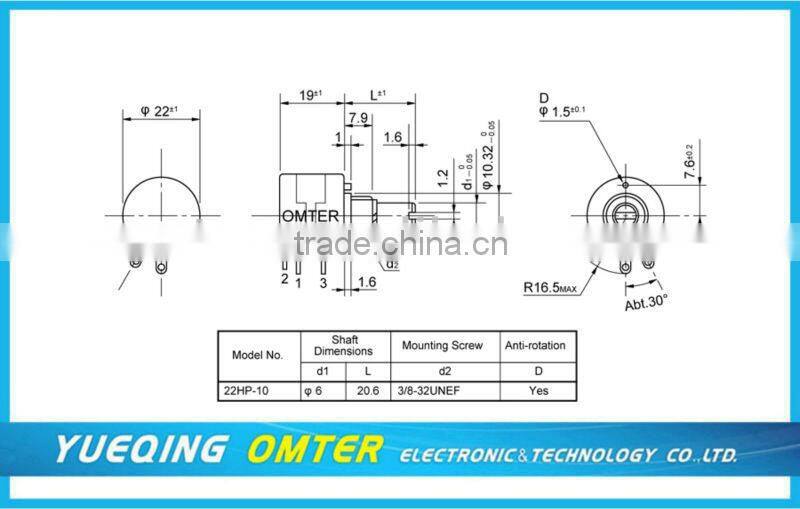

22HP-10 Drawing:

22HP-10 sakae potentiometer

22HP-10 sakae potentiometer



Package:

22HP-10 sakae potentiometer





Express delivery :

22HP-10 sakae potentiometer





Sample:



1. Sample: Could provide sample.



2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.



3. Samples payment term: T/T, PAYPAL, Western union







Quality Guarantee:



1.Strictly quality control  before leave factory



2. Quality guarantee  within one year







Advantage:



1.Low MOQ: 1pc



2.New design Accepted: As your requirement



3.Good Service: Customer as God



4.Good Quality: Strict quality control  and good reputation



5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)







Order Guide:



1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER  sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6.  After delivery will inform the tracking number and check the status for clients.
7.   Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
