6'' Mono Solar Cell, 19.80% Efficiency 4.72w NSP Mono Solar Cell

Topsky Hardware Electronic Technology (Shenzhen) Co., Ltd.(Int'l Dept. One)
6'' Mono Solar Cell, 19.80% Efficiency 4.72w NSP Mono Solar Cell thumbnail-1
6'' Mono Solar Cell, 19.80% Efficiency 4.72w NSP Mono Solar Cell thumbnail-2
6'' Mono Solar Cell, 19.80% Efficiency 4.72w NSP Mono Solar Cell photo-1
6'' Mono Solar Cell, 19.80% Efficiency 4.72w NSP Mono Solar Cell photo-2
US$ 1.3 - 1.4 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Taiwan Brand
Model Number:
TN-156M(4BB)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Taiwan Brand
Model Number TN-156M(4BB)
Material Monocrystalline Silicon
Size 156*156mm
Number of Cells 1
Max. Power 4.72w

         6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell

Founded in 1998, Topsky Energy has been specializing in PV industry for 17 years. our factory located

in Dongguan, which covers 20,000 square meters, the capacity is 200MW/year, our makerting office and

warehouse located in Shenzhen, Welcome to visit us freely.



Our product range:

  • Solar Cell: 125mm*125mm mono solar cell & 156mm * 156mm poly and mono solar cell
  • Solar Panel: 60 cell mono solar module & 72 cell poly solar module, power range from 3W-300W
  • Custom solar cell and solar panel size

6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell

 6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell



 Price advantage: We have exclusive way to get tier 1 solar cells at most competitive price.





Specification

 3 Bus Bars 156*156 Mono Solar Cell

PHYSICAL CHARACTERISTICS



- Dimension 156 mm x 156 mm ± 0.5 mm

- Thickness 200 μm ± 30 μm

- Front 1.5 ± 0.1 mm busbar (silver)

- Silicon nitride antireflection coating

- Back 3.0 mm continuous soldering pads (silver)

- Back surface field (aluminum)

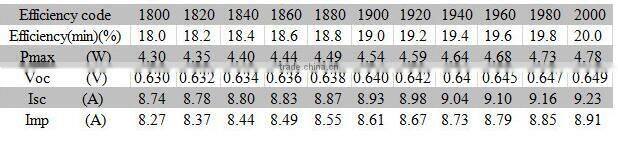

  Typical Electrical Characteristics
6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell

- Testing conditions: 1000 W/m2, AM 1.5, 25 °C, Tolerance: Efficiency ± 0.2% abs., Pmpp ±1.5% rel.

- Imin : at 0.5 V

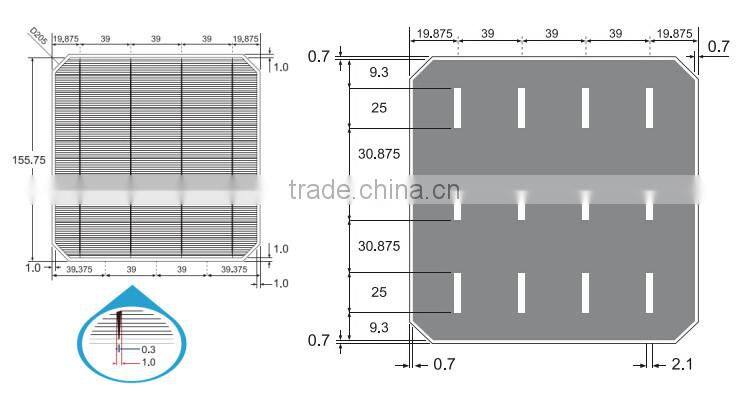

4 Bus Bars 156*156 Mono Solar Cell



PHYSICAL CHARACTERISTICS



Dimension:  156.75 mm x 156.75 mm ± 0.25 mm

Diagonal:       205mm ± 0.25 mm

Wafer Thickeness:  200um+30um

Front(-)                  Four 1.0 mm silver busbar

                               Silicon nitride anti-reflection coating



Back(+)                 Full surface aluminum back surface field
                               2.1mm(silver)  discontinuous soldering pads

 6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell

  Typical Electrical Characteristics



Efficiency

W(Pmpp)

V(Umpp)

A(Impp)

V(Uoc)

A(Isc)

20.90-21.00

5.06

0.557

9.007

0.653

9.688

20.80-20.90

5.04

0.556

9.062

0.652

9.683

20.70-20.80

5.02

0.554

9.055

0.651

9.684

20.60-20.70

4.99

0.552

9.033

0.651

9.672

20.50-20.60

4.97

0.550

9.002

0.650

9.673

20.40-20.50

4.94

0.548

9.012

0.649

9.674

20.30-20.40

4.92

0.546

9.009

0.649

9.655

20.20-20.30

4.89

0.543

9.012

0.648

9.634

20.10-20.20

4.87

0.541

8.998

0.648

9.617

20.00-20.10

4.85

0.540

8.977

0.647

9.600

  *Data under standard testing conditional (STC):1,000w/m2,AM1.5, 25°C , Pmax:Positive power tolerance.

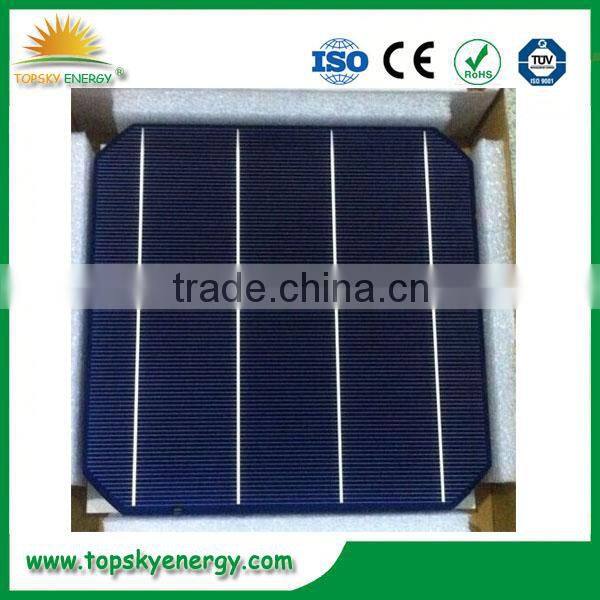

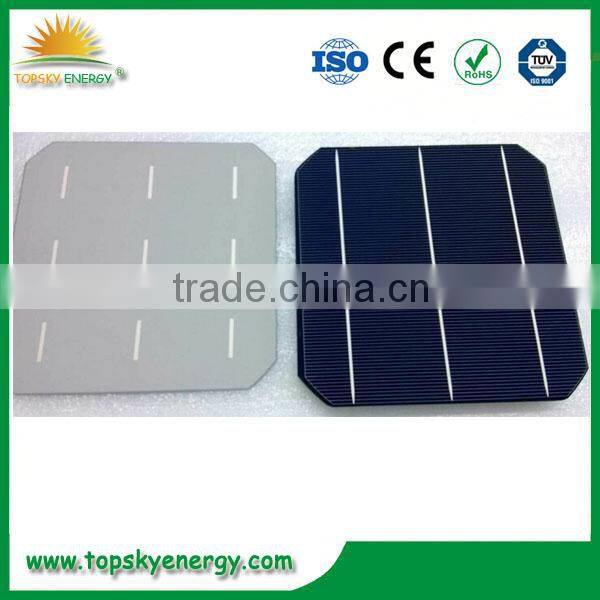

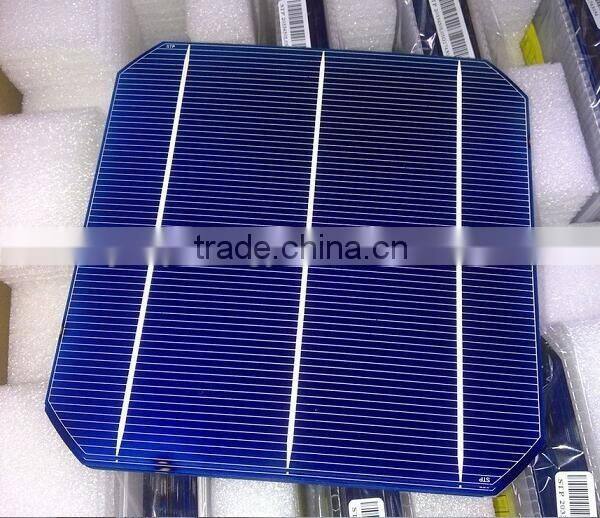

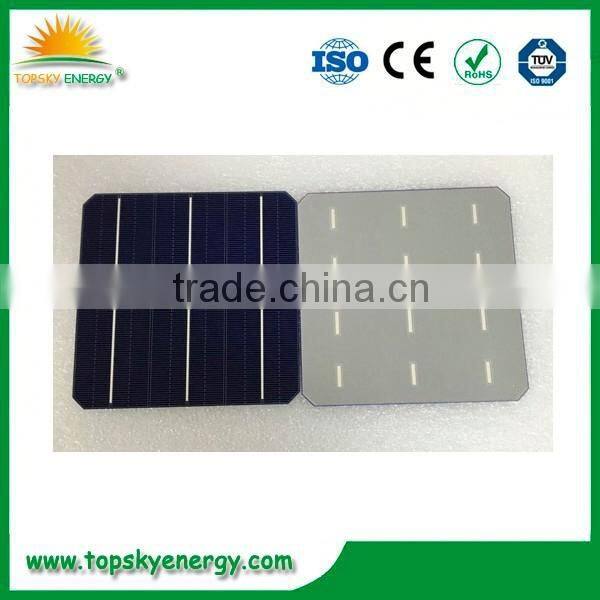

Pictures

 6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell

6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell

6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell

6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell



Trade Terms





1, Price Terms

EXW, FOB, CFR, CIF

2, Payment Terms

Telegraphic Transfer(T/T)/ Western Union

3, Shipping Terms

1, International Express: DHL, TNT, Fedex, UPS...

2, By Air

3, By Sea

4, As your specified forwarder.



3, Delivery terms

We would be arranging order once deposit arriving, Goods will be delivered once full amount received.

Lead time: 2- 5 days once payment receiving

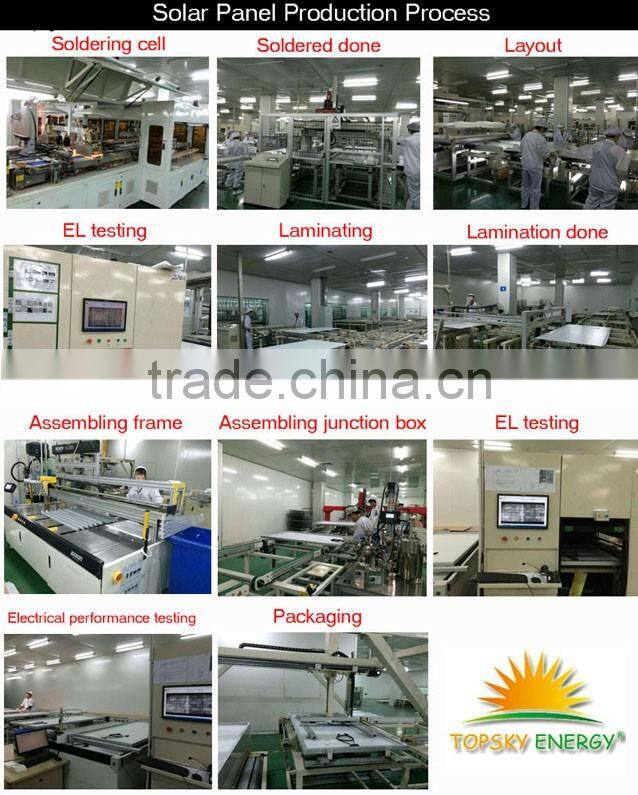

Production Flow

 6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell

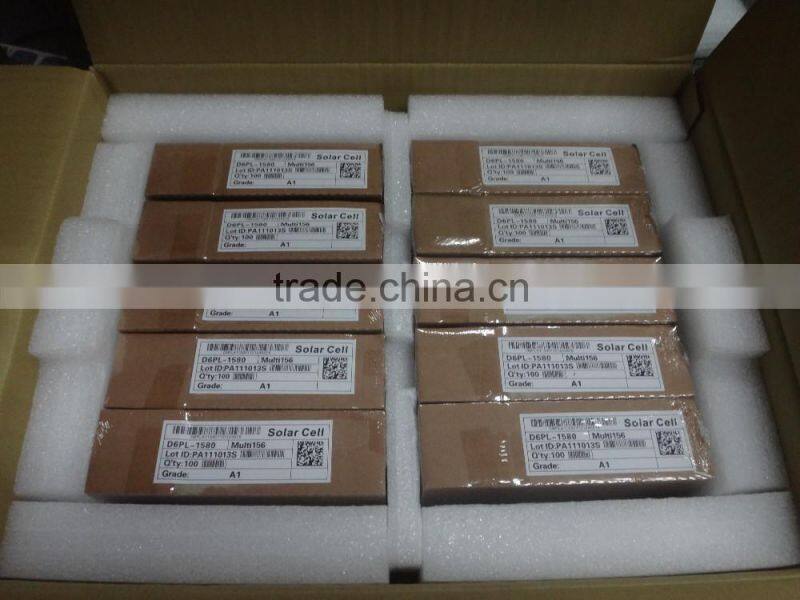

Packaging

 1, 100pcs into a box, 12 boxes into a carton, 24 cartons into a pallet.

 2, Can be customize



  6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell



Our Sales Team

 6'' mono solar cell, 19.80% Efficiency 4.72w NSP mono solar cell



Why do you choose us?



1, 18 years experience in PV Solar cell & module industry.



2,  Huge stock is available to ensure 3-5 days fast delivery.



3, 12 years warranty for products, 10 years warranty for 90% power production,  25 years warranty for 80% power produciton.
