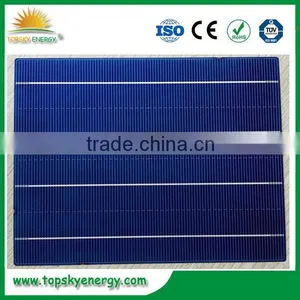

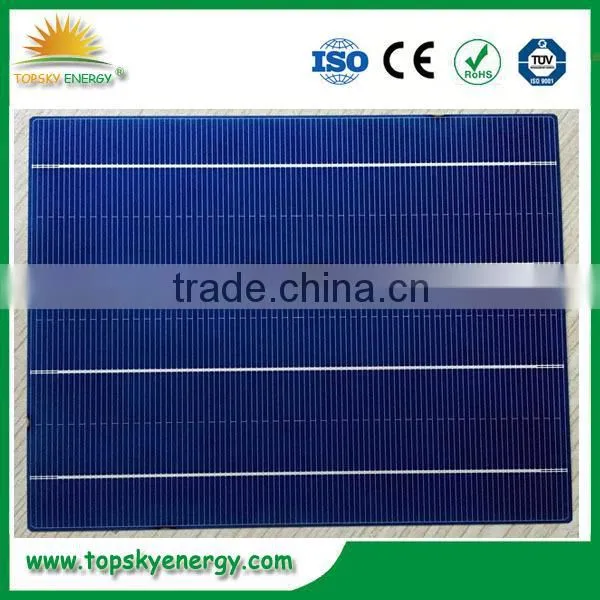

6" Poly crystalline silicon solar cell (4 Bus Bars) Sales of photovoltaic solar cell
FEATURES:
1. High efficiency and High power.
2. Long-term electrical stability.
3. Lowest price and Fastest delivery.
4. Good quality and good service.
5. Bulk supply
6. Good Warranty
7. Big Sale
8. Made in Taiwan/Germany etc for high quality
9. More than 35 years on the lifetime.
10. No anti-dumping tax.
PHYSICAL CHARACTERISTICS
Dimension 156mm×156mm±0.5mm
Thickness Wafer(Si):200±20μm and 180±20μm
Front (-) 1.2mm bus bars(silver),blue anti-reflection coating(silicon nitride)

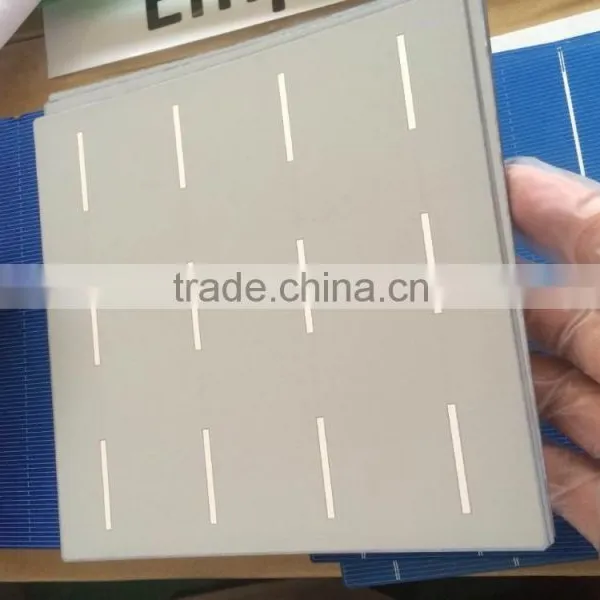

Back (+) 1.75mm wide segment soldering pads(silver),back surface field (aluminium)
ELECTRICAL CHARACTERISTICS
Effciency(%) |
Pmax(W) |
Impp(A) |
Vmpp(V) |
Isc(A) |
Voc(V) |
17.4-17.5 |
4.234 |
8.231 |
0.517 |
8.759 |
0.622 |
17.5-17.6 |
4.259 |
8.243 |
0.519 |
8.769 |
0.623 |
17.6-17.7 |
4.283 |
8.256 |
0.521 |
8.779 |
0.625 |
17.7-17.8 |
4.307 |
8.268 |
0.523 |
8.788 |
0.626 |
17.8-17.9 |
4.332 |
8.281 |
0.525 |
8.798 |
0.627 |
17.9-18.0 |
4.356 |
8.293 |
0.527 |
8.808 |
0.629 |
18.0-18.1 |
4.405 |
8.318 |
0.531 |
8.827 |
0.632 |
18.1-18.2 |
4.429 |
8.331 |
0.533 |
8.837 |
0.633 |
18.2-18.3 |
4.453 |
8.344 |
0.535 |
8.847 |
0.634 |
18.3-18.4 |
4.478 |
8.356 |
0.537 |
8.856 |
0.636 |
18.4-18.5 |
4.502 |
8.369 |
0.539 |
8.866 |
0.637 |
* Data under standard testing conditions (STC): 1,000W/M, AM1.5, 25
* All figures bear ±3% of tolerance.
* The measurement of cell is calibrated by Fraunhofer ISE.
TYPICAL TEMPERATURE COEFFICIENTS
ef.%/K-0.333%/K
ef.%/K +0.049%//K
Pef.%/K-0.42%/K
PRODUCT DISPLAY
1. Items are only shiped after PAYMENT is received.
2. Usually our solar cells are 100 pieces per box, 12boxes per carton.
3. Please check out your ADDRESS carefully when processing order.
4. Please CONTACT us ASAP if you haven't received the parcel.
5.Shipping will be via EMS, DHL, Fedex, UPS etc
TOPSKY ENERGY(Hongkong)Limited is a high-tech Environmentally friendly enterprise,which was
established in 1998.
Under strict quality control system. Our products include:
- 125mm mono solar cell &156mm poly and mono solar cell
- 3W-300W mono-crystalline and poly-crystalline silicon solar panel
- 5W-50KW home-use or roof solar power system(on-grid&off-grid)
Which are widely exported to Europe,America, Africa, Asia and gain a higher reputation.We also offer
OEM,ODM,OBM service as per customer requirement and aim at making a greater contribution to the
usage of solar energy globally.
Topsky Energy is also specials collector for tier 1 solar cells, including Solar World, NSP , Gintech , Motech ,Q-cells etc...
