Home > Lights & Lighting > LED Interior Lighting > LED High Bay Light > TIWIN 250W 100-240V 100 Degree Cool White High Lumen 25500lm Waterproof LED Highbay IP65 Light
TIWIN 250W 100-240V 100 Degree Cool White High Lumen 25500lm Waterproof LED Highbay IP65 Light
Negotiable
MOQ: 1 Carton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
24
Warranty(Years):
2
Input Voltage(V):
AC100-240V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TIWIN 180W 100 Degree Cool White 17500lm Waterproof LED Highbay IP65NegotiableMOQ: 1 Carton -
TIWIN 180W 65 Degree Cool White 17500lm Waterproof LED High Bay IP65NegotiableMOQ: 1 Carton
-
TIWIN 120W 65 Degree Cool White 17500lm Waterproof LED Highbay IP65NegotiableMOQ: 1 Carton
-
TIWIN 120W 100 Degree Cool White 17500lm Waterproof LED Highbay IP65NegotiableMOQ: 1 Carton
-
TIWIN 120W/180W/250W Waterproof LED HighbayNegotiableMOQ: 1 Carton
LED Light Source
24
Warranty(Years)
2
Input Voltage(V)
AC100-240V
Lamp Power(W)
250
Lamp Luminous Flux(lm)
25500
Lamp Luminous Efficiency(lm/w)
90
Color Temperature(CCT)
Cool White
Working Temperature(℃)
-20, 40
Working Lifetime(Hour)
40000
Lamp Body Material
Aluminum
IP Rating
IP65
Certification
CCC
Place of Origin
Jiangsu, China
Brand Name
TIWIN
Model Number
BYMD3008A1U-S5CWSG3T102
Product Description
TIWIN 250W 100 degree cool white 25500lm waterproof LED highbay IP65
| Features: | ||
| unique flat design, flexible installation use high thermal conductivity of aluminum alloy material, excellent thermal performance IP65, dust and water resistance AC100V-240V wide voltage input, constant current drive, stable light and color temperature Warranty: 2 years | ||
| Part No. | Description | |
| 486*190mm, 120 Watt, 100-240VAC,Ra≥70,IP65, ≥30000H, 2 years warranty | ||
| BYMD-65°-120W | BYMD3004A1U-S5CWSG3T101 | 120W,12pcs LUXEON , 5310-6020K, 11500lm, IP65,65°,100-240VAC. |
| BYMD-100°-120W | BYMD3004A1U-S5CWSG3T102 | 120W,12pcs LUXEON , 5310-6020K, 11500lm, IP65,100°,100-240VAC. |
| 486*190mm, 180 Watt, 100-240VAC,Ra≥70,IP65, ≥30000H, 2 years warranty | ||
| BYMD-65°-180W | BYMD3006A1U-S5CWSG3T101 | 180W,18pcs LUXEON , 5310-6020K, 17500lm, IP65,65°,100-240VAC. |
| BYMD-100°-180W | BYMD3006A1U-S5CWSG3T102 | 180W,18pcs LUXEON , 5310-6020K, 17500lm, IP65,100°,100-240VAC. |
| 486*190mm, 250 Watt, 100-240VAC,Ra≥70,IP65, ≥30000H, 2 years warranty | ||
| BYMD-65°-250W | BYMD3008A1U-S5CWSG3T101 | 250W,24pcs LUXEON , 5310-6020K, 25500lm, IP65,65°,100-240VAC. |
| BYMD-100°-250W | BYMD3008A1U-S5CWSG3T102 | 250W,24pcs LUXEON , 5310-6020K, 25500lm, IP65,100°,100-240VAC. |
Spcification:
TIWIN 250W 100° cool white 25500lm waterproof LED highbay IP65
| JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD. | ||||||
| Document ID | Product Specification | Version | 1.01 | ||||
| Compile Date | Page | 2014/1/1 | |||||
| Photo | | Item | |||||
| Name | BYMD Highbay | ||||||
| Product specification | 100-240VAC 50-60Hz 120W/180W/250W | ||||||
| Size | 486*190mm | ||||||
| Installation method | Pendant Mounted | ||||||
| dimensions | | ambient temperature | -10~40C@20~85% | ||||
| Angle adjustment | No | ||||||
| Control method | No | ||||||
| IP grade | IP65 | ||||||
| Rated lifespan | ≥30000H | ||||||
| standard | GB7000 | ||||||
| material | aluminum alloy | ||||||
| Radiator component | aluminum alloy | ||||||
| Ottica | |||||||
| Installations component | install ring | ||||||
| color | Silver gray | ||||||
| CPD |
| Beam angle | 65°/100° | ||||
| Luminous flux | 11500±80lm/1200±120lm/25500±160lm | ||||||
| CCT | 5500±500K | ||||||
| CRI | Ra≥70 | ||||||
| Brand | |||||||
| Lamp type | |||||||
| specification | 12/18/24pcs 84 | ||||||
| specification | |||||||
| Inner box size | |||||||
| Carton size | |||||||
| weight(Kg) | N.W =8/11/13kg | ||||||
| packing | 1pcs per carton | ||||||

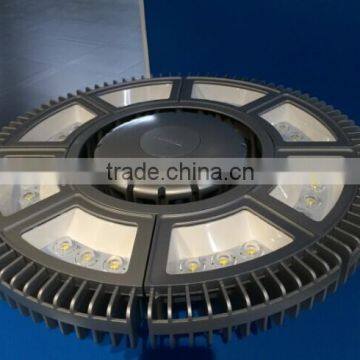

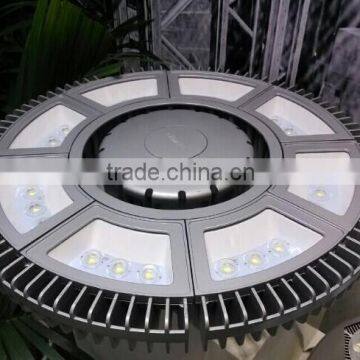

Picture:
TIWIN 250W 100 degree cool white 25500lm waterproof LED highbay IP65
