TIWIN 180W 65 Degree Cool White 17500lm Waterproof LED High Bay IP65

Name: TIWIN 180W 65 Degree Cool White 17500lm Waterproof LED High Bay IP65
Brand: TIWIN
SKU: 123729935
Availability: InStock

Negotiable MOQ: 1 Carton (Price negotiable depending on order volume and customization)

Key Specifications

LED Light Source:

Warranty(Years):

Input Voltage(V):

AC100-240V

Jiangsu Tianying Opto-Electronics Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source 24

Warranty(Years) 2

Input Voltage(V) AC100-240V

Lamp Power(W) 180

Lamp Luminous Flux(lm) 17500

Lamp Luminous Efficiency(lm/w) 90

Color Temperature(CCT) Cool White

Working Temperature(℃) -20, 40

Working Lifetime(Hour) 40000

Lamp Body Material Aluminum

IP Rating IP65

Certification CCC

Place of Origin Jiangsu, China

Brand Name TIWIN

Model Number BYMD3006A1U-S5CWSG3T101

Product Description

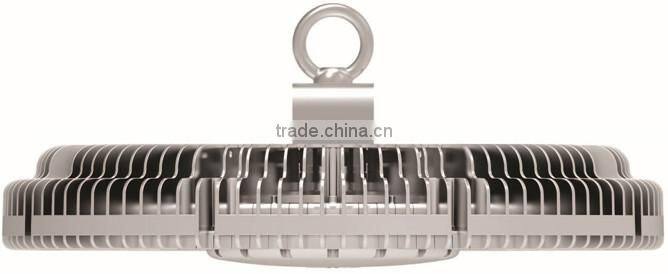

TIWIN 180W 65 degree cool white 17500lm waterproof LED high bay IP65

IP rank:IP65

CCT: 5310-6020K

Beam angle: 65°/100°

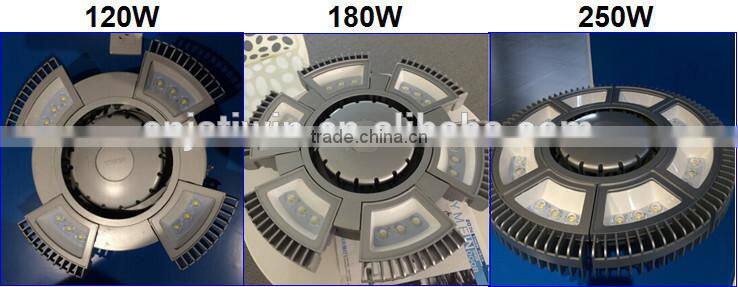

Watt: 120W/180W/250W

Lumen: 11500lm/17500lm/25500lm

Features:
unique flat design, flexible installation use high thermal conductivity of aluminum alloy material, excellent thermal performance IP65, dust and water resistance AC100V-240V wide voltage input, constant current drive, stable light and color temperature Warranty: 2 years
Part No.		Description
Part No.		Description
486*190mm, 120 Watt, 100-240VAC,Ra≥70,IP65, ≥30000H, 2 years warranty
BYMD-65°-120W	BYMD3004A1U-S5CWSG3T101	120W,12pcs LUXEON , 5310-6020K, 11500lm, IP65,65°,100-240VAC.
BYMD-100°-120W	BYMD3004A1U-S5CWSG3T102	120W,12pcs LUXEON , 5310-6020K, 11500lm, IP65,100°,100-240VAC.
486*190mm, 180 Watt, 100-240VAC,Ra≥70,IP65, ≥30000H, 2 years warranty
BYMD-65°-180W	BYMD3006A1U-S5CWSG3T101	180W,18pcs LUXEON , 5310-6020K, 17500lm, IP65,65°,100-240VAC.
BYMD-100°-180W	BYMD3006A1U-S5CWSG3T102	180W,18pcs LUXEON , 5310-6020K, 17500lm, IP65,100°,100-240VAC.
486*190mm, 250 Watt, 100-240VAC,Ra≥70,IP65, ≥30000H, 2 years warranty
BYMD-65°-250W	BYMD3008A1U-S5CWSG3T101	250W,24pcs LUXEON , 5310-6020K, 25500lm, IP65,65°,100-240VAC.
BYMD-100°-250W	BYMD3008A1U-S5CWSG3T102	250W,24pcs LUXEON , 5310-6020K, 25500lm, IP65,100°,100-240VAC.

Spcification:

TIWIN 180W 65° cool white 17500lm waterproof LED highbay IP65

	JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD.

Document ID		Product Specification			Version	1.01
Compile Date					Page	2014/1/1
Photo			Item
			Name	BYMD Highbay
			Product specification	100-240VAC 50-60Hz 120W/180W/250W

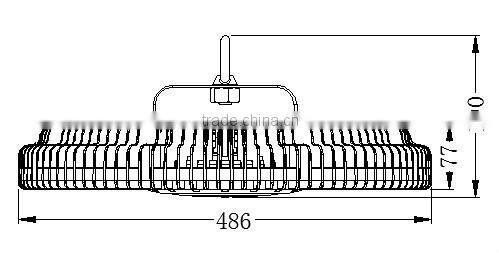

			Size	486*190mm
			Installation method	Pendant Mounted
dimensions			ambient temperature	-10~40C@20~85%
			Angle adjustment	No
			Control method	No
			IP grade	IP65
			Rated lifespan	≥30000H
			standard	GB7000
			material	aluminum alloy
			Radiator component	aluminum alloy
			Ottica

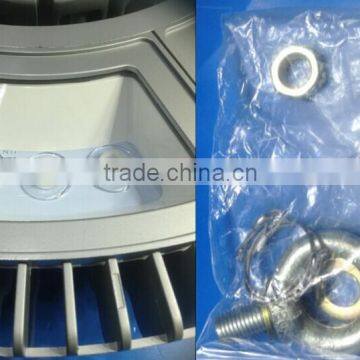

			Installations component	install ring
			color	Silver gray
CPD			Beam angle	65°/100°
			Luminous flux	11500±80lm/1200±120lm/25500±160lm
			CCT	5500±500K
			CRI	Ra≥70
			Brand
			Lamp type
			specification	12/18/24pcs 84
			specification
			Inner box size
			Carton size
			weight(Kg)	N.W =8/11/13kg
			packing	1pcs per carton
