Home > Lights & Lighting > LED Interior Lighting > LED High Bay Light > TIWIN Modular Design 100-240V 250W IP65 Water Proof Led High Bay Light

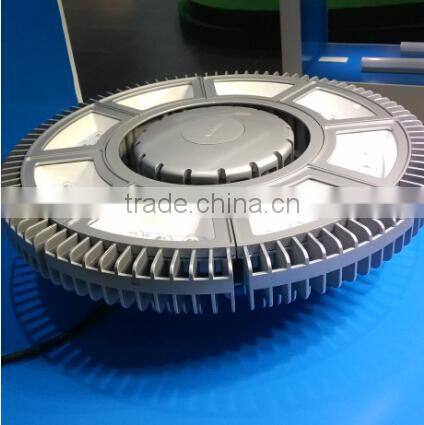

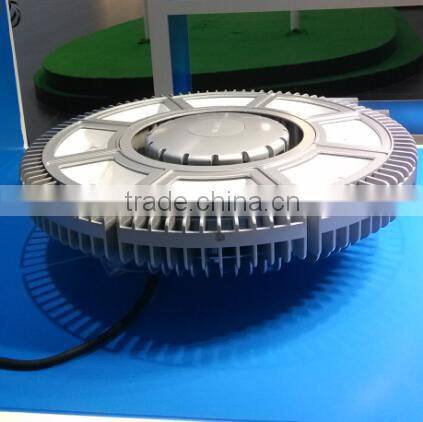

TIWIN Modular Design 100-240V 250W IP65 Water Proof Led High Bay Light

Jiangsu Tianying Opto-Electronics Technology Company Limited
TIWIN Modular Design 100-240V 250W IP65 Water Proof Led High Bay Light thumbnail-1
TIWIN Modular Design 100-240V 250W IP65 Water Proof Led High Bay Light thumbnail-2
TIWIN Modular Design 100-240V 250W IP65 Water Proof Led High Bay Light thumbnail-3
TIWIN Modular Design 100-240V 250W IP65 Water Proof Led High Bay Light photo-1
TIWIN Modular Design 100-240V 250W IP65 Water Proof Led High Bay Light photo-2
TIWIN Modular Design 100-240V 250W IP65 Water Proof Led High Bay Light photo-3
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
LUMILEDS
Warranty(Years):
3
Input Voltage(V):
100-240
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LUMILEDS
Warranty(Years) 3
Input Voltage(V) 100-240
Lamp Power(W) 250
Lamp Luminous Flux(lm) 25500
Lamp Luminous Efficiency(lm/w) 102
Color Temperature(CCT) Cool White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 30000
Lamp Body Material Aluminum Alloy
IP Rating IP65
Certification CCC, CE
Place of Origin Jiangsu, China
Brand Name TIWIN
Model Number BYMD

Skyline-boat series TIWIN Modular design 250W  LED high bay light



Modular design, flat shape, professional optical design, low glare, high luminous efficiency

Applications: workshop, factory, warehouse, highway toll stations, gas stations, supermarkets, exhibition hall, gymnasium etc.

3-years warranty



Features

Flat design, unique, more flexible installation

Professional thermal design cooling structure, the use of high thermal conductivity of aluminum alloy material, excellent thermal performance

IP65, dust and water resistance

AC100V-240V wide voltage input, constant current drive, stable light and color temperature

120/180/250W, 65/100 ° light distribution



BYMD serie

Working environment

Installation

Protection grade

Rated life

Beam angle

Color

material

LED Brand





-20~+40℃

chain hangs/ boom/ ceiling

IP65

>30000h

65°/100°

Silver gray

Die casting aluminum

Lumileds



Specifications

MODEL#

Dimensions

Rated power

Luminous flux

Color

temperature



CRI

Power factor

Electrical protection

Weight

Package number

BYMD3008A1U

φ486*190mm

250W

25500Lm

5700K



>70

>0.95

Class I

13KG

1PCS/box

BYMD3006A1U

φ486*190mm

180W

17500Lm

5700K



>70

>0.95

Class I

11KG

1PCS/box

BYMD3004A1U

φ486*190mm

120W

11500Lm

5700K



>70

>0.95

Class I

8KG

1PCS/box

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay lightTIWIN Modular design 100-240V 250W IP65 Water proof led High bay lightTIWIN Modular design 100-240V 250W IP65 Water proof led High bay light TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light

Applications

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light   TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light





Trade Shows

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light



About TIWIN

I. Introduction

TIWIN is a subsidiary company of public-listed TIANYING GROUP (China TIWIN 000035).
TIWIN located in TIWIN Environmental-Protection Industry Park, Hai’an, Nantong City, Jiangsu Province, covers an area of 600 acres ( 400,000 square meters ).  We has over 500 staffs, the R&D team includes more than 100 products development engineers. In 2011, we set up the Marketing and R&D Center in Caohejing Hi-tech Park, Shanghai.
TIWIN focused on design, manufacture, sale and service in LED lighting business.

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light

II. Sample rooms

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light

 IV. Production

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light

V. Warehouse

TIWIN Modular design 100-240V 250W IP65 Water proof led High bay light





Advantages



1)Factory direct price
2)High power&quality SMD LED&most part of our products are CREE/Bridgelux LED
3)All kinds of products are CE&Rohs certified;Most products with TUV, UL, SAA, EMC, GS,ETL,Energy Star certifications
4)Product&Package with Unique design
5) Own professional and experiency R & D staffs, years of experience

6) ISO9001:2008 quality control system
