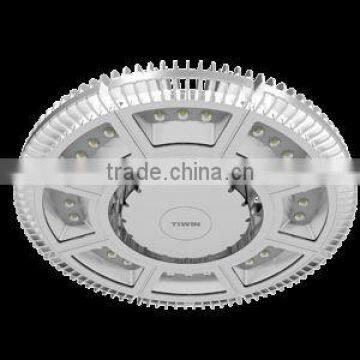

TIWIN Modular design cool white LED 180W High bay lamp

Specifications

LED 180W High bay lamp
Flat design, unique, more flexible installation,
IP65,
AC100V-240V wide voltage input

Skyline-boat series TIWIN Modular design LED 180W High bay lamp



Modular design, flat shape, professional optical design, low glare, high luminous efficiency

Applications: workshop, factory, warehouse, highway toll stations, gas stations, supermarkets, exhibition hall, gymnasium etc.

3-years warranty



Features

Flat design, unique, more flexible installation

Professional thermal design cooling structure, the use of high thermal conductivity of aluminum alloy material, excellent thermal performance

IP65, dust and water resistance

AC100V-240V wide voltage input, constant current drive, stable light and color temperature

120/180/250W, 65/100 ° light distribution



BYMD serie	Working environment	Installation	Protection grade	Rated life	Beam angle	Color	material	LED Brand
	-20~+40℃	chain hangs/ boom/ ceiling	IP65	>30000h	65°/100°	Silver gray	Die casting aluminum	Lumileds

Specifications

MODEL#	Dimensions	Rated power	Luminous flux	Color temperature	CRI	Power factor	Electrical protection	Weight	Package number
BYMD3008A1U	φ486*190mm	250W	25500Lm	5700K	>70	>0.95	Class I	13KG	1PCS/box
BYMD3006A1U	φ486*190mm	180W	17500Lm	5700K	>70	>0.95	Class I	11KG	1PCS/box
BYMD3004A1U	φ486*190mm	120W	11500Lm	5700K	>70	>0.95	Class I	8KG	1PCS/box



Applications
